Change a Dimensioned Shape (dialog box)

You can change the basic shape type and shape options in this dialog box.
You can call up this dialog box by the button in the upper left of the Configuration tab of the backstage view.
PrivateTemplate_ChangeButton_Configuration

Make the following settings in this dialog box:

Detailed Column on the Left

  • Select the basic shape type.

  • ShoulderGoreShapeTypeShoulder Gore

  • FrenchShoulderShapeType64French Shoulder

  • SaddleShoulderShapeTypeSaddle Shoulder

  • RaglanShapeTypeRaglan

  • TopShapeTypeTop

  • PullunderSlip-overShapeTypeSlipover

  • TrousersShapeTypeTrousers

  • PrivateShapeTypePrivate

Second Detailed Column

Options for Straps

TopShapeType Top

  • With Straps

  • Without Straps

List Box White

  • Crew Neck
    RoundNeckOptionFrontDimension
    Stepping kind in the neckline
    JCurveLineAttribJ-curve

  • V-neck
    V-NeckOptionFrontDimension
    Stepping kind in the neckline:
    AngularInsideLineAttribAngled to Inside

Shaped Waist

List Box White

  • Without Widening or Narrowing
    UprightWaistOptionFrontDimension
    Stepping kind up to the armhole narrowing:
    StraightLineAttribStraight Line

  • Shaped Waist
    ShapedWaistOptionFrontDimension
    Three-step stepping kind up to the armhole narrowing:

    • AngularInsideLineAttrib Narrowing, Angled to Inside

    • AngularInsideLineAttrib without, Angled to Inside

    • AngularInsideLineAttrib Widening, Angled to Inside

  • Only Widening or Narrowing
    For example widening only:
    WideningOnlyWaistOptionFrontDimension
    Stepping kind up to the armhole narrowing:
    AngularInsideLineAttribAngled to Inside

Dimensioning of the Armhole

List Box White

  • Upright to the Shoulder

  • Diagonally up to the Shoulder

  • Diagonally up to Body Center

  • Upright to Body Center

Options for Set-in Sleeve

ShoulderGoreShapeType Set-in Sleeve with Shoulder Gore

Shoulder

List Box White

  • Shoulder with Markings

  • Shoulder Gore

Neckline

List Box White

  • Crew Neck
    RoundNeckOptionFrontDimension
    Stepping kind in the neckline
    JCurveLineAttribJ-curve

  • V-neck
    V-NeckOptionFrontDimension
    Stepping kind in the neckline:
    AngularInsideLineAttribAngled to Inside

  • Crew Neck as Cardigan with opening at the center axis
    RoundNeckOptionFrontOpenDimension
    Stepping kind in the neckline
    JCurveLineAttribJ-curve

  • V-neck as Cardigan with opening at the center axis
    VNeckOptionFrontOpenDimension
    Stepping kind in the neckline:
    AngularInsideLineAttribAngled to Inside

  • Polo Collar

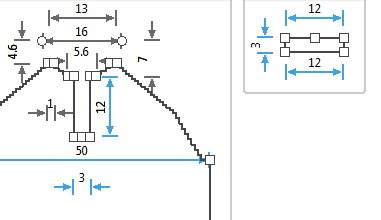

    PoloOptionFrontDimension
    Stepping kind of the placket height:
    StraightLineAttribStraight Line

  1. How to choose the Neckline Variants
  2. How to Change the Stepping of a Line

Shaped Waist

List Box White

  • Without Widening or Narrowing
    UprightWaistOptionFrontDimension
    Stepping kind up to the armhole narrowing:
    StraightLineAttribStraight Line

  • Shaped Waist
    ShapedWaistOptionFrontDimension
    Three-step stepping kind up to the armhole narrowing:

    • AngularInsideLineAttrib Narrowing, Angled to Inside

    • AngularInsideLineAttrib without, Angled to Inside

    • AngularInsideLineAttrib Widening, Angled to Inside

  • Only Widening or Narrowing
    For example widening only:
    WideningOnlyWaistOptionFrontDimension
    Stepping kind up to the armhole narrowing:
    AngularInsideLineAttribAngled to Inside

Dimensioning of the Armhole

List Box White

  • Upright to the Shoulder

  • Diagonally up to the Shoulder

  • Diagonally up to Body Center

  • Upright to Body Center

Dimensioning of the Sleeve Length

List Box White

  • Up to the Start of the Shoulder

  • Up to the End of the Shoulder

  • Up to Body Center

  • Inner Sleeve Length

Widening Above the Armhole Narrowing

  • CheckBoxOn Widening above the armhole narrowing at the front
    WidenAfterArmholeOptionFrontDimension

  • CheckBoxOn Widening above the armhole narrowing at the back
    WidenAfterArmholeOptionBackDimension

Options for Slipover

PullunderSlip-overShapeType Slipover

Shoulder

List Box White

  • Shoulder with Markings

  • Shoulder Gore

Neckline

List Box White

  • Crew Neck
    RoundNeckOptionFrontDimension
    Stepping kind in the neckline
    JCurveLineAttribJ-curve

  • V-neck
    V-NeckOptionFrontDimension
    Stepping kind in the neckline:
    AngularInsideLineAttribAngled to Inside

  • Crew Neck as Cardigan with opening at the center axis
    RoundNeckOptionFrontOpenDimension
    Stepping kind in the neckline
    JCurveLineAttribJ-curve

  • V-neck as Cardigan with opening at the center axis
    VNeckOptionFrontOpenDimension
    Stepping kind in the neckline:
    AngularInsideLineAttribAngled to Inside

  • Polo Collar
    PoloOptionFrontDimension
    Stepping kind of the placket height:
    StraightLineAttribStraight Line

  • Turtleneck Collar
    TurtleNeckOptionFrontDimension
    Stepping kind of the turtleneck collar:
    StraightLineAttribStraight Line

Shaped Waist

List Box White

  • Without Widening or Narrowing
    UprightWaistOptionFrontDimension
    Stepping kind up to the armhole narrowing:
    StraightLineAttribStraight Line

  • Shaped Waist
    ShapedWaistOptionFrontDimension
    Three-step stepping kind up to the armhole narrowing:

    • AngularInsideLineAttrib Narrowing, Angled to Inside

    • AngularInsideLineAttrib without, Angled to Inside

    • AngularInsideLineAttrib Widening, Angled to Inside

  • Only Widening or Narrowing
    For example widening only:
    WideningOnlyWaistOptionFrontDimension
    Stepping kind up to the armhole narrowing:
    AngularInsideLineAttribAngled to Inside

Dimensioning of the Armhole

List Box White

  • Upright to the Shoulder

  • Diagonally up to the Shoulder

  • Diagonally up to Body Center

  • Upright to Body Center

RaglanShapeType Raglan

Neckline

List Box White

  • Crew Neck
    RoundNeckOptionFrontDimension
    Stepping kind in the neckline
    JCurveLineAttribJ-curve

  • V-neck
    V-NeckOptionFrontDimension
    Stepping kind in the neckline:
    AngularInsideLineAttribAngled to Inside

  • Crew Neck as Cardigan with opening at the center axis
    RoundNeckOptionFrontOpenDimension
    Stepping kind in the neckline
    JCurveLineAttribJ-curve

  • V-neck as Cardigan with opening at the center axis
    VNeckOptionFrontOpenDimension
    Stepping kind in the neckline:
    AngularInsideLineAttribAngled to Inside

  • Polo Collar
    PoloOptionFrontDimension
    Stepping kind of the placket height:
    StraightLineAttribStraight Line

  1. How to choose the Neckline Variants
  2. How to Change the Stepping of a Line

Shaped Waist

List Box White

  • Without Widening or Narrowing
    UprightWaistOptionFrontDimension
    Stepping kind up to the armhole narrowing:
    StraightLineAttribStraight Line

  • Shaped Waist
    ShapedWaistOptionFrontDimension
    Three-step stepping kind up to the armhole narrowing:

    • AngularInsideLineAttrib Narrowing, Angled to Inside

    • AngularInsideLineAttrib without, Angled to Inside

    • AngularInsideLineAttrib Widening, Angled to Inside

  • Only Widening or Narrowing
    For example widening only:
    WideningOnlyWaistOptionFrontDimension
    Stepping kind up to the armhole narrowing:
    AngularInsideLineAttribAngled to Inside

Dimensioning of the Armhole

List Box White

  • Upright to the Shoulder

  • Diagonally up to the Shoulder

  • Diagonally up to Body Center

  • Upright to Body Center

Dimensioning of the Sleeve Length

List Box White

  • Up to the Start of the Shoulder

  • Up to the End of the Shoulder

  • Up to Body Center

  • Inner Sleeve Length

Options for French Shoulder

FrenchShoulderShapeType64 Set-in Sleeve with French Shoulder

Neckline

List Box White

  • Crew Neck
    RoundNeckOptionFrontDimension
    Stepping kind in the neckline
    JCurveLineAttribJ-curve

  • V-neck
    V-NeckOptionFrontDimension
    Stepping kind in the neckline:
    AngularInsideLineAttribAngled to Inside

  • Crew Neck as Cardigan with opening at the center axis
    RoundNeckOptionFrontOpenDimension
    Stepping kind in the neckline
    JCurveLineAttribJ-curve

  • V-neck as Cardigan with opening at the center axis
    VNeckOptionFrontOpenDimension
    Stepping kind in the neckline:
    AngularInsideLineAttribAngled to Inside

  • Polo Collar
    PoloOptionFrontDimension
    Stepping kind of the placket height:
    StraightLineAttribStraight Line

  • Turtleneck Collar
    TurtleNeckOptionFrontDimension
    Stepping kind of the turtleneck collar:
    StraightLineAttribStraight Line

Shaped Waist

List Box White

  • Without Widening or Narrowing
    UprightWaistOptionFrontDimension
    Stepping kind up to the armhole narrowing:
    StraightLineAttribStraight Line

  • Shaped Waist
    ShapedWaistOptionFrontDimension
    Three-step stepping kind up to the armhole narrowing:

    • AngularInsideLineAttrib Narrowing, Angled to Inside

    • AngularInsideLineAttrib without, Angled to Inside

    • AngularInsideLineAttrib Widening, Angled to Inside

  • Only Widening or Narrowing
    For example widening only:
    WideningOnlyWaistOptionFrontDimension
    Stepping kind up to the armhole narrowing:
    AngularInsideLineAttribAngled to Inside

Dimensioning of the Armhole

List Box White

  • Upright to the Shoulder

  • Diagonally up to the Shoulder

  • Diagonally up to Body Center

  • Upright to Body Center

Dimensioning of the Sleeve Length

List Box White

  • Up to the Start of the Shoulder

  • Up to the End of the Shoulder

  • Up to Body Center

  • Inner Sleeve Length

Options for Saddle Shoulder

SaddleShoulderShapeType Saddle Shoulder

Neckline

List Box White

  • Crew Neck
    RoundNeckOptionFrontDimension
    Stepping kind in the neckline
    JCurveLineAttribJ-curve

  • V-neck
    V-NeckOptionFrontDimension
    Stepping kind in the neckline:
    AngularInsideLineAttribAngled to Inside

  • Crew Neck as Cardigan with opening at the center axis
    RoundNeckOptionFrontOpenDimension
    Stepping kind in the neckline
    JCurveLineAttribJ-curve

  • V-neck as Cardigan with opening at the center axis
    VNeckOptionFrontOpenDimension
    Stepping kind in the neckline:
    AngularInsideLineAttribAngled to Inside

  • Polo Collar
    PoloOptionFrontDimension
    Stepping kind of the placket height:
    StraightLineAttribStraight Line

  1. How to choose the Neckline Variants
  2. How to Change the Stepping of a Line

Shaped Waist

List Box White

  • Without Widening or Narrowing
    UprightWaistOptionFrontDimension
    Stepping kind up to the armhole narrowing:
    StraightLineAttribStraight Line

  • Shaped Waist
    ShapedWaistOptionFrontDimension
    Three-step stepping kind up to the armhole narrowing:

    • AngularInsideLineAttrib Narrowing, Angled to Inside

    • AngularInsideLineAttrib without, Angled to Inside

    • AngularInsideLineAttrib Widening, Angled to Inside

  • Only Widening or Narrowing
    For example widening only:
    WideningOnlyWaistOptionFrontDimension
    Stepping kind up to the armhole narrowing:
    AngularInsideLineAttribAngled to Inside

Dimensioning of the Armhole

List Box White

  • Upright to the Shoulder

  • Diagonally up to the Shoulder

  • Diagonally up to Body Center

  • Upright to Body Center

Dimensioning of the Sleeve Length

List Box White

  • Up to the Start of the Shoulder

  • Up to the End of the Shoulder

  • Up to Body Center

  • Inner Sleeve Length
