Stitch Density

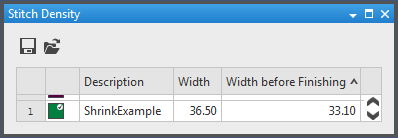

Select the Stitch Density icon in the Parameter ribbon to open the Stitch Density tool window.

The columns of the Stitch Density table:

Index Color
Click the color to change the color value.
Colors
No.
Running numbering
Description
Enter a note on its use.
Width
Quantity of wales
Height by Rows
Quantity of stitch rows of the final fabric
Width of Raw Fabric
Quantity of wales before the finishing processes
Height by Rows of Raw Fabric
Quantity of stitch rows before the finishing processes

With hand knitting the height will be displayed in courses :

Height by Courses of Raw Fabric
Quantity of knitted courses before the finishing processes
Height by Courses
Quantity of knitted courses of the final fabric

Use the stitch density values before finishing of the raw fabric in order to check the fabric pieces directly after the knitting process.


Raw Fabric	Final Fabric
Before Finishing	After Finishing
Raw values without shrinkage	Values after shrinkage
Lower Stitch Density	Higher Stitch Density
Longer in Measure	Clothing size with little variance due to the even-numbered quantity of stitches

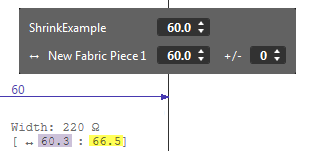

E.g. with 10% shrinkage and clothing length of 60 cm:
Width: 40,1 stitches/10 cm Height: 45,6 stitches/10 cm Calculated Width: 66.5 cm	Width: 36.5 stitches/10cm Height: 41.5 stitches/10cm Calculated Width: 60.cm Calculated Stitches: 220

With these buttons you can save and load your own stitch densities:

How to Proceed:
