How to Insert Colored Stripes
-
Prepare the color sequence in the Knitting Mode Table.
-
Via a quantity of rows you define the height of the colored stripes equally for all sizes.
How to Create Colored Stripes with Fixed Height -
For a graded height you select a dimension.
How to Create Colored Stripes with Dimensioned Height -
Assign knitting mode areas with colored stripe
-

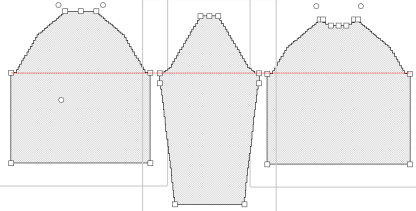

The synchronization of the colored stripes between the fabric pieces are achieved with reference points.
For example with the startpoints for the armhole:
