Add New Sizes

Add the sizes S and L.

  1. Open the context menu in the M column title of the Dimensions table.
    ColumnM_Context
  2. Select Add New Sizes....
    • The Add New Sizes dialog box appears.
  3. Deactivate the check box for XS in the Sizes group box
    deactivateXL
  4. Activate the CheckBoxOnGrading check box.
  5. In the Resizing group box select the RadioOnAbsolutely (difference from the table) option button.
  6. Confirm with Button OK.
  • The added sizes S, L and XL appear in the Measure Table with the calculated measures if the display option ShapeSizeView is activated.

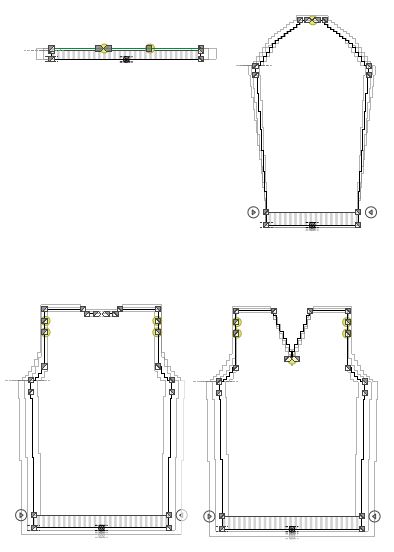

  • With the ShapeSizeView status icon activated all the sizes appear in the dimensioning view.
    AllSizes
