How to Invert a Dimensioning
The Flip Dimensioning function is only available, if no other dimensioning sets one of the points fix.
  • The dimensioned shape is opened in the Dimensioning View FormularShapeView.
  • The startpoint of the shoulder and the point of sleeve departure are dimensioned vertically to each other.
    The vertical position of the shape points to each other is upside-down.
    Error state: Crossing shape lines!
    SwapDimensioningHowToIni

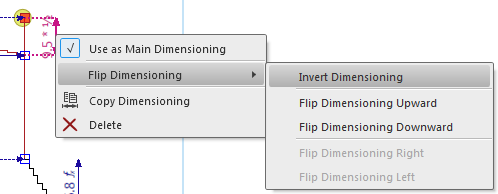

  1. Open the context menu for the desired dimensioning.
    InvertDimensioningContextMenu
  2. Select Flip DimensioningSubMenuArrowInvert Dimensioning.
  • The startpoint of the shoulder is positioned above the point of sleeve departure.
    SwapDimensioningHowToResult
You can invert a horizontal dimensioning the same way.
The Flip Dimensioning function is only available, if no other dimensioning sets one of the points fix.
