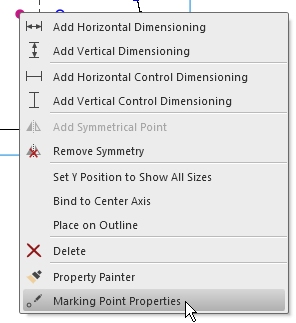

Marking Point Properties

•
  Back
  Go to the previous marking point.

•
  Next
  Go to the next marking point.

•
  Opposite
  Jump to the opposite, mirrored marking point.

Properties of a Marking Point with Knitting Element:

Knitting Element
A knitting element is allocated to the marking point.

• Knitting Element

  Open the picklist and select the knitting element for the marking.
  Inserts the reference to a M1plus module or to a M1plus module group.

• Inserting Direction

  Open the picklist and select the desired orientation of the knitting element.

• to the Left
  Insert a knitting element at the left side of a marking point.

• to the Right
  Insert a knitting element at the right side of a marking point.

Properties of a Marking Point with Motif:

Motif
A picture or a graphic is allocated to the marking point

•
  Select and import the file

•
  Define an anchor point for the motif.

• The size of the graphic is displayed by stitches.
  Each pixel corresponds to a stitch

How to Insert Markings for Buttons

The properties of a line-bound marking point:

• Knitting Element

  Open the picklist and select the knitting element for the marking.
  Inserts the reference to a M1plus module or to a M1plus module group.

• Anchor Point
  Connect the marking point to the startpoint or endpoint of the line.

• Startpoint
  Marking point is connected to the startpoint of the line.

• Endpoint
  Marking point is connected to the endpoint of the line.

• X offset by stitches
  Define horizontal distance to the anchor point.

• Y offset by stitches
  Define vertical distance to the anchor point.
