Combine Fabric Pieces (dialog box)

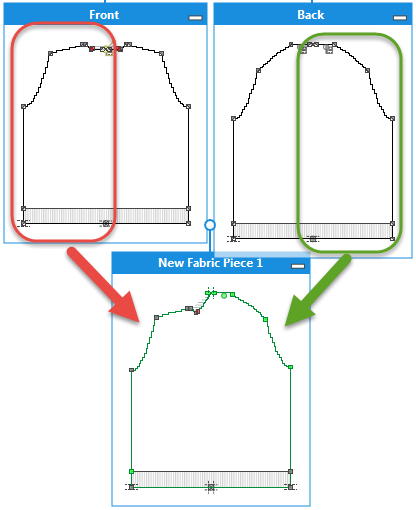

You can combine the left and right polyline of two fabric pieces to a common new one via this dialog box.
DimensioningView_CombinedFabricPiece
Call-up the Combine Fabric Pieces dialog box by the Combine Fabric Pieces... context menu of the title bar of the fabric piece.
F1-Help_Philosophy_small Context menu Single Shape View

Elements in the dialog box:

  • Name TextBoxBlack
    Enter a name for the new, combined fabric piece.

  • Fabric Piece as Left Polyline
    List Box White
    Select a fabric piece for the left polyline.
    The fabric piece on which you called up the context menu appears in the edit box by default.

  • Fabric Piece as Right Polyline
    List Box White
    Select a fabric piece for the right polyline.

  • OK
    Save entries and close the dialog box.

  • Cancel
    Close the dialog box without saving.
