Binding-off CA for Stamping-out k&w

In general:

• The binding-off CA contains only one shape part color
  The standard k&w article must be finalized by one shape part (collar)
• All empty rows of the CA must have a blue reference row.

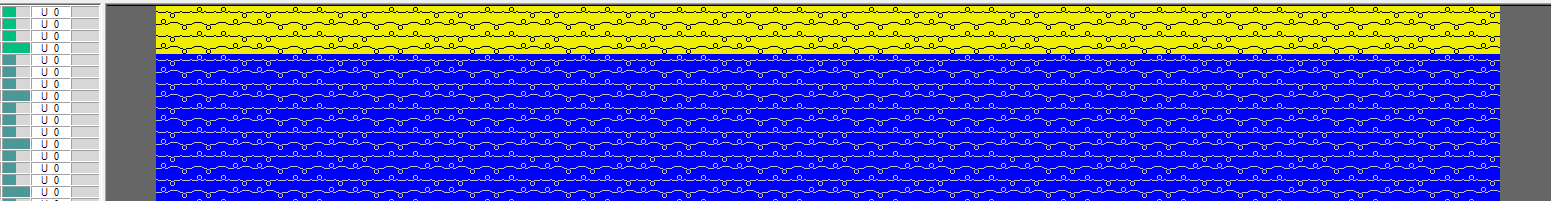

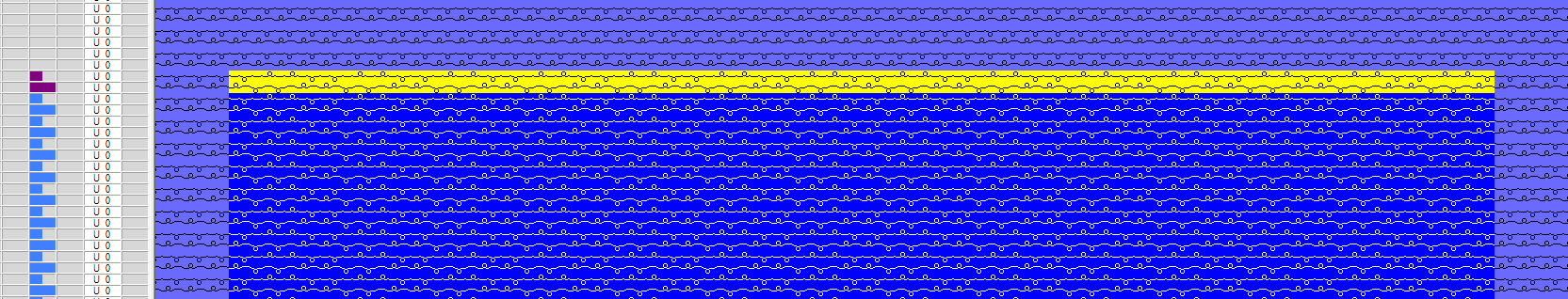

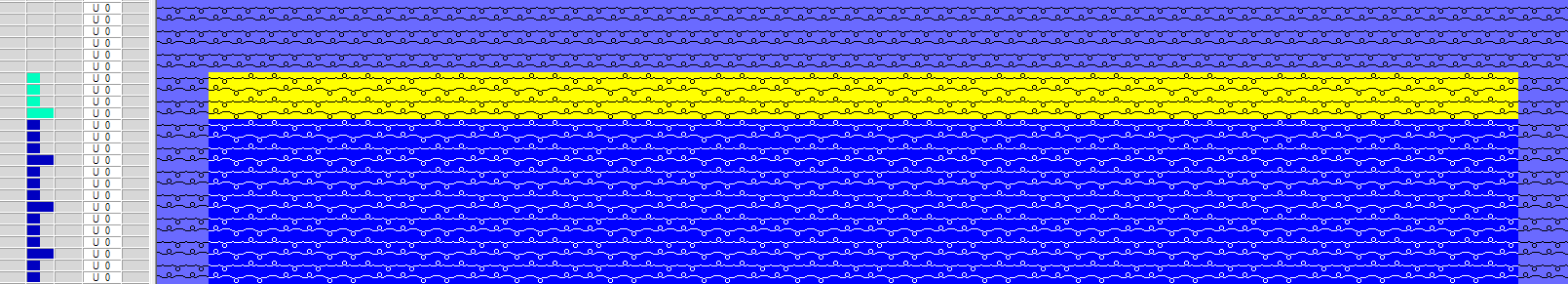

Bind-off_CA / Neckline:

• Therefore, you have to re-color the last both knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter the Neckline bind-off CA into the control column.

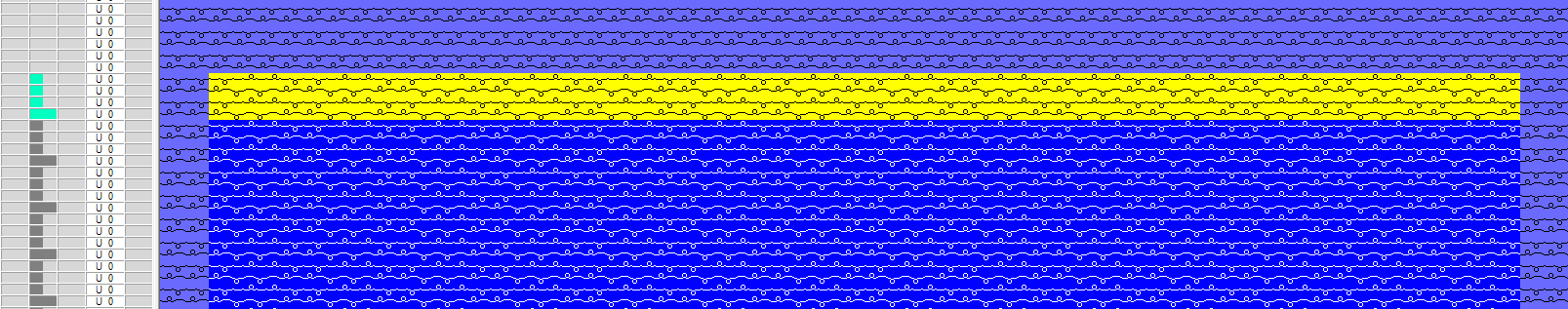

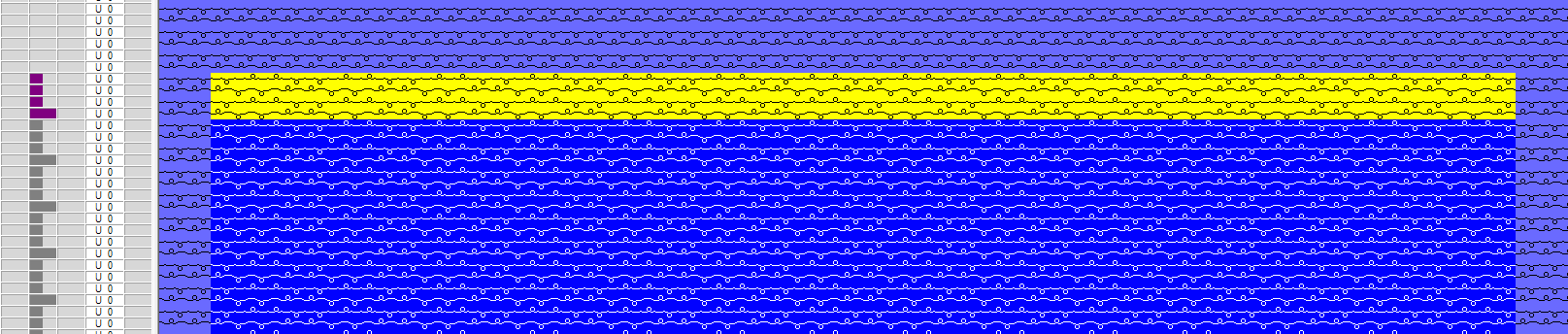

Bind-off_CA / Neckline-2_coarse gauge:

• Therefore, you have to re-color the last both knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter the Neckline-2_Coarse gauge bind-off CA into the control column.
• This bind-off variant is intended for coarse gauges with spring loaded holding-down jacks.
  An additional row is knit on layer L1.

Bind-off_CA / Neckline inside out

• Use this bind-off CA if the k&w article will be turned from inside to outside.
• Therefore, you have to re-color the last both knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter the Neckline inside out bind-off CA into the control column.

Bind-off_CA / Neckline fast:

ToDo

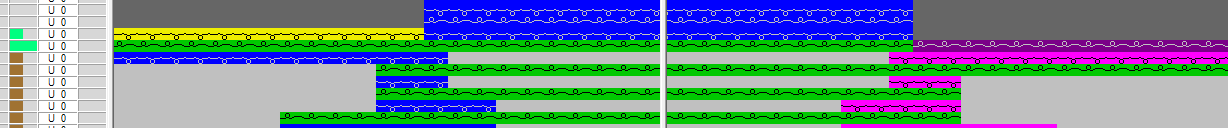

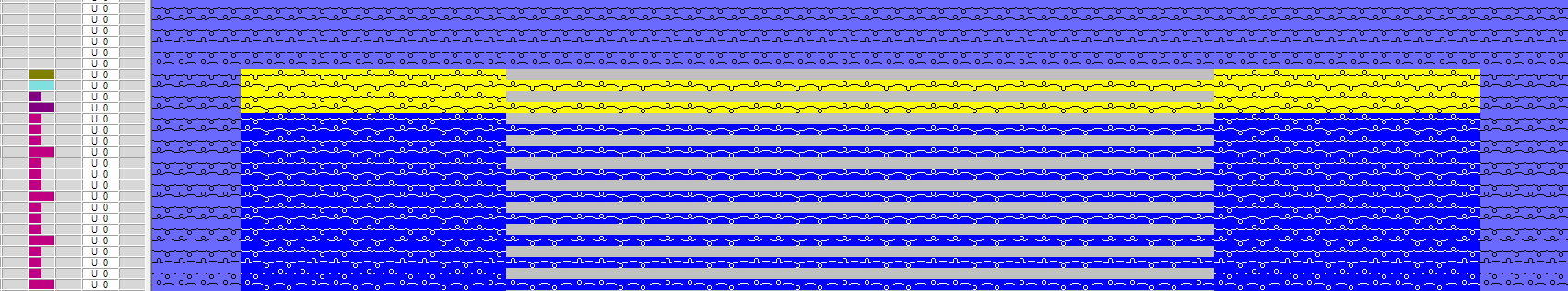

Bind-off_CA / Neckline open left:

• With this binding-off CA, the binding-off starts at the left.
  Therefore, an additional row is knitted on layer L1.
• Therefore, you have to re-color the last four knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter the Binding-off open left bind-off CA into the control column.

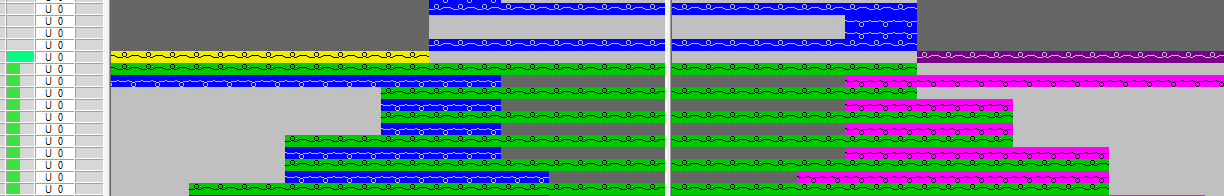

Binding-off_CA / Neckline open right:

• With this binding-off CA, the binding-off starts at the right.
  Only the rows specified by the shape get knitted.
• Therefore, you have to re-color the last four knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter the Binding-off open right bind-off CA into the control column.

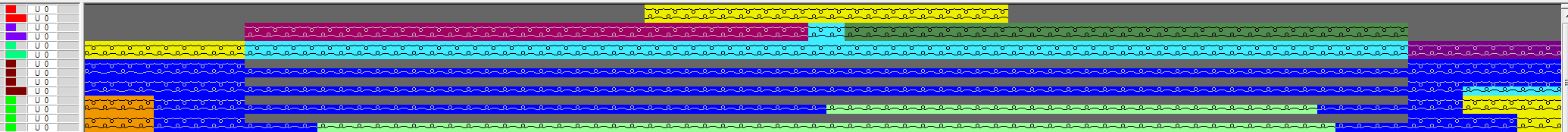

Binding-off_CA / Neckline open left and right

• Due to both open sides of the collar, a second yarn carrier is necessary for this collar.
  This Binding-off CA requires that the yarn carrier of the left sleeve is used as second yarn carrier within the collar.
  This enables to neaten both of the yarn ends effortlessly at the end of binding-off.
• With this binding-off CA, an additional row will be knitted on both sides of L0 and L1 exceeding the shape.
• Therefore, you have to re-color the last four knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter the Binding-off open left and right bind-off CA into the control column.

Binding-off_CA / Neckline open left L0+L1:

• Due to both layers open in the center, a second yarn carrier is necessary for this collar.
  The yarn carrier of the left sleeve is used for the left side of the neckline.
• With this binding-off CA, an additional L0 row will be knitted on both sides exceeding the shape.
• Therefore, you have to re-color the last four knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter the Binding-off open L0+L1 bind-off CA into the control column.

Binding-off_CA / Neckline open L0 end on the right

• With this variant of binding-off, L0 on the left is bound-off from inside to outside at first, then the L1 layer to the right and after it, the L0 layer on the right from inside to outside. All with one yarn carrier
• Therefore, you have to re-color the last four knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter these three Bind-off CAs into the control column.
• Binding-off L0 <
• Binding-off L1 >
• Binding-off L0 >

Binding-off_CA / Neckline L0 open left and right

• This variant of binding-off is done by three yarn carriers. The L0 layer on the left is bound-off from inside to outside at first, then the L1 layer to the right and after it, the L0 layer on the right from inside to outside.
  An individual yarn carrier is used for each binding-off.
• Therefore, you have to re-color the last four knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter these three Bind-off CAs into the control column.
• Binding-off L0 <
• Binding-off L1 >
• Binding-off L0 >

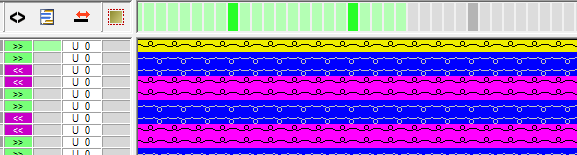

Binding-off_CA / Neckline Protection rows:

• This variant of binding-off does no binding-off but knits protection rows with residual yarn on the L0 and L1 layer.
• Therefore, you have to re-color the last both knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter the Binding-off Protection rows bind-off CA into the control column.

Binding-off_CA / Neckline open on the L0 Protection rows:

• This variant of binding-off does no binding-off but knits protection rows with residual yarn on the L0 and L1 layer.
• Therefore, you have to re-color the last four knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter the Binding-off Protection rows bind-off CA into the control column.

Binding-off_CA / Neckline open L0+L1 Protection rows:

• This variant of binding-off does no binding-off but knits protection rows with residual yarn on the L0 and L1 layer.
  Two yarn carriers are required for the protection yarn due to the open layers L0 and L1.
• Therefore, you have to re-color the last four knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter the Binding-off Protection rows bind-off CA into the control column.

Binding-off_CA / Neckline open on the left Protection rows:

• This variant of binding-off does no binding-off but knits protection rows with residual yarn on the L0 and L1 layer.
  Two yarn carriers are required for the protection yarn due to the open layers L0 and L1.
• Therefore, you have to re-color the last four knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter the Binding-off Protection rows bind-off CA into the control column.

Binding-off_CA / Neckline open on the right Protection rows:

• This variant of binding-off does no binding-off but knits protection rows with residual yarn on the L0 and L1 layer.
  Two yarn carriers are required for the protection yarn due to the open layers L0 and L1.
• Therefore, you have to re-color the last four knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter the Binding-off Protection rows bind-off CA into the control column.

Binding-off_CA / Neckline open on the left and right Protection rows:

• This variant of binding-off does no binding-off but knits protection rows with residual yarn on the L0 and L1 layer.
  Two yarn carriers are required for the protection yarn due to the open layers L0 and L1.
• Therefore, you have to re-color the last four knitting rows of the collar in the basic pattern to color #11 (yellow).
• You have to enter the Binding-off Protection rows bind-off CA into the control column.

Binding-off_CA / Opening trousers with 2x2 waistband with elastic yarn

Binding-off_CA / L0/L1 geschlossen, flache Naht<

• The last knitting row of the basic pattern must go to the right.
  Therefore, you have to re-color the last knitting row to color #11 (yellow).
• You have to enter the Binding-off L0/L1 closed< bind-off CA into the control column.
• An additional knitting row is specified in the CA.
  With it, an additional bind-off row is inserted into the pattern.

Binding-off_CA / L0/L1 geschlossen, flache Naht>

• The last knitting row of the basic pattern must go to the right.
  Therefore, you have to re-color the last knitting row to color #11 (yellow).
• You have to enter the Binding-off L0/L1 closed< bind-off CA into the control column.
• An additional knitting row is specified in the CA.
  With it, an additional bind-off row is inserted into the pattern.

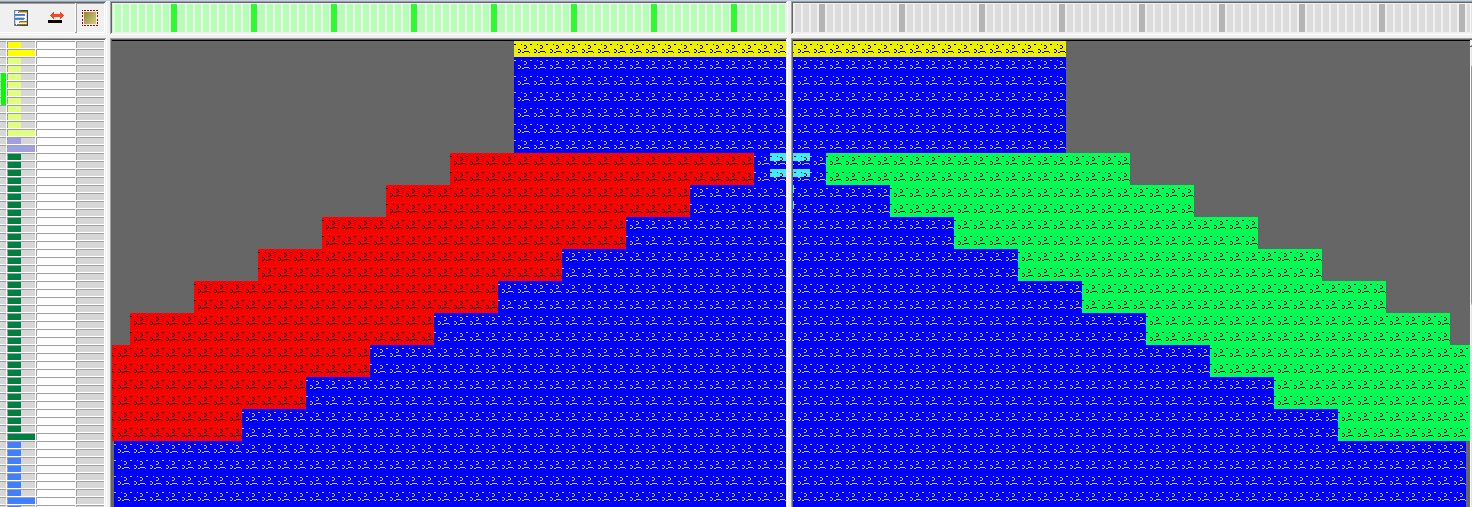

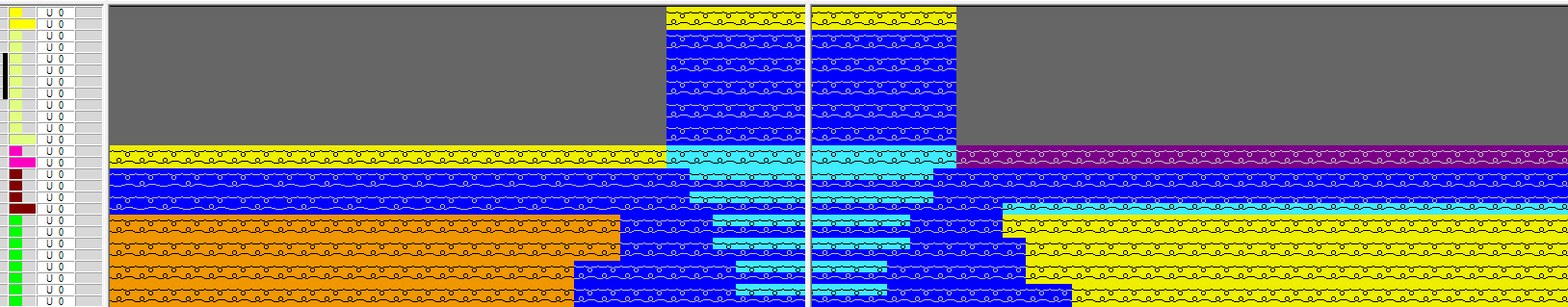

Binding-off_CA / French shoulder above V-neck

• This module node contains three variants with different widths:
• Each variant consists of three CA:
• Shoulder band (L0 + L1)
• Neck binding-off (L1)
• Binding-off
• The shoulder band and the neck are bound-off simultaneously on both sides.
  Therefore, CA's consists of three segments.

Binding-off_CA / French shoulder above V-neck

• This module node contains three variants with different widths of the shoulder band.
• The shoulder band is bound-off simultaneously on both sides.
  Therefore, CA's consists of three segments.
• Use the CA from the Bind-off_CA folder for the finalizing binding-off.

Bind-off_CA / V-neck start L0/L1

• This module node contains eight binding-off CA:
• Four CA with regular binding-off
• Four CA with binding-off by casting-off
• Enter the desired CA into the control column.
• You draw the search color of the CA into the pattern.

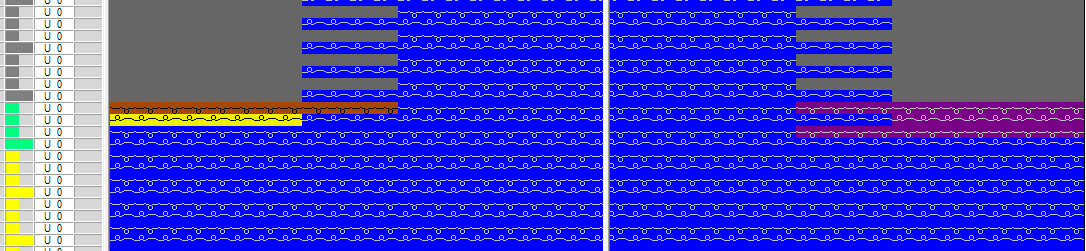

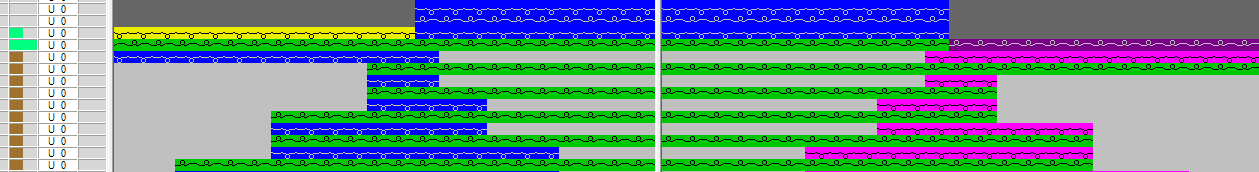

Binding-off_CA / Shoulder Standard-01

• Binding-off the left shoulder at first and then the right shoulder.
• Both sides are bound-off from outside to inside with an offset of one row each.
• You draw the left and right search color into the pattern.

Binding-off_CA / Shoulder Standard-02

• Binding-off the left shoulder at first and then the right shoulder.
• Both sides are bound-off from outside to inside with an offset of one row each.
• You draw the left and right search color into the pattern.

Binding-off_CA / Shoulder Standard inside out-02

• Use this CA if the k&w article will be turned from inside to outside (half cardigan).
• Binding-off the left shoulder at first and then the right shoulder.
• Both sides are bound-off from outside to inside with an offset of one row each.
• You draw the left and right search color into the pattern.

Binding-off_CA / Shoulder simultaneous-01

• The right and left shoulder are bound-off simultaneously by one yarn carrier each.
• You have to draw the left and right search color at the same height into the pattern.

Binding-off_CA / Shoulder simultaneous-02

• The right and left shoulder are bound-off simultaneously by one yarn carrier each.
• You have to draw the left and right search color at the same height into the pattern.

Binding-off_CA / Binding-off the shoulder of a top

• The right and left side of the top are bound-off simultaneously by one yarn carrier each.
• You have to draw the left and right search color at the same height into the pattern.
