Fair Isle Markings for Plissee pleats

Fully Fashion

A multi-step narrowing and the corresponding narrowing module has to be allocated to the edge step in the shape.

After positioning the shape, the fair isle narrowing markings must be entered according to the following scheme:
Per pleat, a block of fair isle narrowing markings have to be drawn-in that has a cover width of 1 at the outer positions and a cover width of 2 in the center.
The sum of the cover widths has to match always the size of the edge step.

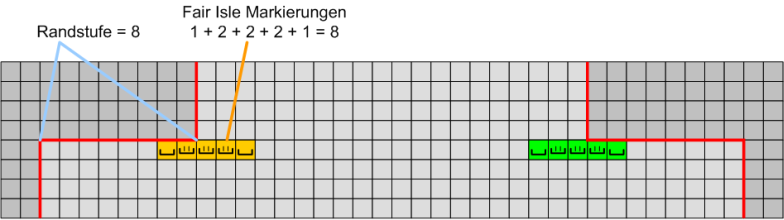

Example 1: One pleat per side and row:

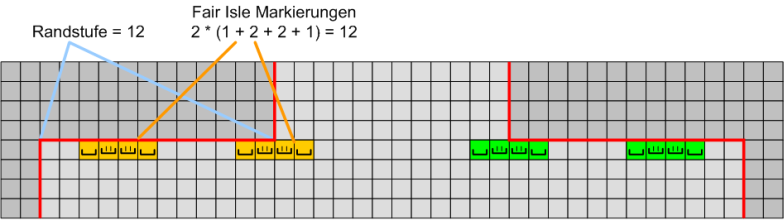

Example 2: Two pleats per side and row:
