Same cycle counters

Same cycle counters, e.g. RS22 and their values can change adding same cycles.

If there are several same cycle counters in a pattern they will become ineffective.

Here applies:

• Type: If there are same cycles of different types, only the cycle of the type Sintral/Setup will be written into the Cycles table. The cycle of the row type will continue being listed but its value will appear greyed out and thus it will not have any effect.
• Sequence: If there are same cycles of the same type, then the last cycle entered in the Cycles table will be considered. The following cycle counters with the same cycle will continue being listed but their standard values will appear grayed-out and thus they will not have any effect.

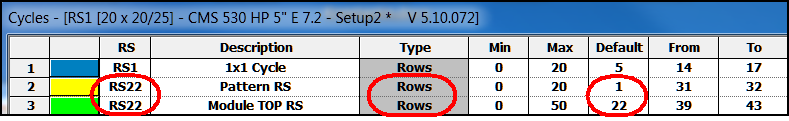

Cycles table before expanding:

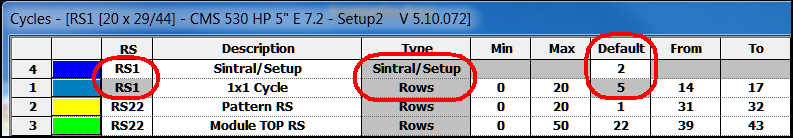

Cycles table with a new entry:

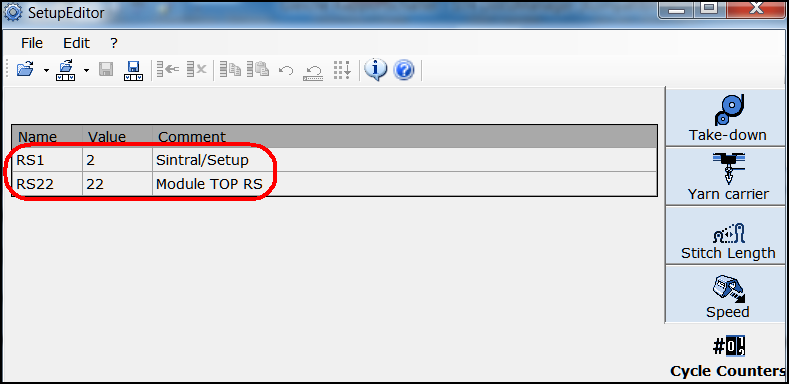

Result in the setup:
