Fast binding off with color arrangements - structure

Fast binding off is called a binding off process where the knitting and transfer actions for each repetition are processed in a relative racking position U<>0. This way a return to the racking position V0 is not necessary when repeating. The racking position is set many times to its maximum value if necessary. The maximum value depends on the machine gauge.

Example: Fast binding off with fixing 01 >

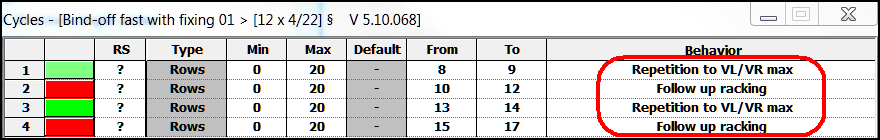

The following cycle counters with the corresponding behavior are necessary:

• Repetition to VL / VR max., technical rows 8-9 and 13-14
• Follow up racking, technical rows 10-12 and 15-17

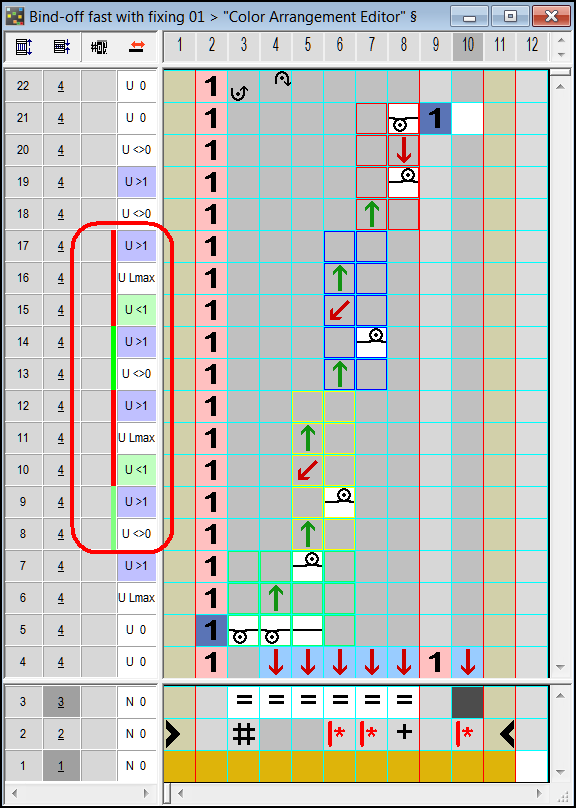

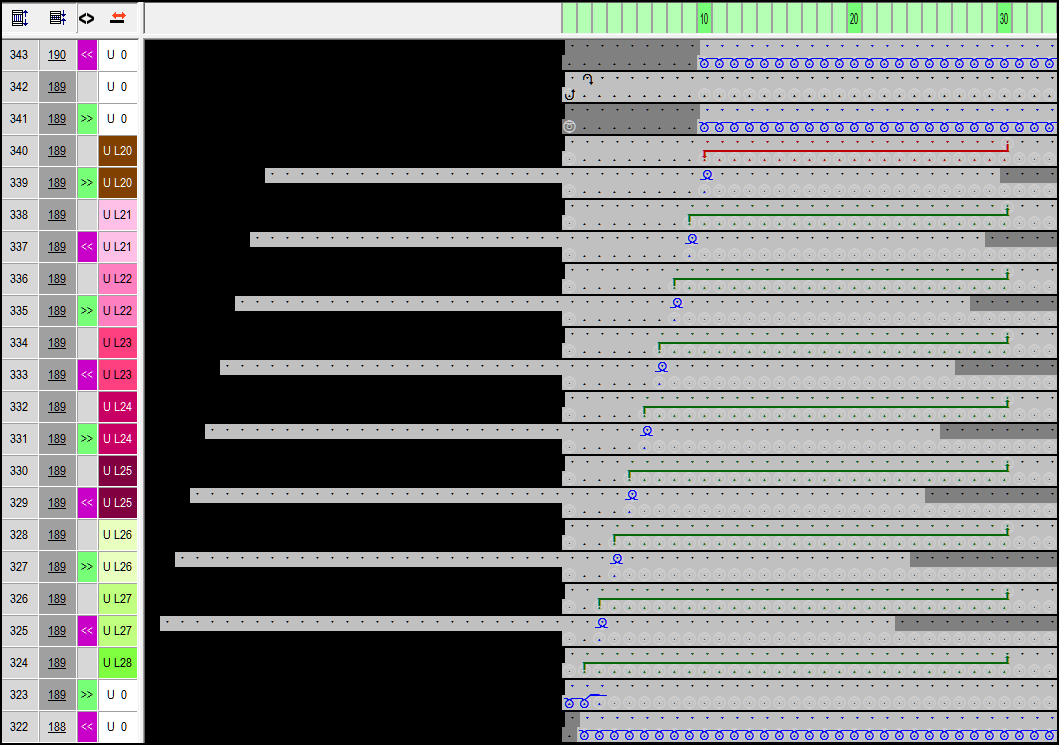

Technical view after expanding gauge E14:
