New Modules

The M1plus Module Support contains a detailed description about module structure, machine type and settings, yarn information, examples and images of different modules of the Module Explorer of Database.

The module catalog is called-up here:

• Module Explorer of Database
• Modules toolbar
• Jacquards dialog box
• Yarn Field Allocation dialog box
• Start section of the New pattern dialog box
• Tabs of the Shape attributes dialog box

The module catalog is called-up this way:

• Module Support… context menu of the desired module
• ? / Module Support menu of the main program
• icon in the Start section of the New Pattern dialog box

k&w Starts, Tubular 1-2, for Short Sleeve and Short Body

k&w-Starts
	Stoll
		Short body
			Default
				Short body
					with Elastic Yarn
						k&w_Tubular_1-2_Sleeve
						k&w_Tubular_1-2_Body

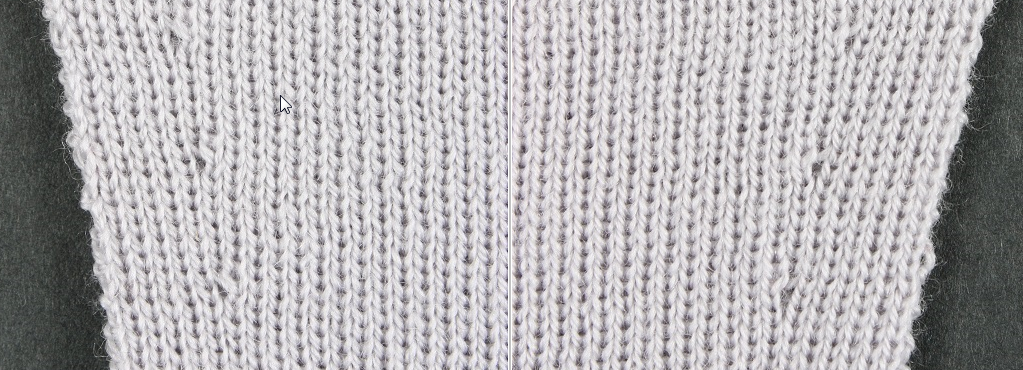

Widening with Closing-Stitch for DJ

Technique
	Widening
		Structure double jersey
			Default
				Closing stitch with kick-back << - >>

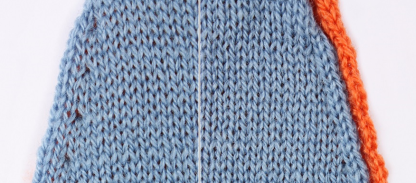

Widening / Closing stitch Tubular 2 Rows

Technique
	Widening
		Structure double jersey
			Default
				Closing stitch Tubular 2 Rows >>-<< (Structure double jersey)

Narrowing / Tubular 2 Rows

Technique
	Narrowing
		Structure double jersey
			Default
				Tubular 2 Rows >>-<< (Structure double jersey)
