Step 1: Creating shape

    1
    Open the Shape editor via Shape /Shape Editor (Generate or Edit Shapes)....
    2
    Under General Shape Data select the corresponding k&w ... shape type.
    2. 3
    Set Input format to Stitches.
    4
    Activate mirrored under Elements.
    5
    Establish coordinates and allocate attributes.

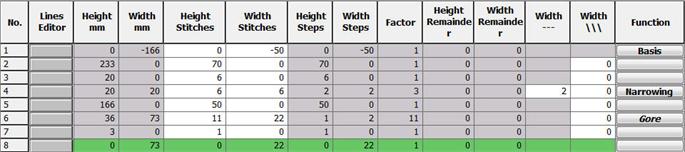

Front

    1
    Under Function allocate the desired attribute to the Narrowing edge.
    2
    Allocate the Shoulder gore (line No. 6) under Function in the Gore tab.
    3
    Under Function allocate the Shoulder standard-02 module to the Gore edge.

Shape element Neckline in the front

    4
    Create a new element and under Type select the Neckline entry.
    5
    Specify the coordinates for the Neckline via the Line editor.

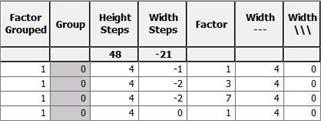

  1. Option Line editor: the neckline steps can be repeated via the factor.
    6
    Specify the neckline distance until the end line:

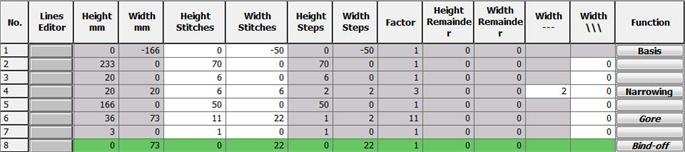

Back

    1
    Under Function allocate the desired attribute to the Narrowing edge.
    2
    Allocate the Shoulder gore (line No. 6) under Function in the Gore tab.
    3
    Under Function allocate the Shoulder standard-02 module to the Gore edge.
    4
    Allocate the end line to the Binding-off tab under Function.
    5
    Select the Neck with draw thread binding-off module.

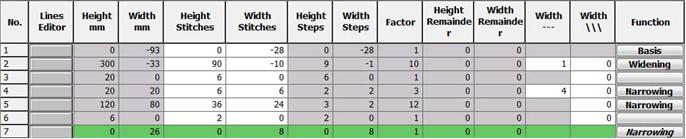

Sleeve

    1
    Allocate the desired attributes Widening and Narrowing to the edges under Function.
    2
    In line No. 5 allocate the Sleeve above Layers apart module to the Narrowing edge.

Remaining narrowing (Line No. 7)

    3
    Allocate the end line to the Narrowing tab under Function.
    4
    Allocate the Remaining narrowing module in the Narrowing tab.
    5
    Narrow the remaining narrowing in the entire width and limit it up to one stitch.
    6
    Under Function in the Narrowing (Line No. 7) tab set the options.
    2. 7
    The remaining narrowing must be marked.
    8
    In the Connections (Line No. 7) tab select the option.

To the next step 2: Loading and adjusting shapes in the ShapeWizard
