Draw the basic pattern modify the Stoll start

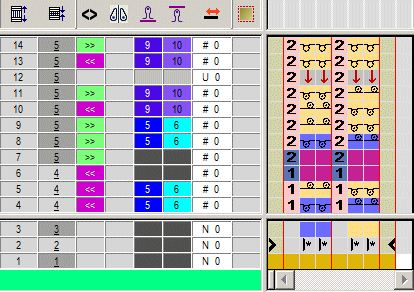

I. Modify the Stoll start:

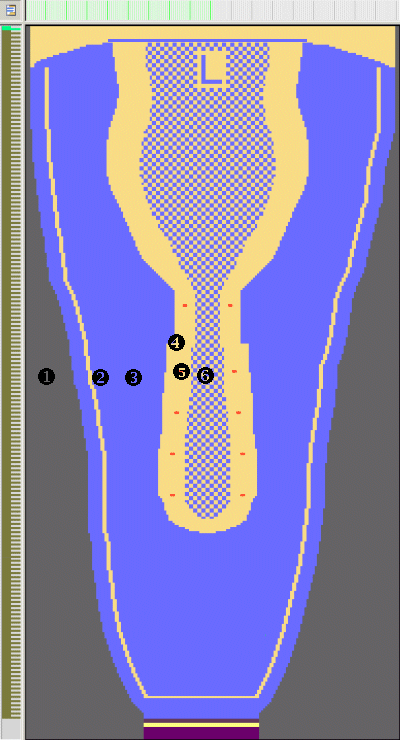

II. Draw the basic pattern with yarn colors and basic module:

    1

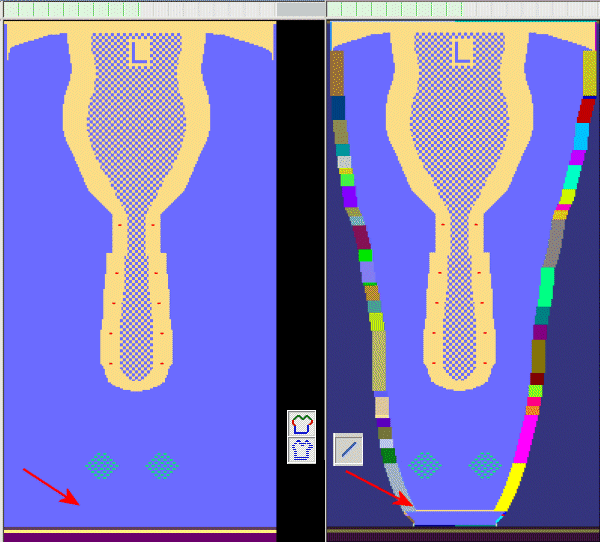

    After Open and position shape activate the shape edges and shape symbols.
    2
    Afterwards draw the XXX of the toe cap with the color 31.

Example cut-out according to shape:

III Color Arrangements in the pattern:

CA#1

CA#2

CA End

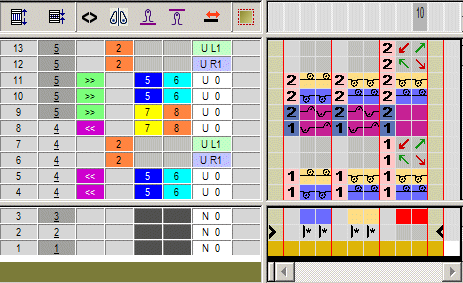

Color Arrangement for jacquard cross-tubular, insertion of the connection thread and hole structure for eyelet by transferring with racked beds

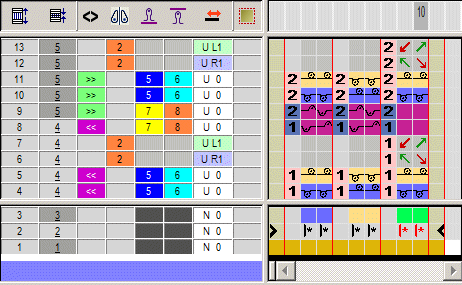

Color Arrangement for jacquard cross-tubular, insertion of the connection thread and hole structure for toe cap by transferring with racked beds

Color Arrangement for the fabric end with loose stitch tension for secure transition

Number

Area

Color
Arrangement

Search colors for Color Arrangement

Used yarn colors
in Color Arrangement

1

Outside shoe, shape







2

Folding edge

1

#23, # 31,#7

# 22: Connection thread
# 23: Basic color 1
# 31: Basic color 2

3

Visible pattern

1

#23

4

Upper edge of shape

1

# 31

5

Eyelet

1

#7, ,#23,# 31

6

Outside shoe, inside



#23, #31

7

Toe cap

2

#4,#23, #31



Fabric end

End

#23, #31

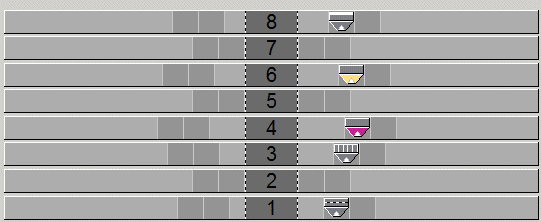

IV. Yarn carrier home position in the Yarn Field Allocation dialog:

Yarn carrier number

Allocation

1A

Draw thread

3A

Basic color 1 [2-fold] PA 6.6 78dtex/f46x4 Z88 HE gl

4A

Connection yarn color 1 [1-fold] PA 6.6 78dtex/f46x4 Z88 HE gl

6A

Basic color 2 [2-fold] PA 6.6 78dtex/f46x4 Z88 HE gl

8A

Protection Yarn
