Create the shape in the M1plus Shape Editor

I. Generate a shape:

    1
    Call up the M1plus Shape Editor dialog box via the Shape / Shape Editor (Generate or Edit Shapes)... menu.
  1. The dialog box will be opened.
    2
    Open an existing shape via the File / Open .shv shape [mm] … menu.
    -  or  -
    Click .
    Example: D:\Stoll\M1plus\Version\Form\5_Top-Vorderteil.shv
    3
    Convert the *.shv shape into the *.shp format via the File / Convert and Save As… menu.
    4
    Change basic element.

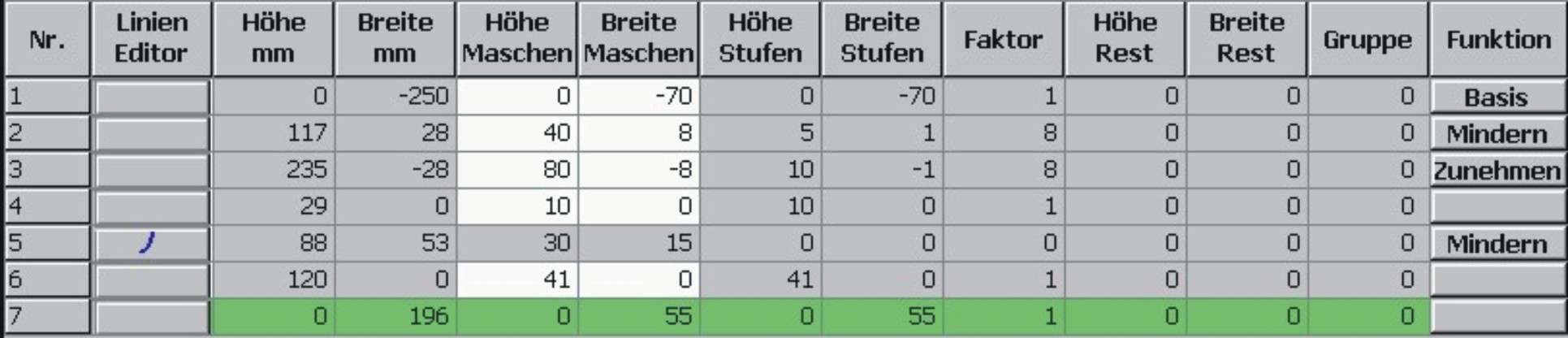

Basic element Front:

    5
    Change the neck opening element.

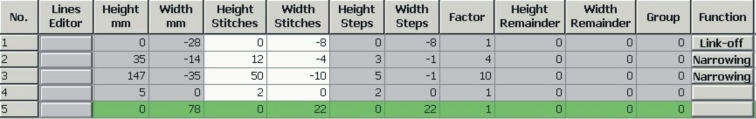

Element Neck opening:

    6
    Allocate the fade-out and narrowing attributes to the edges of the elements in the Function column.

Knitting Mode

Narrowing

Binding-off

Fading-out



Width:

Stepping:

Method:



Jacquard float (single jersey)

As desired

1-3 stitches

BO-SJ-01
BO-SJ-02
  • The motif colors at the border are automatically faded-out and knitted in 1x1.
  • Fade-out width: 2 Needles wide
  • You can switch-off the automatic fading-out

: You can deactivate the fading-out in the Symbol View via the Fading-out tab of the Shape Attributes dialog box.

Jacquard stripe (double jersey)

1 Stitch

1 Stitch

BO-DJ-01
BO-DJ-02
BO-TC4-DJ-01
BO-TC-R-DJ-01
BO-TC-T-DJ-01

Jacquard twill (double jersey)

Jacquard net (double jersey)

    7
    Save the shape via the File / Save or Save As… menu.
  1. The shape will be saved in the shp format.
    8
    Close the Shape Editor with .
