Create Pattern

Create pattern:

    1
    Generate a new pattern with Front stitch with transfer basic pattern.
    2
    Draw the 3-colored motif.
    3
    Select the jacquard area via a row selection.
    4
    Call up the Jacquards dialog box via the Edit / Generate or Edit Jacquard... menu.
    5
    Select the Jacquard module under Jacquard / Own / noname1 / X colored and insert it with Apply in the selection.
    6
    Adjust the color sequence of the inserted Jacquard modules if necessary in the Jacquards dialog box under Color Sequence and Stitch Length.
    7
    Confirm entries with the OK button.

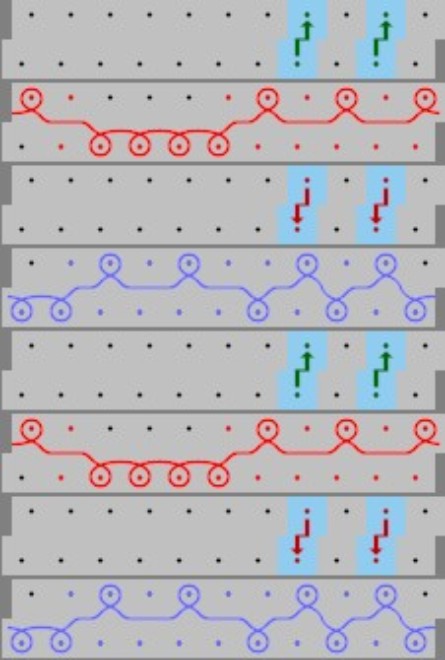

Stitch line with 2-color relief jacquard

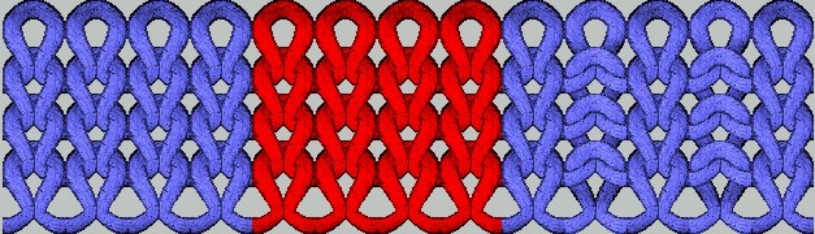

Fabric View
