Generate Own Fade-out Modules

I. Generate fade-out module:

    1
    Call up the New Module dialog box via the Module / New / Module… menu.
    2
    Select the Type of pattern in the New Module dialog box.
    3
    Enter width and height of the module.
    4
    Select the knitting mode.
    5
    Close the New Module dialog box with OK.
  1. The Properties of: XX dialog box appears.
    2. 6
    Close the Properties of dialog box with OK.
  2. The Module Editor appears.
    3. 7
    Draw the knitting process with Needle actions.

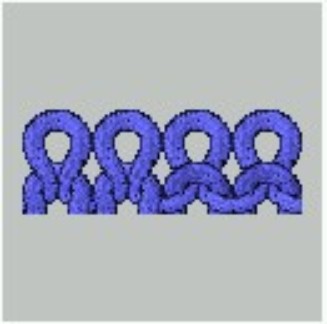

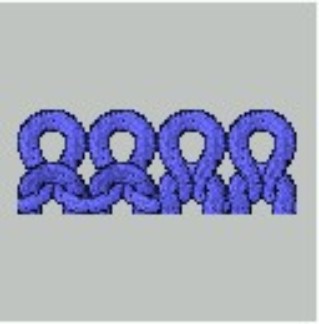

Modules for fade-out

Left edge

right side of V-neck

Right edge

left side of V-neck

    8
    Close the dialog box with .
  1. The Save Module in the Database? prompt appears.
    2. 9
    Confirm the dialog box with Yes.
  2. The module is saved in the Module Explorer of Database under New Modules.
    3. 10
    Move the module from New Modules to a module group of your own.
