Create the Shape in the M1plus Shape Editor

I. Generate a shape:

    1
    Call up the Shape Editor via the Shape / Shape Editor (Generate or Edit Shapes)... menu.
    2

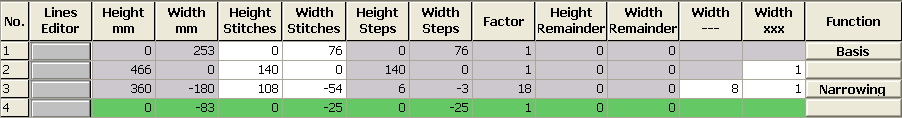

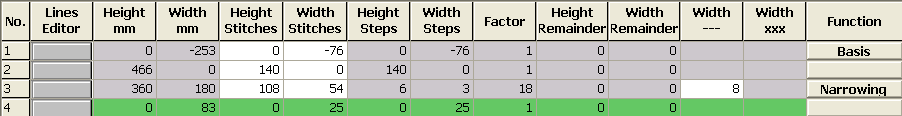

    Enter the shape elements for the left and right basic element:

Left basic element

Right basic element

    3
    Allocate the attributes for narrowing and fading-out.

Attributes



Left basic element

Right basic element

Fade out

Not necessary

Front stitch with transfer
+
applies to all knitting modes

Fade-out width



1 Stitch

Type of narrowing

2x1- Rib (vv^.....^vv)
+
applies to all knitting modes

2x1- Rib (vv^.....^vv)
+
applies to all knitting modes

Narrowing width

8 stitches

8 stitches

    4
    Save shape.
    5
    Close the Shape Editor.
