Create the shape in the M1plus Shape Editor

I. Generate a shape:

This shape contains no border processing (fading-out) for the autarkic shifting of the yarn carriers!!!

    1
    Via the Shape / Shape Editor (Generate or Edit Shapes)... menu open the M1plus Shape Editor dialog box.
  1. The dialog box will be opened.
    2
    Open an existing shape via the File / Open .shv shape [mm] … menu or with the button and convert it to shp format.
    -  or  -
    Generate a new shape of the shp format in the Shape Editor via
    -  or  -
    File / New or with the key.
    3
    Create a Basic shape element for a front:

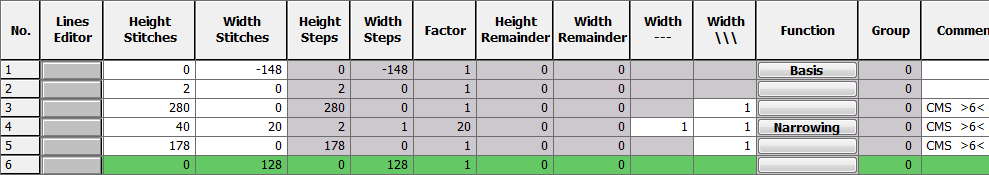

Basic element front left lines:



    4
    Allocate the fade-out width 1 and the fade-out module Front Stitch with Transfer to the edge lines.
    5
    Allocate the other desired shape attributes to the edge lines.
    6
    Save the shape via the File / Save or Save As… menu.
  1. The shape will be saved in the shp format.
    7
    Close the M1plus Shape Editor with .
