Border Processing for Selective Plating

Selective Plating

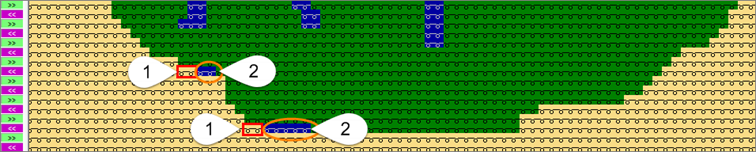

Several yarn carriers are used within on area with selective plating. Meaning all yarn carriers has to be placed optimally to knitting rows during knitting. This requests a border processing / correction of the motif.

I. Border processing of the motif:

You have to process the border in the basic pattern .
Caution:
The border processing cannot be undone after technical processing of the pattern / !

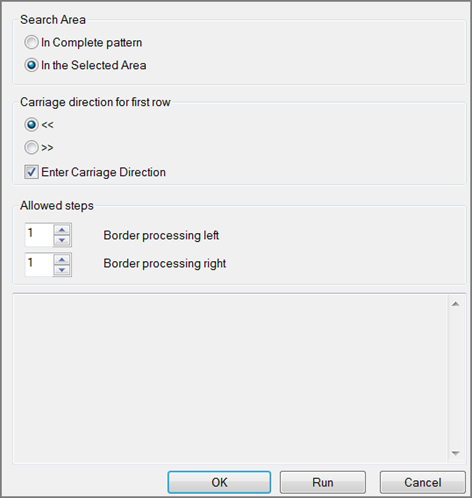

1: Run the dialog box with the Border Processing for Selective Plating... function in the Edit menu.

					Function
Border Processing for Selective Plating
Search Area
		In complete pattern			Edit the border processing of the areas within the whole pattern.
		Within the selected area			Edit the border processing of the areas within the selection. : Multiple selection is possible.

	Carriage direction for first row
	<<				Carriage direction for the first row in the area of selective plating to the left
	>>				Carriage direction for the first row in the area of selective plating to the right
	Enter Carriage Direction				Switching carriage directions for the left and right border will be inserted into the pattern.
	Allowed Stepping
				Border processing left	Setting for allowed stepping by needles at the left border
				Border processing right	Setting for allowed stepping by needles at the right border
	: No widening by plating color will be entered in the area of allowed stepping
	1		Allowed stepping of two needles
	2		Selvedge correction with the existing plating color
