Create the shape in the M1plus Shape Editor

I. Generate a shape:

    1
    Via the Shape / Shape Editor (Generate or Edit Shapes)... menu open the M1plus Shape Editor dialog box.
  1. The dialog box will be opened.
    2
    Open an existing shape via the File / Open .shv shape [mm] … menu or with the button and convert it to shp format.
    -  or  -
    Create a new shape in the shp format via File / New or with the button.
    3
    Create a Basic shape element for a front:

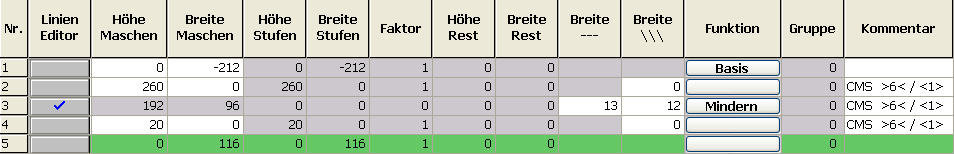

Basic element front left lines:

    4

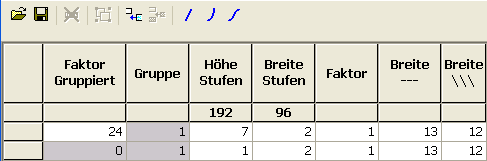

    For line no. 3 open the line editor and enter the values:
    2. 5
    Save the shape via the File / Save or Save As… menu.
  1. The shape will be saved in the shp format.
    6
    Close the M1plus Shape Editor with .
