Knit

  1. No entry (function) is present in column 3.
    1

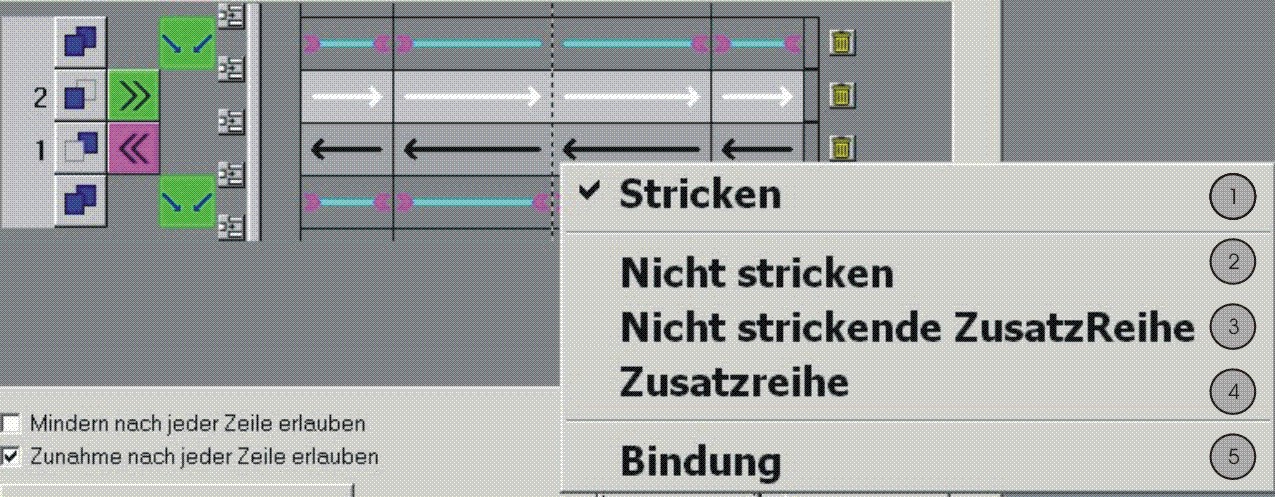

    Click with the left mouse button in the corresponding row and column (shape part).
  1. The information Knit is entered.

No.

Function

Meaning

1

Knit

Knitting row

  • Color of arrows defines the knitting layer:
    • Black: Layer L1
    • White: Layer L0
  • Yarn carrier colors corresponding to the yarn carrier rails
  • The carriage direction in column (2) defines the direction of the arrow.

2

Do not knit

Not knitting row

The row is edited in the shape view.
You can define the knitting layer and the carriage direction.
Example: Remaining Narrowing

3

Not knitting additional row

Additional non-knitting row

Row is originally not present in the shape view; the row is inserted.
You can define the knitting layer and the carriage direction.
Example: Optimization of narrowings

4

Additional Row

Additional knitting row

Row is originally not present in the shape view; the row is inserted.
You can define the knitting layer and the carriage direction.
Example: Bind-off the collar

5

Binding

Symbol inserts the symbol for gore at the start / end of a knitting row in the shape view.
With the Configuration menu, the type of binding in the gore can be specified.
You can define the knitting layer and the carriage direction.
Example: Knitting cycles for neck gore
