Overview of the k&w Arrangements in the Module Explorer of Database

Yarn carrier colors were used during the generation of the k&w Arrangements of Stoll.

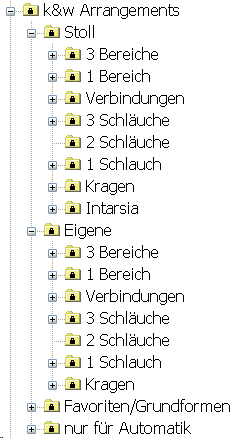

I. Module group Stoll / Private:

Designation

k&w Arrangements for

Application

3 areas

Sleeve/Body/Sleeve

Above Sleeve-Body connection.

1 area

- /Body/ -

connections

Sleeve-Body connection

Connection of body and sleeves

3 tubulars

Sleeve/Body/Sleeve

Below sleeve - body connection

2 tubulars

Sleeve/ - /Sleeve,

1 tubular

- /Body/ -

Collar

Collar

Collar

Intarsia

- /Body/ -

Intarsia knitting technique in the body

The module group Private is empty and is used to save the self-generated k&w Arrangements.
The k&w Arrangements of this group have a higher priority than the k&w Arrangements of the module group Stoll.

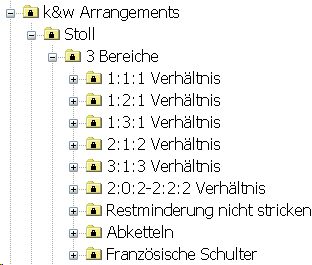

II. Subgroups in 3 areas

Designation

Use and stitch ratio

ratio

Stitch rows
Sleeve

Stitch rows
Body

Stitch rows
Sleeve

Application

1:1:1

1

1

1



1:2:1

1

2

1

Sleeve length compensation

1:3:1

1

3

1

Sleeve length compensation

2:1:2

2

1

2

Body-saddle shoulder length compensation

3:1:3

3

1

3

Body-saddle shoulder length compensation

2:0:2:- 2:2:2

L0

2

0

2

Sleeve-back body length compensation

L1

2

2

2

Remaining narrowing not knitting

k&w Arrangements for narrowing without knitting for:

  • inserted sleeve
  • effect of a bind-off sleeve

Binding-off

k&w Arrangements for binding-off at the end:

  • with opening
  • without opening

F-Shoulder Sleeve

k&w Arrangements for the French shoulder shape

III. Opening / Gore subgroups

Designation

knitting area

k&w Arrangements

without opening

without gore

Sleeve/Body/Sleeve

Without opening and gore in L0 and/or L1
Example: Pullover without neck gore and collar

with gore

Gore with binding in body in L0 and/or L1 without opening
Example: Pullover with neck gore and collar

with opening

without gore

Opening in body in L0 or L1
Example: Cardigan with V-neck

with gore

Gore with binding and opening in body in L0 and/or L1
Example: Cardigan with neck gore and collar

IV. Connections subgroup

Designation

knitting area

k&w Arrangements

without opening

without gore

Sleeve/Body/Sleeve
  • B1-Type1 (no connection L0-L1)
  • B1-Type1 TC-T (no connection L0-L1)
  • B8 Connection of trousers

with gore
  • B5 Type1 with gore (L0) no connection L0-L1
  • B6 Type1 with gore (L0+L1) no connection L0-L1

with opening

without gore
  • B2 Type1 with opening (L0) no connection L0-L1
  • B2 Type1 TC-T with opening (L0) no connection L0-L1
  • B7 Type1 with opening (L0) no connection L0-L1 Rib

with gore
  • B3-Type1 with gore and opening (L0) and with gore and opening (L1) no connection L0-L1
  • B4 Type1 with gore and opening (L0) no connection L0-L1

With intarsia
  • I17-Type 1 no connection L0-L1 + I L0 Body

V. Sub-group Intarsia

Designation

Application

Body



Knitting technique intarsia in the body below the sleeve/body connection

1 tubular

with tank top

3 tubulars

With pullover



Knitting technique intarsia in the body above the sleeve/body connection

1 area

with tank top

3 areas

with pullover

connections

Knitting technique intarsia in the area of the sleeve/body connection in the front layer

VI. Favorites / Basic Shape Types module groups

Standard shape

Contents

set in sleeve

k&w Arrangements for the standard shapes

set in sleeve as cardigan

saddle shoulder

saddle shoulder as cardigan

raglan

raglan as cardigan

slipover

Waistcoat

Intarsia

k&w Arrangements for knitting technique intarsia in the body

VII. Designation of the k&w Arrangements and their use:

Designation

k&w Arrangements

knitting area

Application

A

1 tubular

- /Body/ -

Below Sleeve-Body connection.

2 tubulars

Sleeve/ - /Sleeve

3 tubulars

Sleeve/Body/Sleeve

B

Connection

without opening

Sleeve-body connection

with opening

C

3 areas with or without gore

Above the sleeve-body connection to the start of the collar

D

Collar and binding-off

Neck, shoulder, collar

I

1 tubular

Body

Knitting technique intarsia below sleeve - body connection

3 tubulars

Sleeve/Body/Sleeve

Connection

with opening

Knitting technique intarsia in the area of the sleeve body connection

1 area with opening

Knitting technique Intarsia above the sleeve-body connection up to the collar start

3 areas with opening
