CMS ADF - Setup2, extension in the "YC/YCI" tab

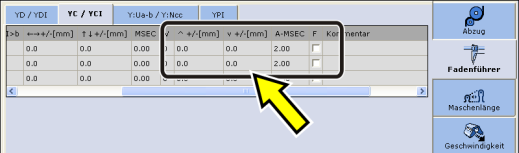

In the YC/YCI tab, four columns were added (Setup2 Editor -> Yarn carrier menu -> YC/YCI)
|
new |
Explanation |
Value range |
|
^ +/-[mm] |
Correction of the High position of the yarn carrier (ADF) Default: 0 mm |
Minimum value: -2.0 |
|
v +/-[mm] |
Correction of the Deep position of the yarn carrier (ADF) Default: 0 mm |
Minimum value: -2.0 |
|
A-MSEC |
Speed of the yarn carrier with a system independent, autarkic yarn carrier run. Default: 2.0 meters/second |
Minimum value: 0.05 |
|
F |
Activate or deactivate Automatic tracking of the yarn carriers when widening. If the distance between the yarn carrier and the fabric selvedge is too small, then the yarn carriers will be moved automatically following the fabric selvedge.
|
|
Activate
Deactivate
