Intarsia - Distances of the yarn carriers

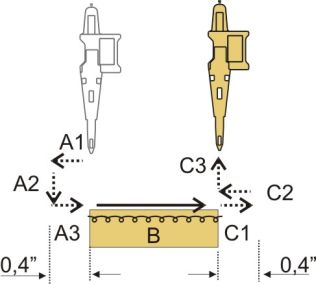

Stop motion of the ADF-yarn carriers within its own color field (Intarsia swiveled)
|
|
A1 |
Overrun path: 0.4 inch (6 nic) |
|
A2 |
Yarn carrier moves in lower position. | |
|
A3 |
Yarn carrier moves to the beginning of its color field. | |
|
B |
The yarn carrier works in its color field. | |
|
C1 |
Overrun path: 0.4 inch (6 nic) | |
|
C2 |
Yarn carrier in lower position moves back to its color field. | |
|
C3 |
Yarn carrier moves to upper position. |
Mechanical-induced distances:
|
|
The width of the ADF-yarn carrier from the yarn carrier tip to the short side is 1 inch. |
|
|
Two yarn carriers on the same track: |
Pattern related yarn carrier distances:
The distances are dependent:
- on the intarsia binding between the color fields.
- on the parking position of the yarn carrier in the preceding row.
With diagonally running color fields (e.g. diamonds) a larger distance results. - on the yarn carrier correction value K<I>, that can be adjusted on M1plus.
|
Function |
Systems |
|
Distance (x) by inches |
|---|---|---|---|
|
Two yarn carriers on the same track work in the same carriage direction
|
with 2 systems |
|
2,4“ |
|
|
2,4“ | ||
|
|
2,4 |
|
Function |
Systems |
|
Distance (x) by inches |
|---|---|---|---|
|
Two yarn carriers on the same track work in the same carriage direction
|
with one system |
|
2,8“ |
|
Two yarn carriers on the same track work in the different carriage direction
|
with one system |
|
2,4“ |
|
Two yarn carriers on the different tracks work in the same carriage direction
|
with one system |
|
0,7“ |
