Spare parts
|
Pos | Term | ID No. |
| Pos | Term | ID No. |
|---|---|---|---|---|---|---|

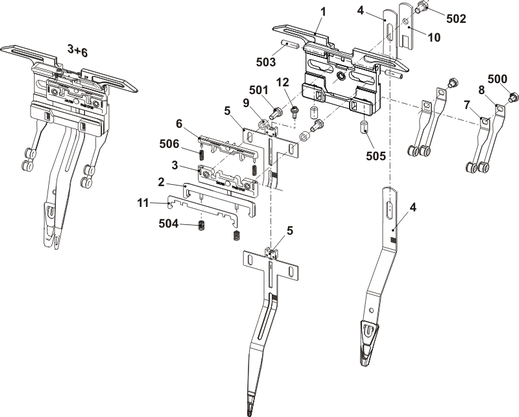

Σ | Plating yarn carrier carriage 3+6 co. |
|
|
| ||
E5; E 5.2; E2,5.2; E3,5.2 | 252 782 | 6 | Sliding piece | 252 797 | ||
E7; E8; E6.2 | 252 784 | 7 | Eyelet holder complete | 252 825 | ||
E10; E12; E14; E7.2; E8.2; E9.2 | 252 786 | 8 | Eyelet holder complete | 252 824 | ||
E16; E18 | 252 788 | 9 | Distance bushing | 252 796 | ||
1 | Plating yarn carrier carriage | 252 806 | 10 | Shim | 213 035 | |
2 | Sliding piece | 212 583 | 11 | Shim | 216 143 | |
3 | Slider | 252 798 | 12 | Adjusting screw | 253 436 | |
4 | Plating yarn carrier bow 3+6 | 500 | Hexagon screw M4x5 | 243 779 | ||
E5; E 5.2; E2,5.2; E3,5.2 | 252 820 | 501 | Hexagon screw M4x10 | 020 346 | ||
E7; E8; E6.2 | 252 821 | 502 | Hexagon screw | 252 832 | ||
E10; E12; E14; E7.2; E8.2; E9.2 | 252 822 | 503 | Setscrew M4x16 | 254 196 | ||
E16; E18 | 252 823 | 504 | Compression spring | 021 399 | ||
5 | Plating yarn carrier bow 3+6 E5-8 | 272 506 | 505 | Threaded bolt | 213 399 | |
Plating yarn carrier bow 3+6 E10-14 | 272 507 | 506 | Compression spring | 253 058 | ||
Plating yarn carrier bow 3+6 E16-18 | 272 508 |
|
|
| ||
|
Pos | Term | ID No. |
| Pos | Term | ID No. |
|---|---|---|---|---|---|---|

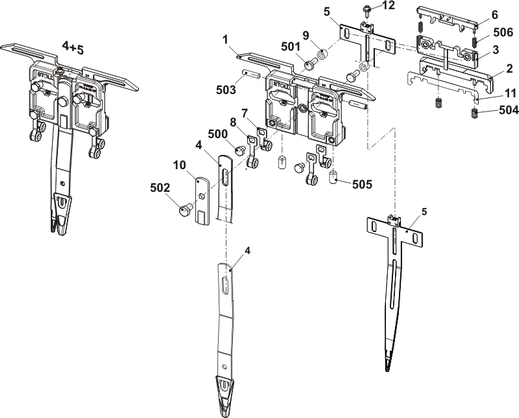

Σ | Plating yarn carrier carriage 4+5 complete. |
|
|
| ||
E5; E 5.2; E2,5.2; E3,5.2 | 252 781 | 6 | Sliding piece | 252 797 | ||
E7; E8; E6.2 | 252 783 | 7 | Eyelet holder complete | 252 815 | ||
E10; E12; E14; E7.2; E8.2; E9.2 | 252 785 | 8 | Eyelet holder complete | 252 816 | ||
E16; E18 | 252 787 | 9 | Distance bushing | 252 796 | ||
1 | Plating yarn carrier carriage | 252 806 | 10 | Shim | 213 035 | |
2 | Sliding piece | 212 583 | 11 | Shim | 216 143 | |
3 | Slider | 252 798 | 12 | Adjusting screw | 253 436 | |
4 | Plating yarn carrier bow 4+5 | 500 | Hexagon screw M4x5 | 243 779 | ||
E5; E 5.2; E2,5.2; E3,5.2 | 252 790 | 501 | Hexagon screw M4x10 | 020 346 | ||
E7; E8; E6.2 | 252 791 | 502 | Hexagon screw | 252 832 | ||
E10; E12; E14; E7.2; E8.2; E9.2 | 252 792 | 503 | Setscrew M4x16 | 254 196 | ||
E16; E18 | 252 793 | 504 | Compression spring | 021 399 | ||
5 | Plating yarn carrier bow 4+5 E5-8 | 272 496 | 505 | Threaded bolt | 213 399 | |
Plating yarn carrier bow 4+5 E10-14 | 272 497 | 506 | Compression spring | 253 058 | ||
Plating yarn carrier bow 4+5 E16-18 | 272 498 |
|
|
| ||
