Connect the bobbin holder

Lay cable

For doing this, proceed as follows:

    1

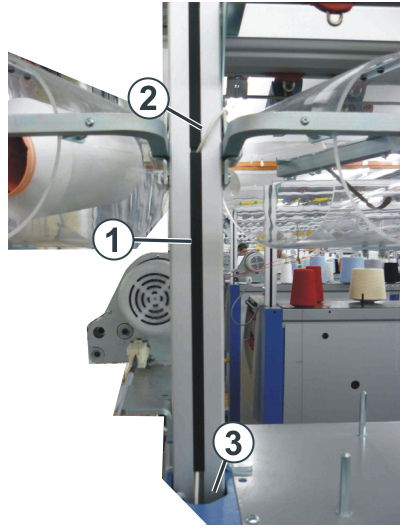

    Remove cover (1).
    2
    Lay the cable (2) into the groove and re-fix the cover (1).
    3
    Lay the cable through the opening (3) to the interior of the machine.
    4
    Repeat the process on the other machine side.

Plug in the cable

The cable of the bobbin holder is plugged into the cable of the lateral yarn tensioners. A Y-cable is used for this. Both devices use the same power supply and error message.

For doing this, proceed as follows:

    1
    Push the covers on the right-hand side of the machine to the side.
    2

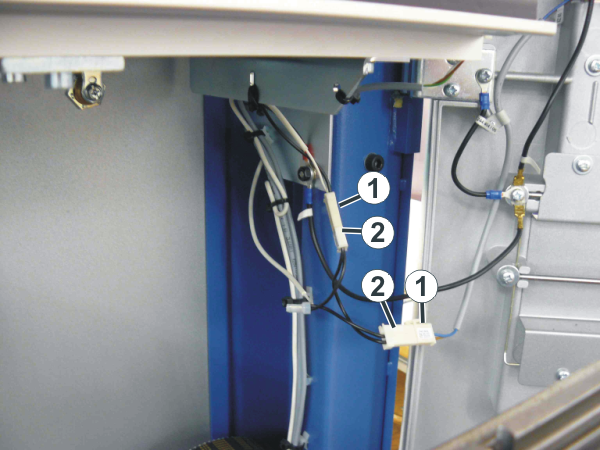

    Unplug the plug connection (1) of the lateral yarn tensioners.
    3
    Plug the plugs (2) (Y-cable) of the bobbin holder into the sockets (1).
    4
    Repeat the process on the left machine side.
