Allocate modules for the selvedge

Allocate modules for the 1x1 edge to the selvedges:

    1
    Allocate the modules for the 1x1 edge to the left and right selvedges of the basic elements no. 3, 4, 5.

Left edge

Edge: no.

Module name

Function

3

10N_20R_RR>1x1_left_above

Fading-out

4

10N_2C_><_NF_L

Narrowing

5

10N_5R_1x1>RR_L

Fading-out

    2

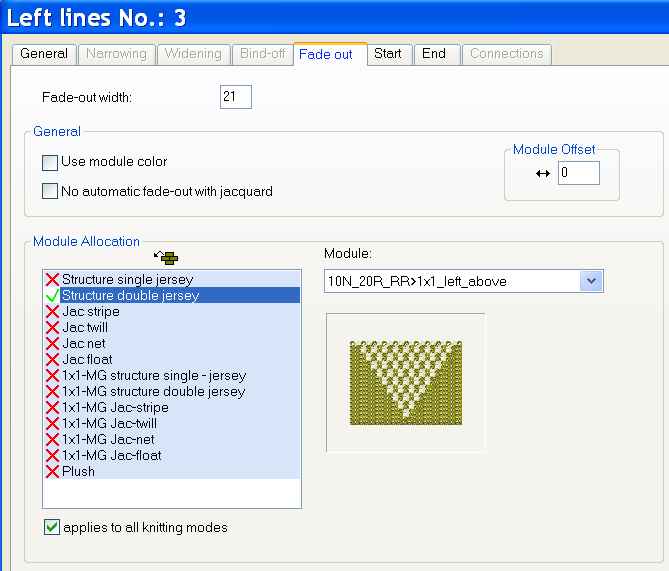

    Allocate the module to the edge no. 3 under fade-out with drag-and-drop.
  1. the fade-out width will be entered automatically.
    2. 3

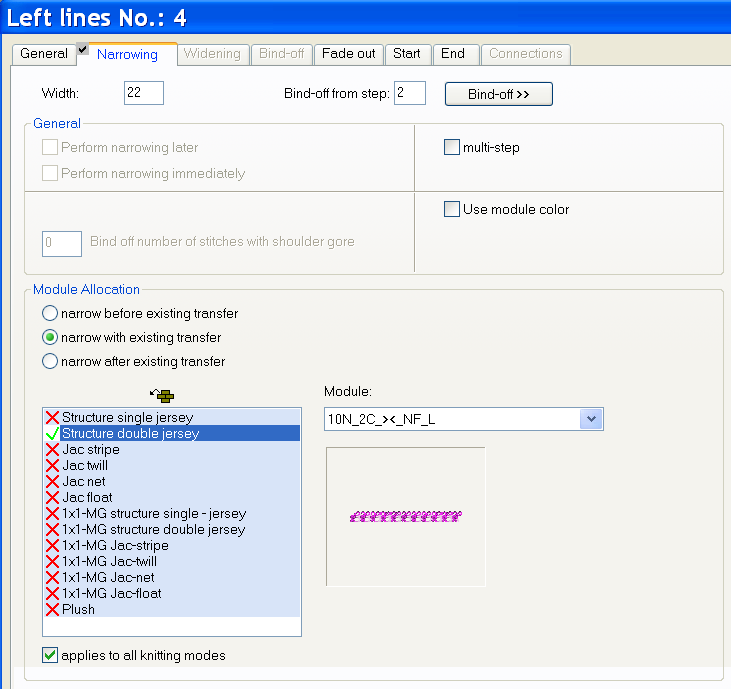

    Allocate the module under narrowing to the edge no. 4.
  1. The width will be entered automatically.
    2. 4

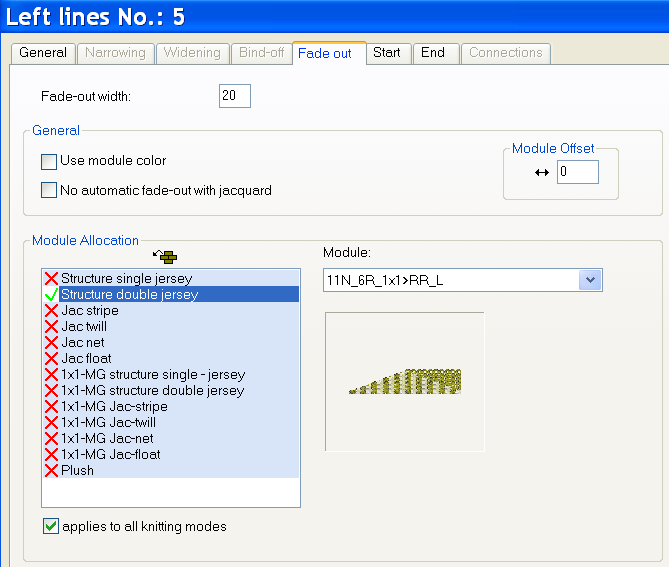

    Allocate the module under fade-out to the edge no. 5.
  1. the fade-out width will be entered automatically.
    2. 5
    Allocate the fade-out and narrowing modules of the right side to the right side edges of the basic elements no. 3, 4, 5.

Left edge

Edge: no.

Module name

Function

3

10N_20R_RR>1x1_right_above

Fading-out

4

10N_2C_><_NF_R

Narrowing

5

10N_5R_1x1>RR_R

Fading-out

    6
    Save the shape via the File / Save or Save As… menu.
  1. The shape will be saved in the shp format.
    7
    Close the Shape Editor with .
