Create shape: F-Shoulder Sleeve

I. Generate a front in the Shape Editor:

    1
    Open the Shape editor via Shape /Shape Editor (Generate or Edit Shapes)....
    2
    Select the k&w body front entry in the Type selection list under General shape data.
    3
    Set Input format to Stitches.
    4
    Activate mirrored under Elements.
    5
    Specify starting width.
    6
    Create the table under Left Lines and enter the values for the front.

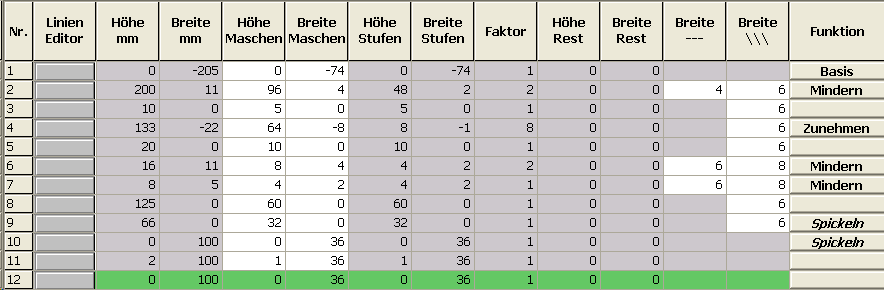

Basic element Front

    7
    Allocate the desired attributes Narrowing and Widening to the edges under Function.
    8
    Allocate the Goring function to the edges (no.9+10) under Function in the General tab.
    9
    Allocate the following attributes to the edges (no. 9+10) under Function in the Bind-off tab.

Setting

Line 9+ 10

Binding-off

Directory

Standard

Module
  • French shoulder above
  • French shoulder underneath
    10
    Save shape.

II. Insert the gore element in the front:

  1. The shape French shoulder Front is open in the Shape editor.
    1
    Generate a new element in the Shape Editor with .
    2
    Select the Gore entry in the Type section list.
    3
    Create the table under Left Lines and enter the values for the element.

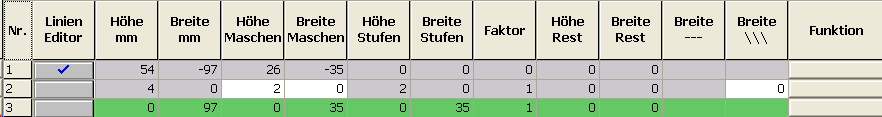

Gore element

Line Editor Line 1 left

Factor
Grouped

Group

Height
Steps

Width
Steps

Factor

Width
- - -

Width
\ \ \





26

-35







1

0

0

-4

1





1

0

2

-4

1





1

0

2

-3

5





1

0

2

-2

5





1

0

2

-1

2





    4
    Enter the distance to the end line under y-distance to...: 1
    5
    Save shape.

III. Generate a back in the Shape editor:

    1
    Open the Shape editor via Shape /Shape Editor (Generate or Edit Shapes)....
    2
    Select the k&w body back entry in the Type selection menu under General shape data.
    3
    Set Input format to Stitches.
    4
    Deactivate mirrored under Elements.
    5
    Specify starting width.
    6
    Create the table under Left Lines and enter the values for the left back.

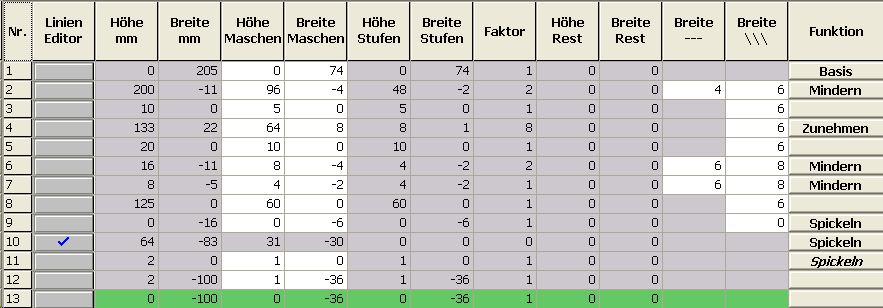

Basic element left back

    7
    Create the table under Right Lines and enter the values for the right back.

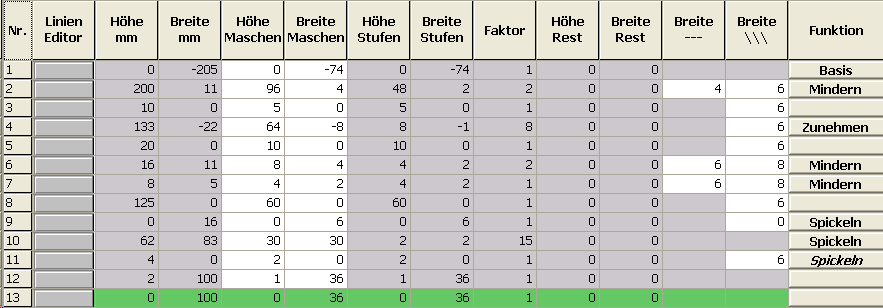

Basic element right back

Line Editor Line 10 right

Factor
Grouped

Group

Height
Steps

Width
Steps

Factor

Width
- - -

Width
\ \ \





31

-30







1

0

1

-2

1





1

0

2

-2

14





1

0

2

0

1





    8
    In the left and right back under Function allocate the desired attributes to the edges Narrowing and Widening.
    9
    In the left and right back allocate the Goring function to the edges (no. 9+10) under Function in the General tab.
    10
    Allocate the following attributes to the edges (no. 9+10) of the left and right back under Function in the Bind-off tab:

Setting

Line 9+ 10

Binding-off

Directory

Standard

Module
  • French shoulder above
  • French shoulder underneath
    11
    In the left and right back allocate the Goring function to the edge (no. 11) under Function in the General tab.
    12
    Allocate the following attributes to the edge (no. 11) of the left back under Function in the Bind-off and Fade out tab:

Setting

Line 11 left

Binding-off

Directory

Standard

Module
  • French shoulder above
  • French shoulder underneath

Fade out

Fade-out width

6

Module
  • Knitting off Shoulder gore L1 6 stitches not knitting >
    13
    Allocate the following attributes to the edge (no. 11) of the right back under Function in the Bind-off and Fade out tab:

Setting

Line 11 right

Binding-off

Directory

Standard

Module
  • French shoulder above
  • French shoulder underneath

Fade out

Fade-out width

6

Module
  • Knitting off Shoulder gore L1 6 stitches not knitting <
    14
    Save shape.

IV. Insert the gore element in the back:

  1. The shape French shoulder Back is open in the Shape editor.
    1
    Generate a new element in the Shape Editor with .
    2
    Select the Gore entry in the Type section list.
    3
    Create the table under Left Lines and enter the values for the element.

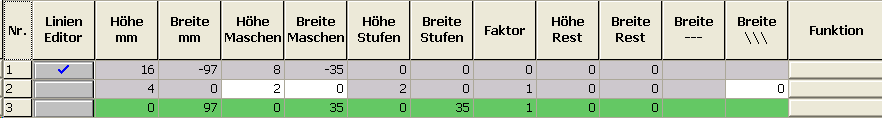

Gore element

Line Editor Line 1 left

Factor
Grouped

Group

Height
Steps

Width
Steps

Factor

Width
- - -

Width
\ \ \





8

-35







1

0

0

-12

1





1

0

2

-9

1





1

0

2

-7

5





1

0

2

-5

5





1

0

2

-2

2





    4
    Enter the distance to the end line under y-distance to...: 1
    5
    Save shape.

V. Generate the element for sleeve in the Shape editor:

    1
    Open the shape editor via Shape /Shape Editor (Generate or Edit Shapes)....
    2
    Select the k&w Sleeve entry in the Type selection menu under General shape data.
    3
    Enter the values in the table:

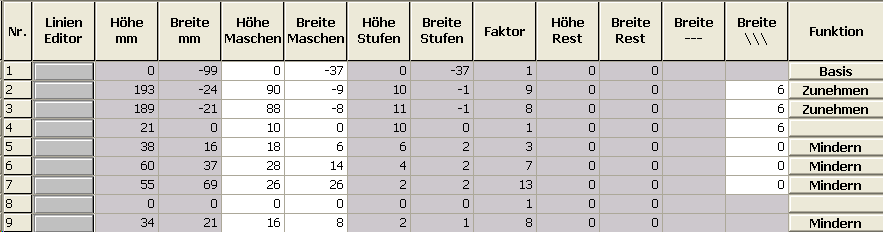

Sleeve

    4
    Allocate the desired attributes in the Widening and Narrowing tabs to the edges under Function.
    5
    Allocate the Narrowing function to the edge (no.9) under Function in the General tab.
    6
    Allocate the following attributes to the edge (no. 11) in the Narrowing and Connections tab.

Line 9

Narrowing

Fade-out type

no

Fade-out width

0

Type of narrowing
  • F-Shoulder Sleeve

Narrowing width

Narrow entire width of sleeve

connections
  • k&w remaining narrowing
  • k&w Non-knitting
    7
    Save shape.

VI. Generate element for the collar:

    1
    Open the shape editor via Shape / Generate/Edit Shape....
    2
    Select the k&w collar entry in the Type selection menu under General shape data.
    3
    Enter the values for the collar in the table under Left lines.

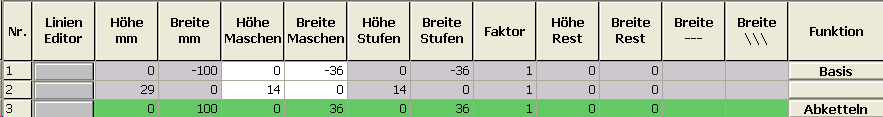

Collar

    4
    Allocate bind-off to the end line under Function in the General tab.
    5
    Select the Bind-off tab and choose the Neck binding-off module
    6
    Save the element for the collar.

You have to save all shape elements in the same directory.
