Connection of tubes

Function

Symbol

Meaning

Connection of tubes

Prepare
The selected shape elements are transferred to a needle bed. By this the transferring inward of other area is prepared.

Transfer Inward
The selected shape elements are transferred inward to the left or right.

k&w Arrangement for sleeve-body connection

k&w Arrangement for Connection of Tubes

5

Knitting rows with subsequent transfer of all stitches from L1 to L0 (= pre-widening) in both body elements. Then the right sleeve is knit and then both sleeves are transferred to the body (= transferring inward).

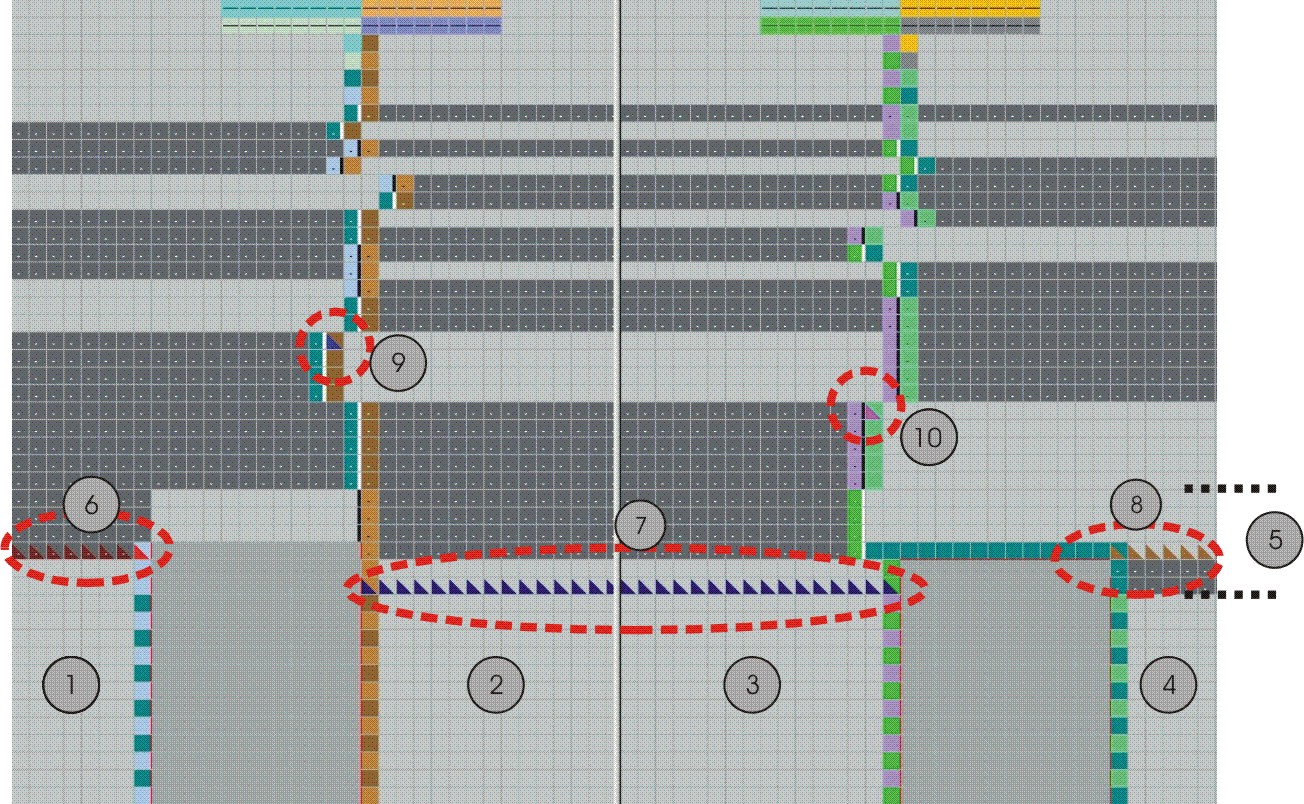

Shape view with inserted k&w Arrangement before cutting out

1

Left sleeve element

2

Left body element

3

Right body element

4

Right sleeve element

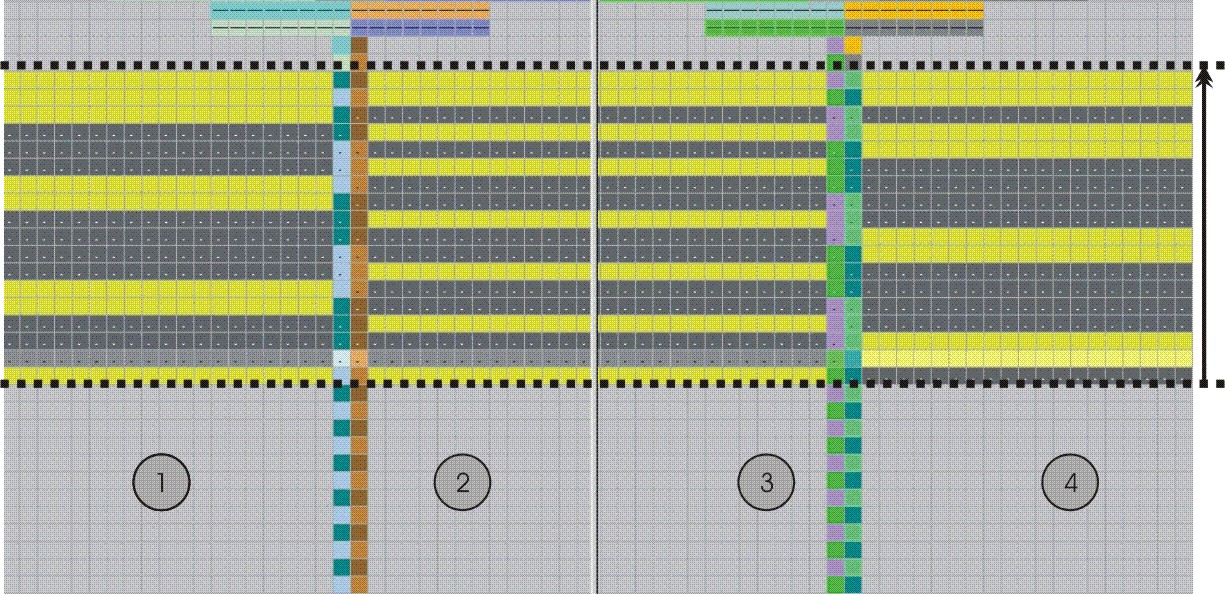

Shape view after cutting out

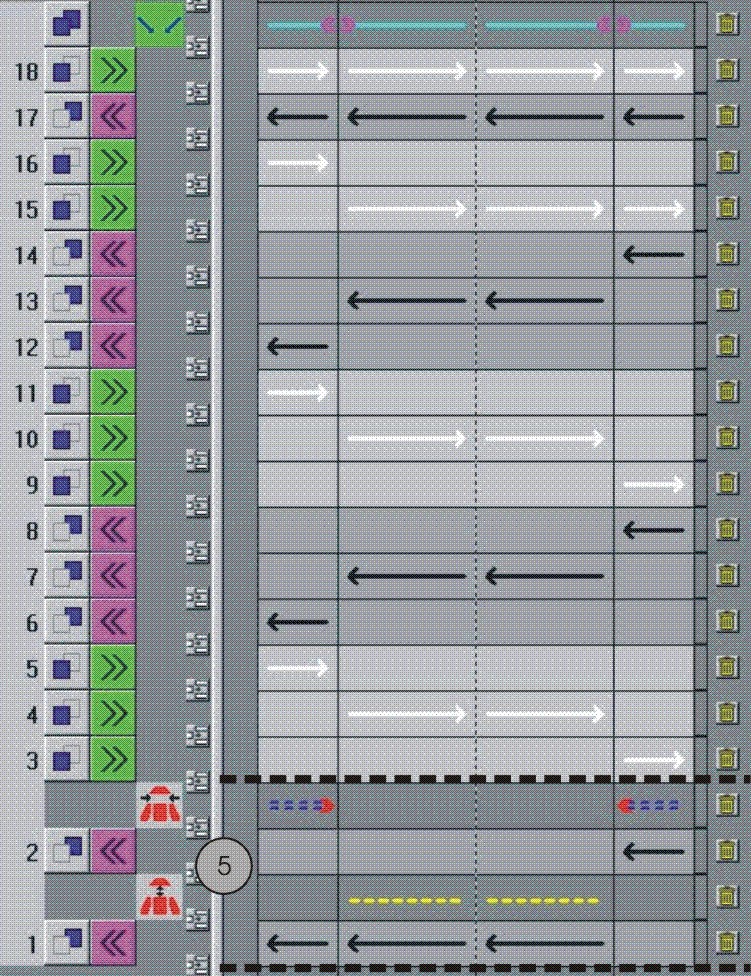

Presentation in technical rows

6

Transferring inward of left sleeve (Transferring inward >>)
A module is allocated to the markings in the shape view under Shape attributes....

7

Prepare
A module is allocated to the markings in the shape view under Shape attributes....

8

Transferring inward of right sleeve (Transferring inward <<)
A module is allocated to the markings in the shape view under Shape attributes....

9

Marking for left connection.
A module is allocated to the markings in the shape view under Shape attributes....

The positioning of the module is always automatically on the knitting row following directly after transferring inward.

Note:
If a Color Arrangement is used for the connection, then this marking is not present. The left connection is knitted based on the CA.

10

Marking for right connection.
A module is allocated to the markings in the shape view under Shape attributes....

Note:
If a Color Arrangement is used for the connection, then this marking is not present. The right connection is knitted based on the CA.

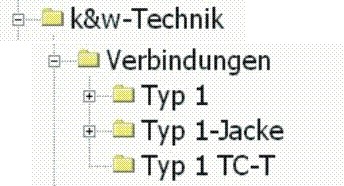

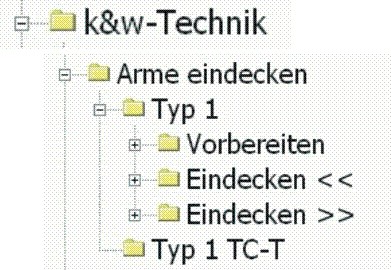

Modules for the Sleeve-Body connection in the Module Explorer

Module for connecting the left sleeve to the body.

Old version of the module:
Not suitable for multi-color knitting in the area of the sleeve-body connection.

Module for connecting the left sleeve to the body.

Module for connecting the left sleeve to the body.

New version of the module:
The module is for flexible application, as up to 4 colors can be knit in the sleeve-body connection.

Module for connecting the right sleeve to the body.

You have to allocate the modules to the corresponding markings of the sleeve body connection in the k&w Arrangement Editor via Attributes.
