Step 1: Creating shape

    1
    Open the Shape editor via Shape /Shape Editor (Generate or Edit Shapes)....
    2
    Under General Shape Data select the corresponding k&w ... shape type.
    2. 3
    Set Input format to Stitches.
    4
    Activate mirrored under Elements.
    5

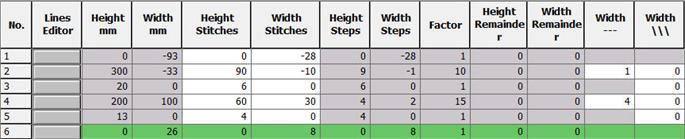

    Enter coordinates and allocate attributes.

Front

    1

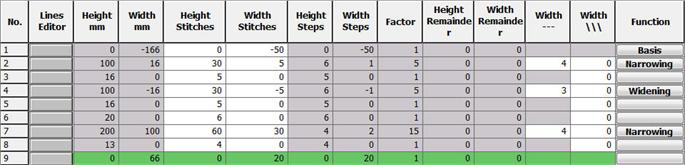

    Under Function allocate the desired attribute to the Narrowing edge.
    2
    Under Function allocate the Closing-Stitch Layers apart attribute to the Widening edge.

Shape element Neck gore in the front

    3
    Create a new element and under Type select the Gore entry.
    4

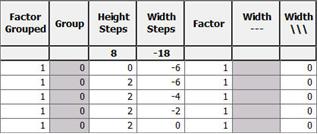

    Specify the coordinates for the Neck gore via the Line editor.
  1. Option Line editor: the gore steps can be repeated via the factor.
    5
    Specify the neck gore distance until the end line.

Back

    1
    Under Function allocate the desired attribute to the Narrowing edge.
    2
    Under Function allocate the Closing-Stitch Layers apart attribute to the Widening edge.

Shape element Neck gore in the back

    3
    Generate a new element in the Shape Editor with the button.
    4
    Select the Gore entry in the Type section list.
    5

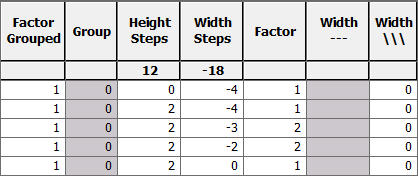

    Specify the coordinates for the Neck gore.
    2. 6
    Specify the neck gore distance until the end line.

Sleeve

    1
    Allocate the desired attributes Widening and Narrowing to the edges under Function.

Collar

    1
    Allocate the end line to the Binding-off tab under Function.
    2
    Select the Neck or the Fast cut-out binding-off module.

To the next step 2: Loading and Adjusting Shape in the ShapeWizard
