k&w Options for Cut-out

You can make pattern related settings in the Configuration k&w dialog box before cutting out.

    1
    Cut out the shape with in the Steps of Processing toolbar.

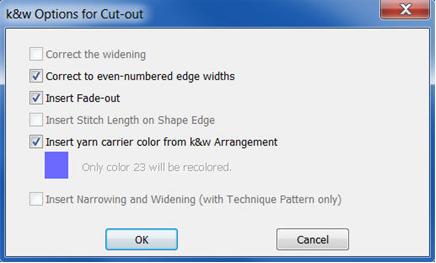

  1. The k&w Options for Cut out dialog box appears.

Options



Function

Correct the widening



No correction when Cutting out .

:

The correction takes place when expanding .

Correct to even-numbered edge widths

Activated automatically with odd-numbered edge widths.

With even-numbered edge widths

Insert Fade-out

The specifications in the Fade-out tab of the shape attributes will be entered.

The specifications in the Fade-out tab of the shape attributes will not be entered.

Insert Stitch Length on Shape Edge



Selection only active, if settings for stitch length on shape edge are present in the shape.

Specifications are inserted

Specifications are not inserted

Insert yarn carrier color from the k&w arrangement

The yarn carrier colors specified for the different shape elements in the k&w Arrangement are applied to the pattern.

The yarn carrier colors specified for the different shape elements in the k&w Arrangement are not applied to the pattern.

:

The basic color #23 (blue) is preserved in the different shape elements.
(For CMS with additional beds, the basic color #9 is used)

Inserting Narrowing and Widening
(only with Technical Patterns)



Only active with M1 k&w patterns.

    1
    Confirm the settings in the dialog box with OK.
  1. The Insert/Replace k&w Start dialog box appears.
