Possibilities with a narrowing edge with the stitches above

Different narrowing edges

Narrowing edge underneath (default)

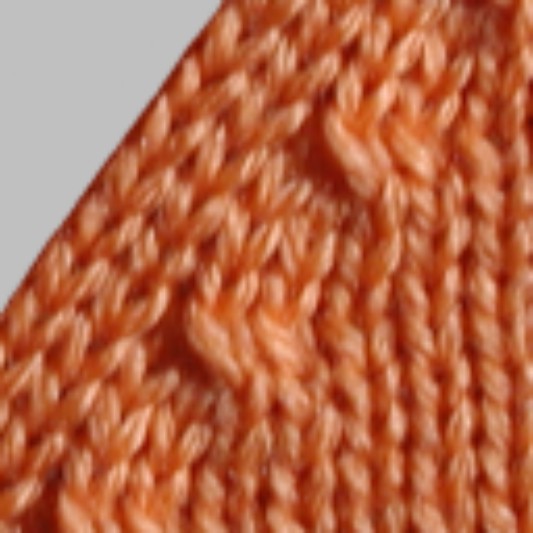

Narrowing edge above

Generate modules of your own for narrowing edges above:

    1
    Open the Modul Explorer of Database via Module / Module Explorer of Database...
    2
    Open the Modules / Technique / Narrowing / Structure Single Jersey / SJ separate transfer or SJ combined transfer module group in the Module Explorer.
    3
    Copy the technical container modules Structure Single Jersey ==> and Structure Single Jersey <==.
    4
    Rename the copied modules and save them to a module group of your own.
    5
    Via the Module / New / Module… open the New module dialog box.
    6
    Make settings in the dialog box and close it with OK.
  1. The Properties of dialog box appears.
    7
    Close the dialog box with OK.
  1. The Module Editor dialog box appears.
    8
    Draw the transferring with Needle Actions in the Module Editor.
    9
    Close the dialog box with .
    10
    Reply the Save Module to Database? prompt with YES.
  1. The module is saved in the Module Explorer of Database under New Modules.
    11
    Allocate the new module to both of the technical container modules.

left edge container module

right edge container module

    12
    Save container module.
    Create your own module group under Modules / Technical / Narrowing / Structure single jersey.
    13
    Select the module group via the selection list in the Shape Editor.
    -  or  -
    Allocate the module group with drag&drop directly to the corresponding narrowing edges of the shape under Narrowing.

Use a STOLL module for the narrowing edge above:

Modules in the Module Explorer of Database:

    1
    Select the modules in the Shape Editor under Function in the Narrowing tab.
    -  or  -
    Allocate the modules to the shape via the shape attributes in the Symbol View.
