Modifying the 'Global Pattern Parameters' File

Important pattern data are saved as Stoll default in these files.

globalparameters.mdv
File for all machines that do not need any specific parameters.
globalparameters_B.mdv
File for all machines with belt take-down that do not need any specific parameters.
globalparameters_xxx.mdv / globalparameters_xxx_B.mdv
Files for special machine types (classification number) that need machine specific parameters.

I. Create a private file for global pattern parameters:

1: With open the M1plus.

2: Call up the Pattern Parameters / Global Pattern Parameters... menu.

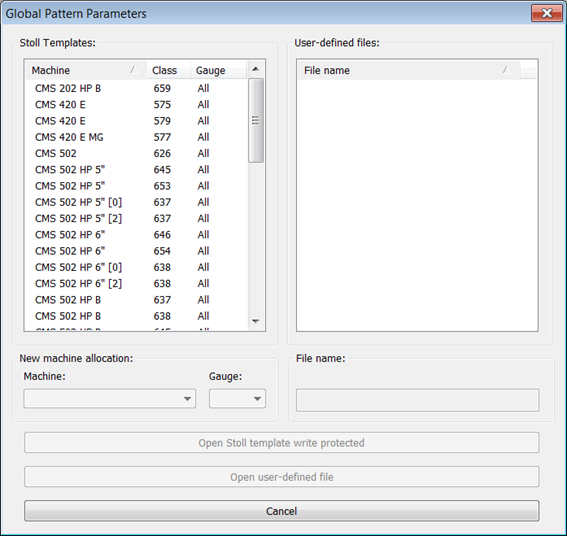

The Global Pattern Parameters dialog is displayed.


New machine allocation:	Machine	Selection of the machine type (classification) for the (private) file to be newly created with your own specifications
New machine allocation:	Gauge	Selection of the machine gauge for gauge dependent files
File name	Enter the name for the Private file
Key Open Stoll template write protected	Open the selected Stoll template as write-protected file.
Key Create New File	Creating a copy of the selected Stoll template with a new file name : The copy is saved with the specified file name in the Private folder under the D:/Stoll/M1plus/<Version>/ConfigData/Private … path.
Open user-defined file button	Opening a selected file from the list under User-defined Files

3: Select the desired template for creating your one file under Stoll templates.

4: Select another machine type and / or gauge if necessary.

5: Enter new file name.

6: Press the Create New File key.

The Stoll template is copied and saved under the new file name in the Private folder under D:/Stoll/M1plus/<Version>/ConfigData/Private.

7: Select the private file in the User-defined Files section.

8: Click the Open user-defined file button.

The dialog box with the file name is opened.

GlobalParameters
Configuration	Default	Sintral
		Knitting Areas
		Transfer
		Intarsia
		Comb, Clamping
		More Settings
	k&w	Settings in Configuration for the knit and wear mode
	Stitch length table	The corresponding tables are displayed.
	Fabric take-down table
	Auxiliary Take-down Table
	Belt take-down
	Carriage speed table
	Racking Correction Table
	Sintral Functions
	NPS Table
	PNP Table
	YPI Table

II. Carry out changes in Configuration:

1: In the dialog box open the Configuration dialog with the Standard button.

2: Select the desired tab and make changes.

3: Save the changed settings in the private file underD:/Stoll/M1plus/<Version>/ConfigData/Private by clicking Apply or OK.

The private files with the changes are retained in the Private folder in case of software installation.
The files in the Private folder are directly selected and used during the pattern creation.
During the software installation, a backup of the Private folder will be generated:
D:/Stoll/M1plus/<Version>/ConfigDataBackup/ Private.

III. Changing the values in the tables of the different Pattern Parameters:

1: Open the desired table and carry out the changes.

2: Close the table with .

IV. Add a new entry in the tables of the different Pattern Parameters:

1: Open the desired table.

2: Select Insert new entry via the context menu of the tables.

A new entry is added.

3: Allocate values and descriptions to the new entries.

4: Close the table with .

V. Save the changes in the file:

1: Close the dialog box with .

The query Save changes as... appears.

2: Confirm the query with Yes.

The changes will be saved under the D:/Stoll/M1plus/<Versionnummer>/ConfigData/Private/xxx.mdv path.
