Draw color jacquard with different reverse sides

Draw the Jacquard motif:

    1
    Draw different multi-color motifs with Yarn or Yarn carrier colors
    - or -
    Select pattern elements in the Module Explorer under Stoll / Pattern elements / MT-Jacquard and insert them.
    2
    Select the rows above the area of the Jacquard.
    3

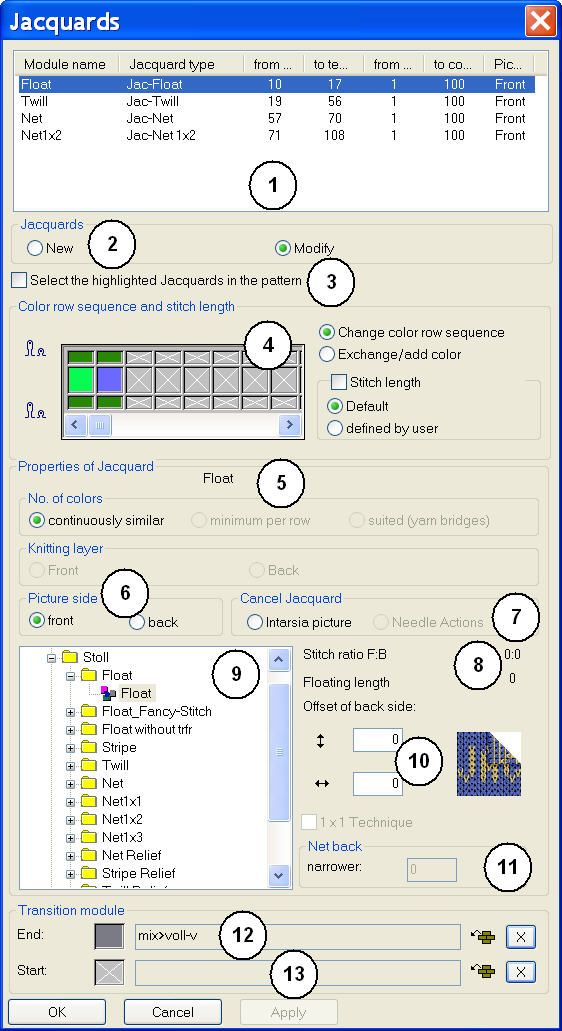

    Call up the Jacquards dialog box via the Edit / Generate or Edit Jacquard... menu.

No.

Meaning

1

List of the inserted Jacquard generators

2

New

Insert a new Jacquard generator into an area.

Modify

Change the inserted Jacquard generator

3

The Jacquard selected in the list (1) will not be displayed as selection in the pattern.

The Jacquard selected in the list (1) will be displayed as selection in the pattern.

4

Change of the color sequence and stitch length

5

Properties of Jacquard

continuously similar

All colors of the selection will be knitted uniformly according to the color sequence.

minimum per row

Only the colors, which are present in the respective row will be processed.

suited (yarn bridges)

Insert of yarn bridges with Intarsia

6

Select Jacquard picture side front or back

7

Cancel Jacquard

Intarsia picture

Remove the Jacquard generator.
Display motif as color picture

Needle Actions

Remove the Jacquard generator.
Display motif with needle actions.
: Not in the Design Mode

8
  • Stitch ratio (front : back)
  • maximum floating length of the Jacquard generator

9

Pick list of the Jacquard generators

10

Shift the starting point of the Jacquard back

: The jacquard generator is placed in the first pattern row after the start and in the first column at the left border by default.

11

Narrow the width of the ladder back of the selected jacquard area.

: The edge is replaced by a jacquard float (yarn bridges).

12

End module for the transition at the end of a Jacquard

13

Start module for the transition at the beginning of a Jacquard

    4
    Select the desired Jacquard generator and insert it via Apply.
    5
    Proceed in the same way in the other Jacquard areas.
    6
    Close the dialog box with OK.

Module Support

You can open the Module Support for the selected Jacquard module with the ? button.
