Configuration dialog: Combine the yarn carriers automatically

Several yarn carriers can be combined in one system by the technical processing (knitting sequence) to optimize the production time.

The yarn carriers will be combined only if this is possible based on the field distances. The result is visible in the Symbol View after the technical processing.

    1
    Activate the Combine Yarn Carriers function via Pattern Parameters / Configuration... in the Additional settings tab in the Yarn carrier section.

Methods of combining the yarn carriers

Default

Combining the yarn carriers automatically.

: Result can not be influenced.

Shortest run time.

: Problems with the tuck structure for Intarsia possible.

Secure yarn insertion at color widening

Automatic, uniform and optimized combining of the yarn carriers with Intarsia.
With an optimized knitting process for secure yarn insertion of the tuck binding.

: Steady Intarsia binding will be achieved.

Average run time.

: No problems with the Intarsia binding.

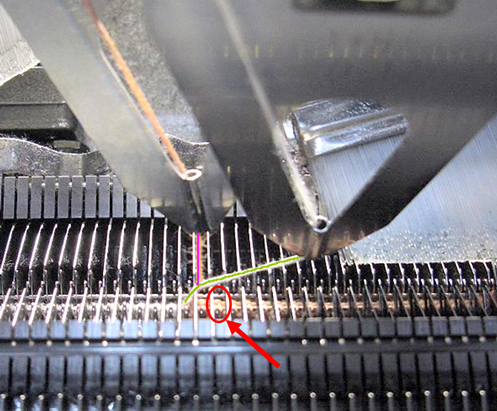

Distance of the yarn carrier correction

Additional yarn carrier distance for corrections on the machine

Adjust the safety distance in order to make corrections on the machine.

You can specify a shorter yarn carrier distance especially with coarser gauges.
Standard setting: 0
