Possible jacquard selection with 3-colored motifs (devoré knit / plush)

Insert different jacquards.

The motif is drawn with 3 colors.

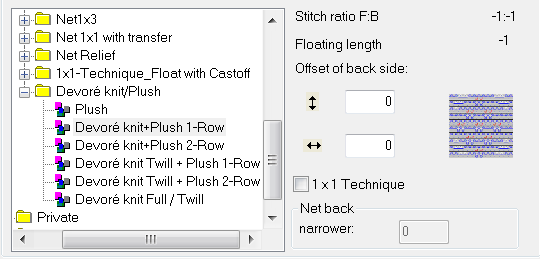

1: Call up the Jacquards dialog box via the Edit / Generate or Edit Jacquard... menu.

2: Select the desired jacquard generator under the Jacquard / Stoll section and insert.

Selection options:

Plush
Devoré knit + Plush 1-Row
Devoré knit + Plush 2-Row
Devoré knit Twill + Plush 1-Row
Devoré knit Twill + Plush 2-Row
Devoré knit Full / Twill

Plush:

Representation of the module	Function
	The binding thread works on all needles leading on the back and binds the plush loops formed in every row following in the front and which are cast-off then. Only one plush loop is formed at the selvedge of the motif.
Stitch line
Fabric View	Front	Rear
Fabric View

Devoré knit + Plush 1-Row:

Representation of the module	Function
	The binding thread works on all needles leading on the back and binds the plush loops formed in every second row following in the front and which are cast-off then.
Stitch line
Fabric View	Front	Rear
Fabric View

Devoré knit + Plush 2-Row:

Representation of the module	Function
	The binding thread works on all needles and binds the plush loops formed in every row. Both the plush loops formed consecutively are cast-off afterwards. An outline change of the motif is possible only after 2 rows.
Stitch line
Fabric View	Front	Rear
Fabric View

Devoré knit Twill + Plush 1-Row:

Representation of the module	Function
	The binding thread works the areas for devoré within twill and binds the plush loops formed in every second row following in the front and which are cast-off then.
Stitch line
Fabric View	Front	Rear
Fabric View

Devoré knit Twill + Plush 2-Row:

Representation of the module	Function
	The binding thread works the areas for devoré within twill and binds the plush loops formed in every row. Only one tuck loop is formed at the edge of the motif. An outline change of the motif is possible only after 2 rows.
Stitch line
Fabric View	Front	Rear
Fabric View

Devoré knit Full / Twill:

Representation of the module	Function
	The binding thread works on all needles the areas for devoré within twill and the area of the motif thread.
Stitch line
Fabric View	Front	Rear
Fabric View
