Knitting Technique
- Plush requires two knitting systems. Therefore, a machine with at least three systems is necessary to carry out all the knitting functions as knitting a comb start or rib, or to transfer.
- The cams are mounted in the two systems at the rear center and right, in order to use the front knitting systems for clamping and cutting without restrictions.
- Only the left system can transfer from or to the rear.
|
Knitting process: | ||
|---|---|---|
1 |

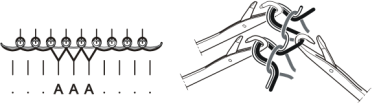

| Insert binding thread without stitch formation |
2 |

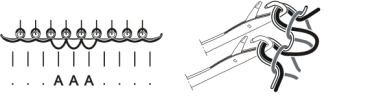

| Insert the plush thread and knit together with the binding thread |
3 |

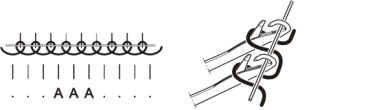

| Cast-off |

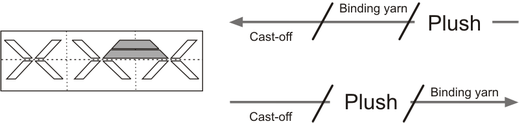

Included in a carriage stroke, the process looks like this:
内置毛圈三角的两个系统必须被视为一个整体。
这就意味着：如果在第一个系统中选了一颗针，在第二个系统中同样的针也将被选择。不可能出现在第二个系统中选择另一颗针的情况，因为针踵将无法进入三角通道。这将导致织针损坏。
The converted knitting systems cannot use the presser foot.
Create plush pattern on pattern workstation M1 and M1plus

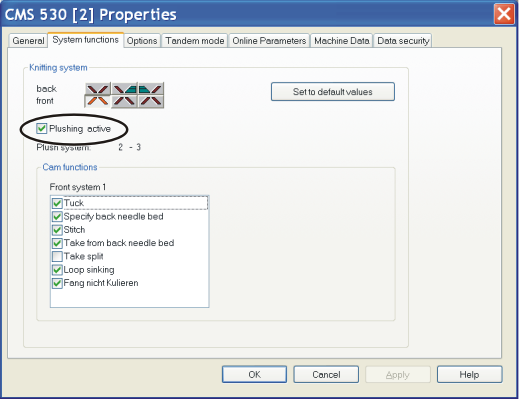

Change the machine properties in the machine explorer before creating a plush pattern. You can only change the properties on an Own machine.
(Path: Tools -> Machine Explorer-> Select Own Machine -> Tab System functions)
- 1
- Activate check box in field Plush active.
- 2
- A message appears and asks you whether the cam box functions for the plush knitting are to be adapted. Confirm this with Ok.
- When generating a pattern, the knitting function Plush is carried out in the knitting systems which have been planned for this.

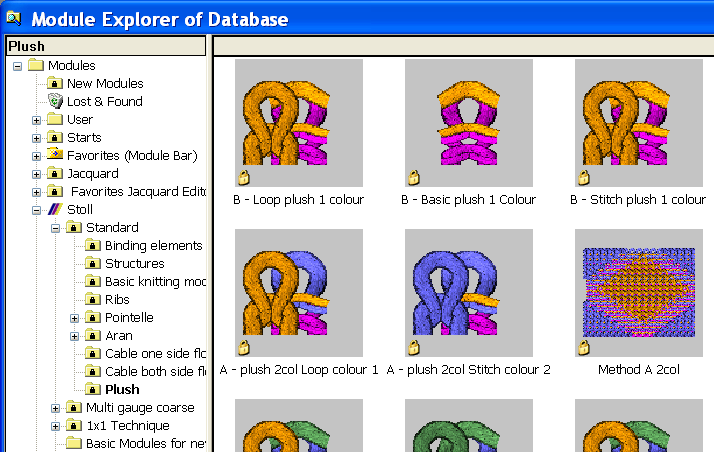

For generating a plush pattern, you can use the plush modules
(Path: Module -> Module Explorer Database -> Modules -> Stoll -> Standard -> Plush)
The converted knitting systems cannot use the presser foot.
Recommendation
When generating the plush pattern, ensure that an additional knitting row is inserted after each plush row in order to avoid an accumulation of plush loops. This also ensures a reliable casting-off of the plush loops.
