Working with the auxiliary take-down (W+F) Tab

I. Open auxiliary take-down (W+F) tab and select / change the entry:

  1. Design Pattern document window is selected.
  2. The Auxiliary Take-down (W+F) control column is displayed.
    1
    Open the selection list in the Home ribbon at Tool Windows and select Pattern Parameters .
    - or -
    Directly under Parameter click the Pattern Parameters icon.
  1. The Pattern Parameters tool window appears.
    2. 2
    Select the Take-down section.
    3
    Auxiliary Take-down (W+F) tab / Default
    - or -
    Select User .
    4
    Select the desired auxiliary take-down value in the column and enter it in the control column.
  1. The default setting will be overwritten in these design rows.

Options in the toolbar

Selecting the default value to enter in the control column

Deleting an entry in the control column

Show Pattern-related Values

Hide Pattern-related Values

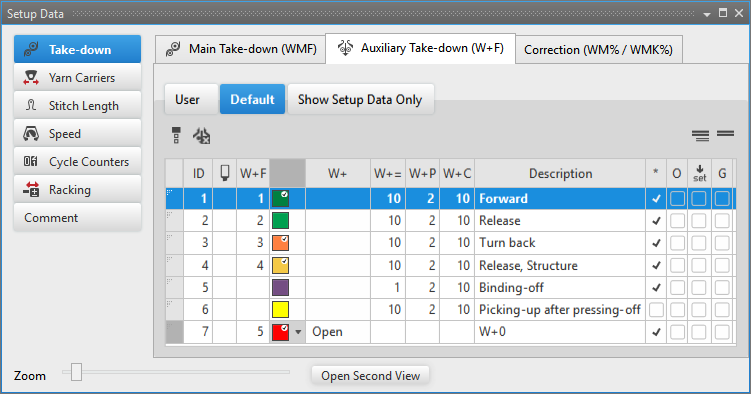

Column labels of the auxiliary take-down (W+F) tool window

Column

Display

ID / IDv / ID^

Consecutive numbering and sorting of the entries

Selecting the auxiliary take-down value to enter it in the control column

W+F

Index for the indirect allocation of the auxiliary take-down value
(Auxiliary take-down menu)

Color

Display of colors to enter in the control columns

W+

Open or close the auxiliary take-down

W+=

Speed of auxiliary take-down

W+P

Value for the contact pressure of the auxiliary take-down

W+C

Specification of the system number for the auxiliary take-down control

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Default table available.

Entry is defined as favorite, meaning the entry is available within the User table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Standard)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Default or User table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Default or User table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

II. Add a new entry in the auxiliary take-down (W+F) tab:

New entries can only be added in the User tab.

  1. Design Pattern document window is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Take-down section.
    3
    Select the Auxiliary Take-down (W+F) / User tab.
    4
    Set the cursor in the left table column to the * row.
    5
    With the RMB open the context menu and select Add row.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

The changes will be saved to the *.spf file when saving the project.

III. Apply entry of the Auxiliary take-down (W+F) tab to the pattern:

  1. Design Pattern document window is selected.
  2. The Auxiliary take-down (W+F) control column is displayed.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Take-down section.
    3
    Select the Auxiliary Take-down (W+F) / User tab.
    4
    Select the desired auxiliary take-down value in the column.
    5
    Enter the selected auxiliary take-down value in the control column.
