Create a new pattern project with one pattern

Dialog Box: New Pattern Project

1: Name
Enter the desired name for the pattern project.
: The first design pattern automatically receives the same name.

2: Machine

Display of the selected machine type.
Press the Change Machine button, to change the machine type:

STOLL :
Selection of a STOLL standard machine
My Machines :
Selection of a machine created by yourself

: With private machines it is possible to allocate machine-specific Options and System Functions.

Open the STOLL tab.
Select the desired machine in the selection list.
Example: CMS 530HP, E 3,5.2, Classification 656

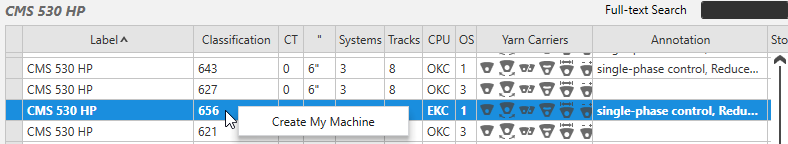

Select the context menu Create My Machine.
Enter the machine name / specifications and confirm with OK.
Select the created machine -> Open the context menu Properties.
Make the desired entries.
: IP address for the Ethernet connection to the machine.

3: Knitting Technique

All Needles:
Design pattern is knitted with all needles (example).
1x1 Technique :
Design Pattern is knit in 1x1 Technique.

4: Filling Elements :

Select the yarn color for the design pattern.
Select the structure element for the design pattern.

5: Dimension

6: Width
Input of the pattern width: 200 stitches.

7: Height
Input of the pattern height: 300 rows.

8: Comb:

Comb Thread
Module :
Usage of the Comb Thread technical module.
: Clamping at Fabric End in the Cast-off Function (RS17=0) : Is automatically enabled, when Comb is selected.

9: Start:

Selection of the module for the Start
Example: Start, 1x1 .
Quantity of Systems:
Selection of the quantity of working Systems for the Start
Example: 1 system

1 system:
The Start is knitted with one system / 1 yarn carrier.
- or -
2 systems :
The Start is knitted with 2 systems / 2 yarn carriers.
: The knitted structure becomes more even due to knitting the start with 1 system.

Elastic Thread:
Selection of the technical module for without / with elastic thread
Protection Yarn :
Selection of a technical module for without / with protection thread.

With Protection Thread :
Preparation rows are knitted with a separate yarn carrier (Technical Color #205). (recommended).
- or -
Without Protection Thread : Preparation rows are knitted with the same yarn carrier as the Start (Technical Color #201) (not recommendable).

: Working with protection thread saves thread because of the usage of cheaper thread as protection thread.

The yarn carrier with the protection thread for the protection rows will be clamped after the start and knitted-in again at the fabric end.
Recommendation:
Use the knot module Float, Lock, Fabric selvedge for the knitting-in of the protection thread in the protection rows at the fabric end.
Result: This way it is avoided that the thread at the fabric selvedge does not lay-in.
Setting in Configuration -> Knitting Ranges -> Protection Rows

Transition:
Selection of the kind of transition from the start to the basic pattern
: An extra NP (NP4) index is assigned to this last row in the start, so that the stitch tension can be changed for a safe transfer.

10: Confirm entries with the OK button.

The pattern project appears.
