Step by Step to 'Pattern-8_1system'

Stoll-ikat plating ®

For Stoll-ikat plating®, two plating colors (= a plating color combination) per pattern row are required for each color change by one system. You can use a different plating color combination in each system. A maximum of 30 changes of position are allowed in one pattern row, where a distance of 2 inches (with 1.0 m/s) between the color changes is to be respected.

  1. A pattern project with the Pattern-8_1system pattern and the desired settings is created.
    1
    To draw select any desired drawing tool under the Drawing group.
    2
    In the Pattern Colors tool window, select the desired pattern colors from the Yarn Colors color palette to draw the motif:
    3
    Draw the desired motif with e.g. yarn color #4 in the Design Pattern (yarn color #31):
    4
    Open the Plating Colors dialog box with in the Pattern Colors tool window.
    5
    Create the desired plating colors:

Stoll-ikat plating ®

Quantity of Plating Colors

Plating Offset

1

1 system

2 Plating Colors

YPI index 1

YPI index 2

2

2 systems

4 Plating Colors

YPI index 3

YPI index 4

3

Start

1 plating color more

YPI index 5

YPI index 6

    6
    Paste the respective yarn colors of P1 and P3 in exchanged order into row P2 and P4.
    7
    For the plating colors that are used for Stoll-ikat plating ®, activate the selection in the 'Ikat' column with .
    8

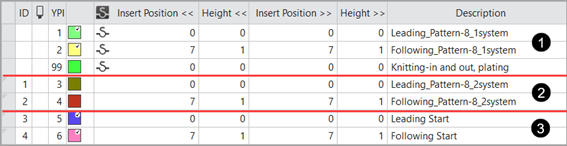

    Open the Plating Offset (YPI) table and assign the desired values.
    9
    Enter the settings for the selected YDI indices in the table.

1

Plating offset values YDI for pattern-8 for 1-sytem knitting

2

Plating offset values YDI for pattern-8 for 2-sytem knitting

3

Plating offset values YDI for the start

    10
    Draw the plating color P1 and P2 into the design pattern Pattern-8_1system.
    11
    Modify the knitting element Start, 2x2 by the plating color P5.
    12
    Select the Shapes tab of the tool window and create a new shape.
    13

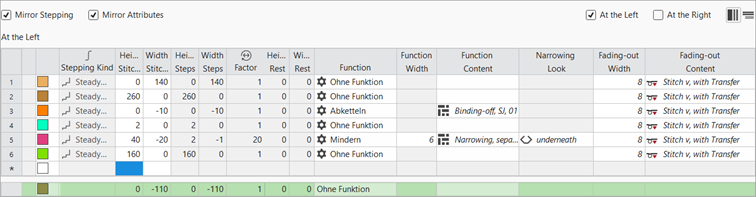

    Insert new shape lines in the table and enter the desired values for the basic shape.

Example: Lined Shape for Pattern-8

Basic Shape: Front

    14
    Allocate the desired attributes to the shape edges.
    15
    Position the shape on the Design Pattern.
    16
    If necessary, make the desired settings in the Yarn Carriers tool window.
    17
    Carry out all the steps of processing.

: The extracted file "ADF530-32W.Pattern-8_1system.zip" can be loaded onto the machine with an USB stick or via Ethernet.
