Step by Step to 'Pattern-14A'

Features of the pattern:

Double jersey structure
Shape adopted to DJ:

Step width for narrowing by 1 needle
Narrowing width 1 needle (no fully fashion marking)
fading-out 1 needle at the right shape edge and at the left edge of the V-neck with Malla delante con transferencia needle action.

Step by Step to 'Pattern-14A'

A pattern project with one pattern and the desired settings is created.

1: To create a project-related lined shape, select the Cortes tab in the tool window.

2: Open the context menu with RMB and select Crear nuevo corte con el tamaño M....

The Nuevo corte de líneas tool window is opened.


Nombre del corte	Name for the shape element
Comentario	Information about the shape

Input Format
Malla		Entry in the table of the lined shape Height by stitches (stitch rows) Width by stitches (wales) : The stepping is converted based on the specification.
Pasos		Entry in the table of the lined shape Height of step by stitches (stitch rows) Width of step by stitches (wales)
Tisaje a mano (vueltas)		Entry in the table of the lined shape Height by courses (1 course corresponds 2 stitch rows) Width by stitches (wales)
		Rules for widening with hand knitting
			Knitting before widening following the start
			Widening before knitting following the start (default setting)
Crear corte a partir de imagen			No images will be used
			Use image as template

3: Make the desired entries:

Nombre del corte: Any
Formato de entrada: Stitch

4: Confirm with the OK key.

The new lined shape (basic shape) is graphically displayed in the Cortes tab and in a new document window New shape xx [size x] as rectangle.

: The default attributes will be used for the shape edges of the lined shape.
Menu Archivo -> Opciones -> Corte de líneas -> Opciones para nuevo corte de líneas

5: Open the docked line table by LMB in the New shape xx [size x] document window.

- or -
Use the graphic displayed in the New shape xx [size x] document window.

The table Corte de líneas with the values of the rectangular shape appears.

: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.

6: Insert new shape lines in the table and enter the desired values for the basic shape with Reflejar escalonamiento.

Rules for a shape stitch-stitch knitting mode (DJ):

Shape Attributes	Rules
Knitting Mode	Malla v - Malla ^
Step width of widening	1 Stitch
Step height of widening	As desired
Quantity of rows without shape modification	As desired
Step width when narrowing	1 needle
Step height when narrowing	As desired
Quantity of needles when narrowing	1 needle - or - As desired (long run time)
Knitting mode for fading-out	Modules of the Knit Explorer: Depósito de elementos de tisaje / Fully Fashion / Ocultar
Fading-out Width	Depending on the selected module
Binding-off	Stepping > 1 needle
Binding-off methods	Remallado, DJ, 01 Remallado, DJ, 02 Remallado, Corte básico, Borde, DJ con fijación, 01 Remallado, Corte básico, Borde, DJ con fijación, 02

7: Allocate the desired attributes to the new shape lines:

Function:

Function content: Menguar, 1 aguja, DJ
Function width: Value 1

Fade-out:

Fade-out content: Malla v, con transferencia
Fade-out width: Value 1

8: Disable the Reflejar atributos check box.

9: Adopt the attributes allocated to the new shape lines (no. 2 - 4):

Basic shape at the left (line 2-4):

Function width: Value 1
Function content: Menguar, 1 aguja, DJ
Fade-out width: Value 0

Basic shape at the right (line 2-4):

Function width: Value 1
Function content: Menguar, 1 aguja, DJ
Fade-out width: Value 0

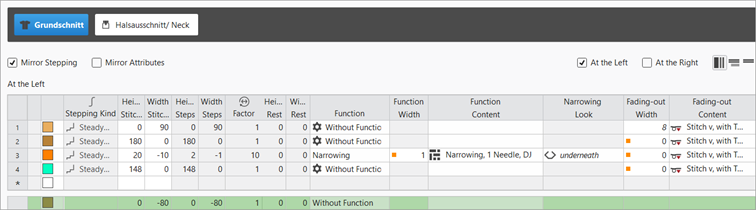

Example: Lined shape for Pattern-14A

Basic Shape: Left Front

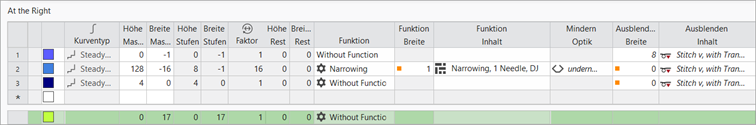

Basic Shape: Right Front

: In this pattern example, an odd numbered fabric piece width is necessary due to the DJ structure.

10: Propiedades de corte menu:
Position the cursor in the opened document window xx -> context menu with RMB -> select Propiedades de corte
- or -
select the shape in the Cortes tool window -> context menu with RMB -> select Propiedades de corte

11: Click on the Anchura impar selection.

The right side of the basic shape is widened by 1 needle.
: This setting also has an effect on the neckline shape element, i.e. the V-neck shape element starts with 1 needle.

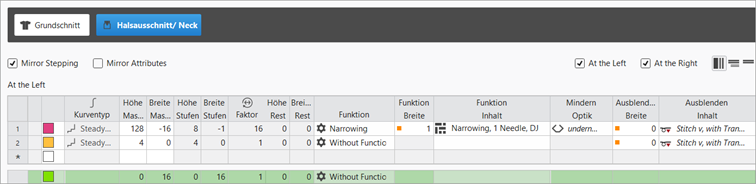

12: In the line table, position the cursor in the area next to the Corte básico button -> open the context menu by RMB -> select Agregar elemento de corte....
