Step by Step to 'Pattern-17'
- A pattern project with one pattern and the desired settings is created.
- 1
- To draw select any desired drawing tool under the Dibujar group.
- 2
- In the Colores de muestra tool window, select the desired pattern colors from the Colores de hilo color palette (e.g. yarn colors # 3 and # 6) to create the pattern element.
- 3
- Draw the desired pattern element in the
Muestra de diseño.
|

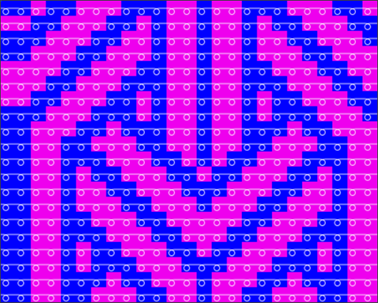

Example of Pattern Element |
|
|
|
Width: 25 stitches Height: 20 rows |
- 4
- Select the height and width of the pattern element.
- 5
- Open the context menu and select Selección -> Crear parte de muestra... .
- Pattern element will be saved locally as
Partes de muestra. - 6
- Select the pattern element for drawing.
- 7
- Draw in the pattern element starting from the third pattern row of the Muestra de diseño.
: Keep a desired quantity of rows without pattern element (e.g. SJ with yarn color #6) at the end of the basic pattern. - 8
- Select the desired total height of pattern rows for CA#1 (e.g. 114 row) in the Pasada de muestra control column.
- 9
- Position the cursor in the pattern area.
- 10
- Call up the context menu and select Selección
/
Generar Color Arrangement...
.
- or -
Click directly the button in the ribbon. - The Color Arrangement Editor appears with the original standard knitting process of the 2 pattern rows.
|

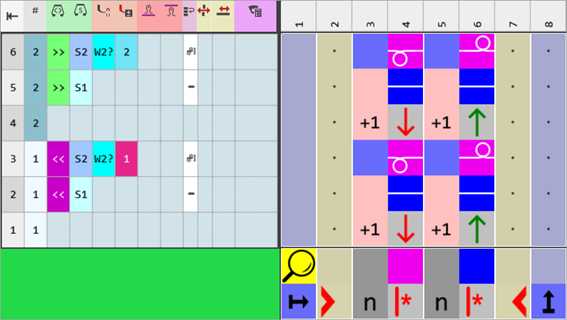

Original for 2 Color Arrangements |
|
|
- 11
- Insert the necessary quantity of rows into the executing area.
- 12
- Draw-in the needle actions for the structure and transferring into the color segments of the yarn colors #6 (pink) and #3 (blue).
- 13
- Make or correct entries in the Números de referencia column.
- 14
- Make entries to the following control columns:
-
Prensador W : - Activate weft yarn presser foot in the technical row 'enclose the weft yarn by knitting'
- Define the type of weft yarn presser foot.
: The
Seleccionar la máquina dialog box graphically displays the position and the set type of weft yarn presser foot.
The following link opens the corresponding chapter of the online help:
: Use the Back button of the browser to go back chapter by chapter.
-
Corrección de prensador : - If necessary, set a different ESCI index for each of both the carriage directions in those technical rows in which the weft yarn presser foot is active.: A placeholder entry in the pattern makes working on the machine easier
The following link opens the corresponding chapter of the online help:
: Use the Back button of the browser to go back chapter by chapter.
-
Ordenar pasadas técnicas : - Into the technical row with the weft yarn:
Pasada de inserción del hilo de trama - Into the technical row to enclose the weft yarn by knitting
Pasada de encerramiento del hilo de trama
The following link opens the corresponding chapter of the online help:
: Use the Back button of the browser to go back chapter by chapter.
-
System -
: You can set a specific knitting system in the CA, but is not mandatory in this case.
|

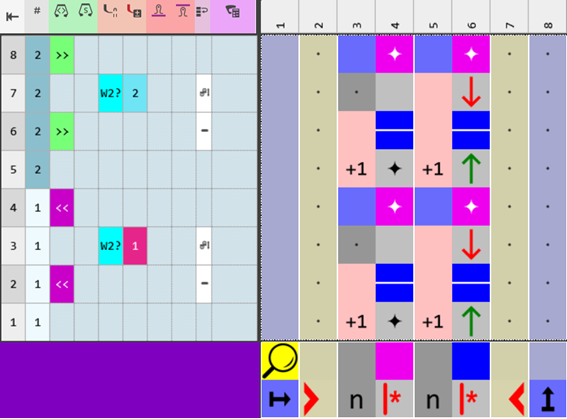

Color Arrangement CA #1 |
|
|
- 15
- Check the generated Color Arrangement on correct entries with the
Verificar button.: The knitting procedure cannot be checked! - 16
- If necessary, in case of a Color Arrangement already used in the design pattern, apply the changes to the basic pattern with the
Aplicar button.
- or -
Close the tool window with
button. - 17
- Close the prompt with the desired button:
-
Save: Color Arrangement is saved locally in the
CA tool window. - Reject: The changes will not be saved.
-
Copy: The changed Color Arrangement is saved as copy in the CA tool window.
- 18
- If necessary, enter the CA#1 via the
control column into the desired rows of the design pattern. - 19
- Select the desired height of pattern rows for allocating CA#2 in the Pasada de muestra control column.
- 20
- Position the cursor in the pattern area.
- 21
- Call up the context menu and select Selección
/ Generar Color Arrangement...
.
- or -
Click directly the button in the ribbon. - The Color Arrangement Editor appears with the original standard knitting process of the 2 pattern rows.
- 22
- Rename the Color Arrangement if necessary.
- 23
- Modify the original Color Arrangement CA#2 as follows:
|

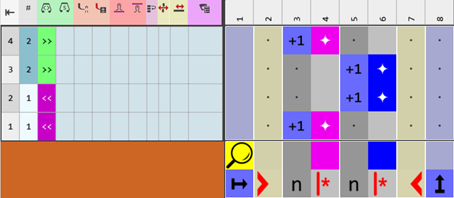

Color Arrangement CA#2 (alternative) |
|
|
- 24
- Check the generated Color Arrangement on correct entries with the Verificar button.: The knitting procedure cannot be checked!
- 25
- If necessary, in case of a Color Arrangement already used in the design pattern, apply the changes to the basic pattern with the Aplicar button.
- or -
Close the tool window with button. - 26
- Close the prompt with the desired button:
-
Save: Color Arrangement is saved locally in the CA tool window.
- Reject: The changes will not be saved.
-
Copy: The changed Color Arrangement is saved as copy in the CA tool window.
- 27
- If necessary, enter the CA#2 via the control column into the desired rows of the design pattern.: Only enter, if you want to use both CA's within one pattern.
- 28
- Click the
Guiahilos button under Vista previa in the Inicio ribbon. - The document window is opened as view and the Guiahilos ribbon appears.
- 29
- Open the dialog box via
Mostrar guiahilos. - 30
- If necessary, make the desired settings for allocating yarn carriers.
- 31
- Start the
Procesamiento
técnico:
Show the
Vista del tejido procesado.
|

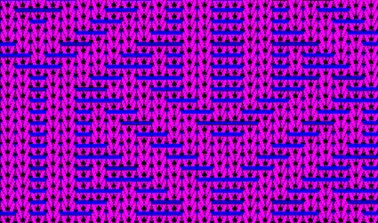

Fabric View CA#1 + CA#2 |
|
|
- 32
- Generate
Sintral. - 33
- Start the
Control Sintral. - 34
-
Extraer the knitting program. - A program for the knitting machine will be created: CMS530W.Pattern-17.zip.
- Load knitting program into the machine.
: The extracted file CMS530W.Pattern-17.zip can be loaded onto the machine with an USB stick or via Ethernet.
