Step by Step to 'Pattern-1'

A pattern project with one pattern and the desired settings is created.

1: To draw select any desired drawing tool under the Dibujar group.

2: ----------------------------------------

3: Carry out Procesamiento técnico if necessary.
: After carrying out the Procesamiento técnico you are able to view and weigh up the result of the automatic processing, if corrections / optimizations are necessary.

4: Back to the Muestra de diseño to make pattern-related changes.

5: Open the Guiahilos tool window for this purpose.

6: In the Parámetros de color table make the desired changes in the following groups, if necessary:

Entrar/salir tejiendo
Ligamento de intarsia
Procesamiento de bordes

7: If desired, make the desired presets in the following control columns:

Longitud de malla (NP)
Estirador principal (WMF)
Velocidad (MSEC)

8: If necessary, make the desired presets for combining yarn carriers in the Más ajustes tab of the Configuración dialog box.

Several yarn carriers are combined in one system by the technical processing (knitting sequence) to optimize the production time.

:
The yarn carriers will be combined only if this is possible based on the color field distances.
The result is visible in the Vista de símbolos after the technical processing.

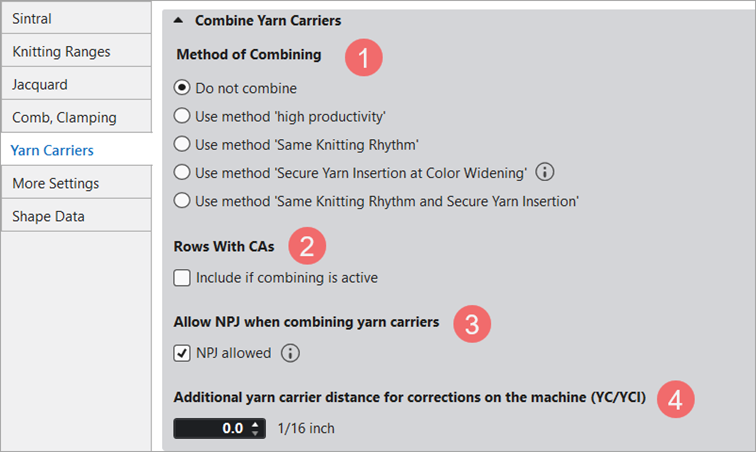

Options in the Configuración dialog box

1: In the ribbon select the Configuración button.

The dialog box appears.

2: Select the Más ajustes tab.

3: Make the desired presettings for the Agrupar guiahilos.

Inserción del hilo:
Inserción del hilo segura al ensanchar el color is active (standard)


1	Inserción del hilo
			No agrupar (Default setting)
			No automatic combining of the yarn carriers. : High run time because of regular knitting process for Intarsia: Nice, uniform binding at the color field borders
		Estándar
		Automatic combining of the yarn carriers, where the result cannot be influenced. : Shortest run time with possible problems with the Intarsia binding (tuck) at the color field border.

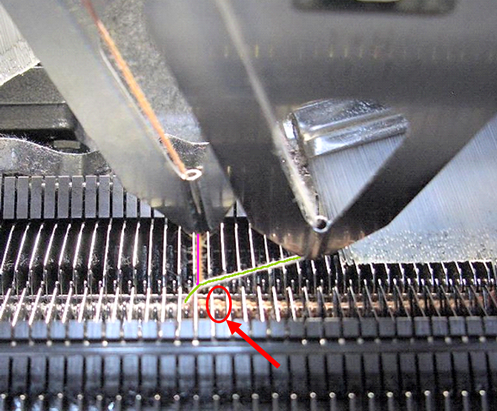

		Inserción del hilo segura al ensanchar el color
		Automatic, uniform combining of the yarn carriers with an optimized knitting process for secure yarn insertion with the tuck binding. : Uniform Intarsia binding will be achieved at the color field border. Reduced run time without problems with the Intarsia binding (tuck)
2	Permitir NPJ al agrupar guiahilos
		NPJ permitido (default setting) Result: Two color areas can be combined by the technical processing, due to the distances and the differently defined stitch tensions (NP).
		NPJ permitido is disabled Result: Two color areas could be combined due to the distances. Due to the differently defined stitch tensions (NP), these color fields are not combined by the technical processing.
3	Distancia de guiahilos adicional para correcciones en la máquina (YC/YCI)
	1/16 pulgadas			Adjust the safety distance in order to make corrections on the machine (YC/YCI in the setup). Default value: 0 : You can specify a shorter yarn carrier distance especially with coarser gauges.

9: Start the Procesamiento técnico.
With the button, show Symbol view after technical processing.

The yarn carriers are automatically combined after the set specifications and the Intarsia rules (constructive facts of the Intarsia yarn carriers on the machine).
