Step by Step to 'Pattern-5'

  1. A pattern project with one pattern and the desired settings is created.
    1
    To draw select any desired drawing tool under the Dibujar group.
    2
    In the Colores de muestra tool window, select the desired pattern colors from the Colores de hilo color palette to draw the motif:
    3

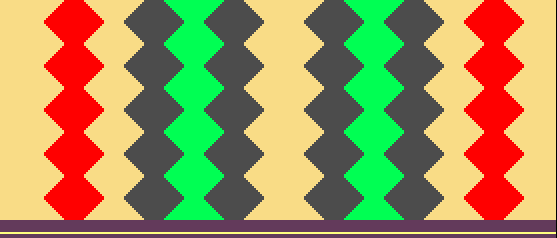

    Draw the desired motif in the Muestra de diseño.
    4
    Draw additional yarn colors for the inverse plating area in the design pattern.
    : The corresponding yarn colors for creating the plating colors must be available for each inverse plating area.
    5
    Open the Colores de vanisado dialog box with in the Colores de muestra tool window.
    6
    In the tool window, enter the yarn colors used for area 1 in row P1 under columns A and B.
    7
    Paste the used yarn colors in exchanged order under P2.

: The exchange of yarn colors in the Colores de vanisado tab determines the change (inverse plating) of the yarn carriers.

    8
    Use the same procedure with the corresponding yarn colors to create the plating colors P3 and P4 for area 2.
    9
    Open the Plating Offset (YPI) table.
  1. The Offset de vanisado (YPI) tab of the Parámetros de muestra dialog box appears.
    2. 10
    Select YPI index (1) and assign it to both yarn colors in column A for P1 and P2.
    11
    Select YPI index (2) and assign it to both yarn colors in column B for P1 and P2.
    12
    Enter the settings for the selected YPI indices in the table.
    13
    Create two new entries for the use with the plating colors P3 and P4 in the Usuario table of the Offset de vanisado (YPI) tab.
    14
    Use the same procedure to allocate the new YPI indices to the plating colors P3 and P4.



Inverse plating (with system change)

For the so called Inverse Plating (with system change), a different plating color is required for each color change.



    15

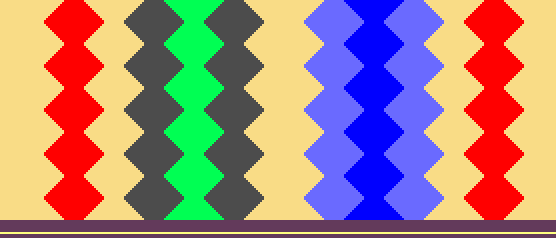

    Draw the plating colors P1 + P2 into area 1 (left) of the design pattern.
    16
    Draw the plating colors P3 + P4 into area 2 (right) of the design pattern.
    17
    If desired, define a cycle for length control in the control column.
    18

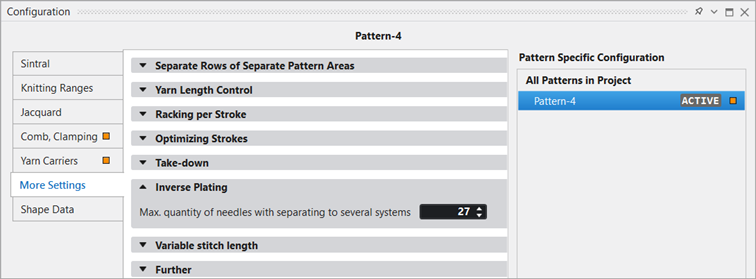

    If desired, modify the value under Vanisado inverso in the Más ajustes tab of Configuration:

Maximum quantity of needles with separating knitting rows to several systems.

: The default setting depends on the gauge: = 2 inch minus one needle.

    19
    Make the desired settings in the Guiahilos tool window.
    20
    Make the desired setting at Agrupar guiahilos in the Más ajustes tab of the Configuración dialog box.
    21
    Enable the 'split' system function in the machine attributes if desired.
    22
    Carry out all the steps of processing.

: The extracted file ADF530-32W.Pattern-5.zip can be loaded onto the machine with an USB stick or via Ethernet.
