Step by Step to 'Pattern-15'

A pattern project with one pattern and the desired settings is created.

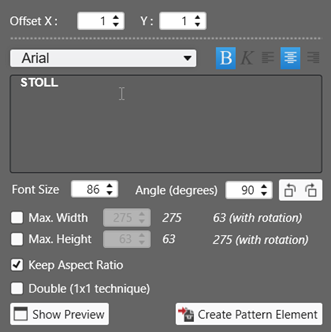

1: Create the motif using the Texto drawing tool and any desired yarn color (e.g. #3).
: This yarn color serves as a search color for transferring stitches. At this point, the weft yarn is at the top.

2: Create a pattern element by Crear parte de muestra and draw it into the Muestra de diseño.

3: Open the tool window Colores de vanisado with in the Colores de muestra tool window.

4: Create a plating color in line P1 of the Colores de vanisado tool window:

In column A:

Yarn Color #3
The symbol via the selection menu for the weft yarn carrier

In column B:

Yarn color e.g. #1

In column C:

Additional yarn color e.g. #2

5: Create the plating color for the start in line P2.

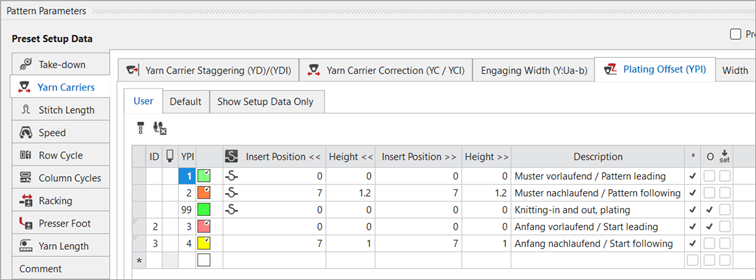

6: Select the desired YPI indices from the Offset de vanisado (YPI) table and allocate them.

7: Select the total height of the design pattern in the Pasada de muestra control column.
: If necessary, knit-off 2 pattern rows at end with yarn color #1.

8: Call up the context menu and select Selección / Generar Color Arrangement... .

The Color Arrangement editor appears with the default CA.

9: Make the desired changes in the Color Arrangement:

In the processing area:

Draw needle action Malla v - Malla ^ together with the plating color P1 into existing rows.
Add additional rows for half Milano and draw-in the Malla atrás needle action with any desired yarn color.
Add additional rows for Transferencia hacia atrás.

Modifications in Control Columns:

Control column Dirección del carro
Control column Sistema
Control column Prensador W
Control column Corrección de prensador
Allocate a new stitch length index to the DJ row via the Longitud de malla anterior (NPv) control column.
Allocate a new stitch length index to the DJ row via the Longitud de malla posterior (NP^) control column.

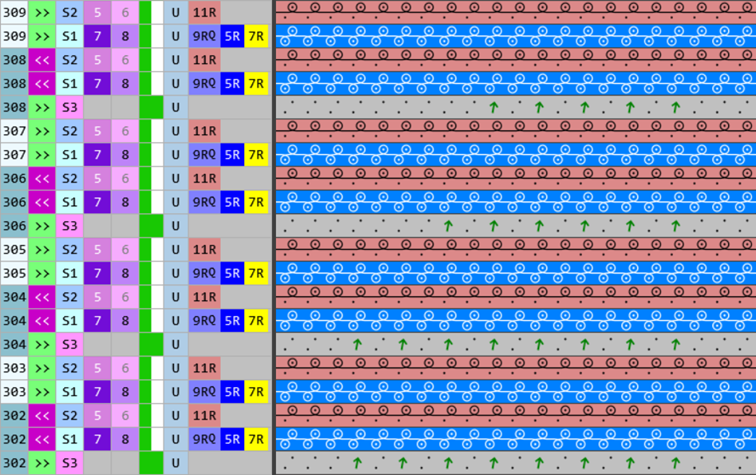

Color Arrangement CA1

10: Check the generated Color Arrangement on correct entries with the Verificar button.
: The knitting procedure cannot be checked!

11: Open the Start, Tubular (modified) knitting element.

12: Draw the plating color P2 into the knitting rows.

13: If necessary, make the desired settings in the Guiahilos tool window.

14: If desired, make the desired presets in the following control columns:

Longitud de malla (NP)
Estirador principal (WMF)
Velocidad (MSEC)

15: Carry out all the steps of processing.


Yarn Carrier 9RQ	Weft yarn carrier Q ahead of system S1
Yarn Carrier 5b	The yarn carrier with yarn color #1 of the plating color P1 knits by system S1
Yarn Carrier 7R	The yarn carrier with yarn color #2 of the plating color P1 knits by system S1
Yarn Carrier 11R	The yarn carrier with yarn color #4 for the half Milano stitch knits by system S2

: The extracted file "ADF530-32W.Pattern-15.zip" can be loaded onto the machine with an USB stick or via Ethernet.
