Step by Step to 'Pattern-16'

  1. A pattern project with one pattern and the desired settings is created.
    1
    To draw select any desired drawing tool under the Dibujar group.
    2
    In the Colores de muestra tool window, select the desired pattern colors from the Colores de hilo color palette to draw the motif:
    3
    Draw and select the desired motifs for the pattern elements in the Muestra de diseño.
    4
    Open the context menu -> Selección -> Crear parte de muestra... .

Pattern Element 1

Pattern Element 2

For drawing the outer contour with any yarn color

: Draw with this used yarn color at the outer edge of the area for the selective weft yarn. With any desired stepping.

To fill the outer contour drawn with pattern piece 1.

: Create pattern element 2 with the yarn color from pattern element 1 (weft yarn) and any other yarn color.

    5
    Draw the motif using the pattern elements in the Muestra de diseño.
    Example:
    6
    Select the height of the motif in the Pasada de muestra control column.
    7
    Call up the context menu and select Selección / Generar Color Arrangement... .
  1. The Color Arrangement editor appears with the default CA.
    2. 8

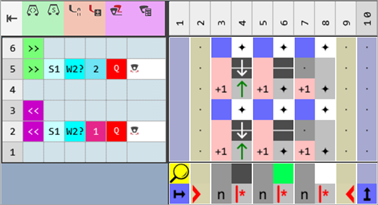

    Make the desired changes in the Color Arrangement:

Color Arrangement CA1

    9
    Check the generated Color Arrangement on correct entries with the Verificar button.
    : The knitting procedure cannot be checked!
    10
    Open the Configuración dialog box -> Más ajustes tab -> Further section.
    11
    Enable the Activar procesamiento de bordes de hilo de trama option.
  1. The color fields (areas) with weft yarn are adapted throughout the pattern by the technical processing depending on the carriage direction.
    The weft yarn will be enclosed by transfer or shortened at the border of the color field.

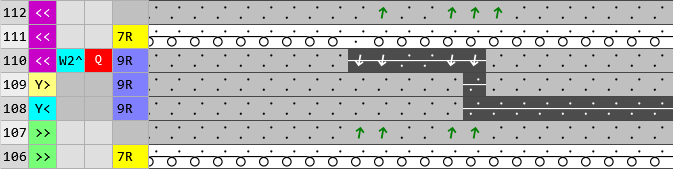

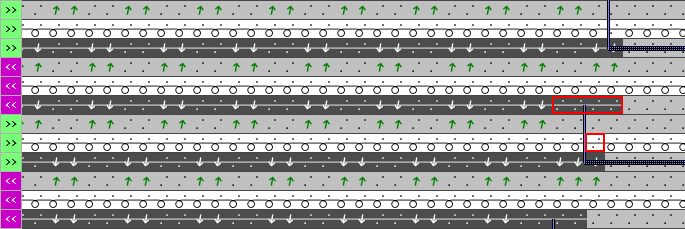

Result without Weft Yarn Border Processing

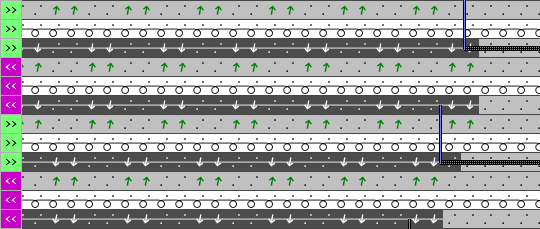

Result with Weft Yarn Border Processing

  • A float is inserted at the point where the yarn carrier stops (swivels) so that the weft thread cannot be caught.
  • The following widening will be shortened.

: The appearance at the edge is changed by the weft yarn border processing, as the last needle must enclose (bind in) by transfer the weft yarn at the edge of the area with selective weft insertion.

Function of Weft Yarn Border Processing:

For patterns with the machine with presser feet and selective weft yarn, the border of the area for the weft yarn (color field) must be corrected. The border processing (correction) ensures to catch and keep deep the weft yarn by the presser foot in the reversal of the weft yarn carrier. The border processing will be done within the whole pattern.

:

  • The border processing depends on the carriage direction.
  • No border processing will be entered for weft yarn insertion over the complete pattern width.

Required for Weft Yarn Border Processing:

  • The yarn carrier is defined by the symbol as a weft yarn carrier.
  • The rows for the weft inlay must have the Weft yarn / Transferring with Float needle action.
  • The presser foot must be activated in this row of weft inlay.
    12
    Make the settings for knitting-in and out the yarn carriers in the Guiahilos tool window:

Knitting-in and out a weft yarn carriers of patterns without structure (SJ):

Front stitch (SJ) only is knitted in the basic pattern next to the area with the selective weft yarn. With it, the weft yarn carrier can be knit out or in easily by the Hilo flotante needle action.

: A weft yarn is knitted-in out out with the Hilo flotante needle action, as a weft yarn usually has a different yarn thickness.

  1. The basic pattern without structure (SJ) but with the area for selective weft yarn is drawn and the color arrangement is created.
    1
    Make presettings in the Guiahilos tool window:
  • Knitting-in:
    • Column Módulo para pasadas de entrada: Module Hilo flotante, Entrar tejiendo
    • Nudos / Ligamento, Entrar tejiendo column: Module Ligamento Hilo flotante, Entrar tejiendo
  • Knitting-out:
    • Módulo para pasadas de salida column: Module Hilo flotante, Salir tejiendo
    • Nudos / Ligamento, Salir tejiendo column: Module Ligamento Hilo flotante, Salir tejiendo
    2
    Close the dialog box.

Result after technical processing:

Knitting-in and out a weft yarn carriers of patterns with structure:

A structure (e.g. border) is knitted in the basic pattern next to the area with the selective weft yarn. With it, knitting in or out the weft yarn carrier may make problems. You can fix the problem by locking the weft yarn at the border when knitting in or out.

  1. Pattern-16 is duplicated.
  2. The Color Arrangement is created.
    3
    Draw the 1x1 border at left and right.
    4
    Modify the pattern rows of knitting-in and knitting-out:
  • Yarn color #4 (green) from the pattern border up to the start of the area with selective weft yarn (rear weft yarn)
  • Yarn color #2 (black) on the desired quantity of needles (front weft yarn) at the fabric selvedge.

At the beginning of the pattern area for knitting-in from the right

At the end of the pattern area for knitting-out to the right

    5
    Make presettings in the Guiahilos tool window:
  • Knitting-in:
    • Column Módulo para pasadas de entrada: Module Hilo flotante, Entrar tejiendo
    • Nudos / Ligamento, Entrar tejiendo column: Module Ligamento Hilo flotante, Entrar tejiendo
  • Knitting-out:
    • Módulo para pasadas de salida column: Module Hilo flotante, Salir tejiendo
    • Nudos / Ligamento, Salir tejiendo column: Module Ligamento Hilo flotante, Salir tejiendo
    6
    Close the dialog box.

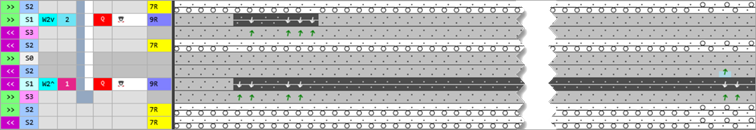

Result after technical processing:

    13
    If desired, make the desired presets in the following control columns:
    14
    Carry out all the steps of processing.

: The extracted file "ADF530-32W.Pattern-16.zip" can be loaded onto the machine with an USB stick or via Ethernet.
