Change the default settings for the main take-down (WMF)
Change the specifications for the main take-down in the pattern:
- You see and change the default settings for the main take-down in the
Dessin de conception. - The
Tirage principal (WMF) control column is displayed.
- 1
- Open the existing Projet de dessin and save it with a new name via the Fichier / Enregistrer sous menu.
- or -
Create new Projet de dessin with an individual pattern. - 2
- In the document window Dessin de conception, position the cursor on the Tirage principal (WMF) control column and click the RMB.
- or -

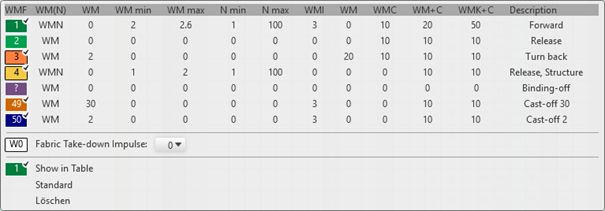

Open the context menu in the second row of the table header containing the default settings with RMB. - The context menu for the Tirage principal (WMF) appears.
- The fabric take-down functions (WMF) used in the pattern are displayed and are marked by the
symbol. - The entries marked as favorites in the Tirage principal (WMF / WBF) / Par défaut tab under the Tirage section of the Pattern Parameters
tool window are displayed.
- 3
- Select the desired main take-down value and enter it in the control column.
- or -
Fill a selection.
The main take-down values (WMF) displayed in the context menu correspond to the table in the Pattern Parameters
tool window in the Tirage principal (WMF) section of the Utilisateur tab.
