Working with the Speed (MSEC) tab

I. Open Speed (MSEC) tool window and select / change an entry:

  1. Dessin de conception is selected.
  2. The Vitesse (MSEC) control column is displayed.
    1
    Open the selection list in the Accueil ribbon at Fenêtre Outils and select Pattern Parameters .
    - or -
    click the Pattern Parameters icon directly under Paramètre.
  1. The Pattern Parameters tool window appears.
    2. 2
    Select the Vitesse (MSEC) section.
    3
    Par défaut tab
    - or -
    Select Utilisateur.
    4
    Select the desired speed value in the column and enter it in the control column.
  1. The default setting will be overwritten in these design rows.

Options in the toolbar

Selecting the default value to enter in the control column

Deleting an entry in the control column

Show Pattern-related Values

Hide Pattern-related Values

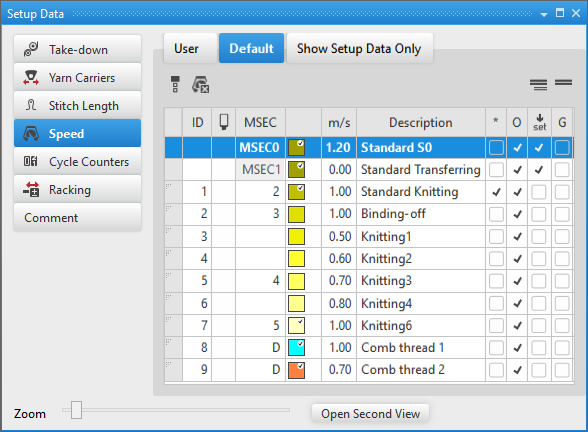

Column labels of the Speed (MSEC) tool window

Column

Display

ID / IDv / ID^

Consecutive numbering and sorting of the entries

Selecting the speed value to enter it in the control column

MSEC

Index for indirect allocation of the speed

Color

Display of colors to enter in the control columns

m/s

Value for the speed

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Par défaut table available.

Entry is defined as favorite, meaning the entry is available within the Utilisateur table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Standard)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Par défaut or Utilisateur table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Par défaut or Utilisateur table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

II. Specify favorites:

  1. Dessin de conception is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Vitesse (MSEC) section.
    3
    Select the Par défaut tab.
    4
    Mark the desired entry in the * column .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the speed.

III. Add a new entry in the speed (MSEC) tab:

New entries can only be added in the Utilisateur tab.

  1. Dessin de conception document window is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Vitesse (MSEC) section.
    3
    Select the Utilisateur tab.
    4
    Set the cursor in the left table column to the * row.
    5
    Call up the Ajouter une ligne... context menu.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

The changes will be saved to the *.spf file when saving the project.

IV. Apply entry of the Speed (MSEC) tab to the pattern:

  1. The Dessin de conception document window is selected.
  2. The Vitesse (MSEC) control column is displayed.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Vitesse (MSEC) section.
    3
    Select the Utilisateur tab.
    4
    Select the desired speed value in the column.
    5
    Enter the selected speed value in the control column.

More optional control columns:
