Step by Step to Pattern-1

  1. A pattern project with one pattern and the desired settings is created.
    1
    Work with the following drawing tools:

While drawing with drawing tools without the selection of a pattern color, a
selection is generated.
It can be deleted with the shortcut Ctrl+D.

  • Deleting all cursor attributes: Key ESC
  • Deleting of individual cursor attributes with X via the corresponding attribute

Effacer la couleur

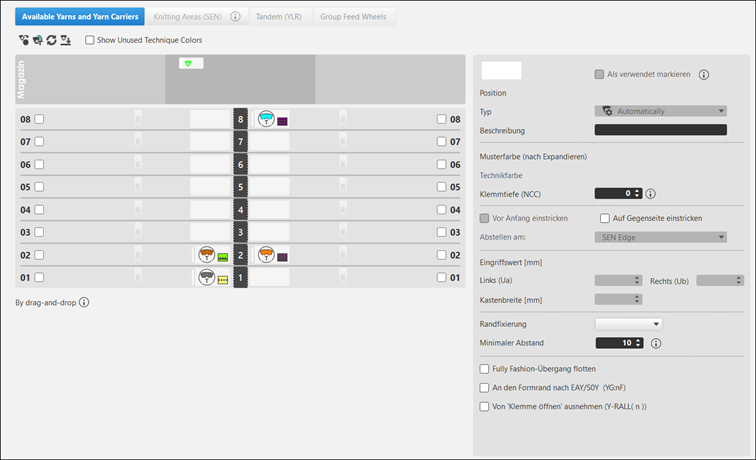

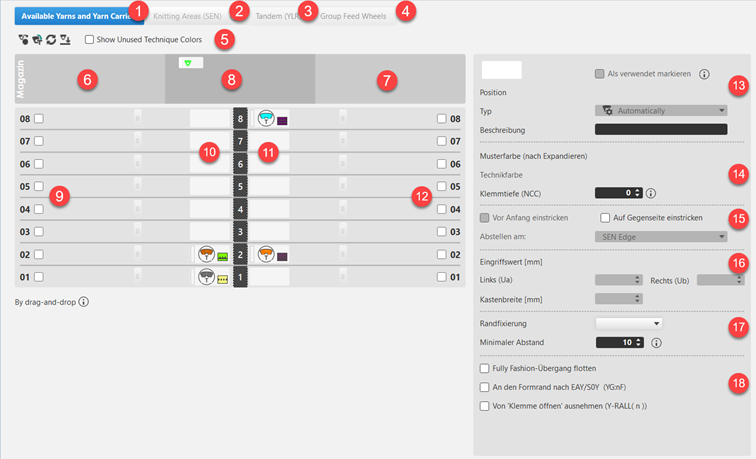

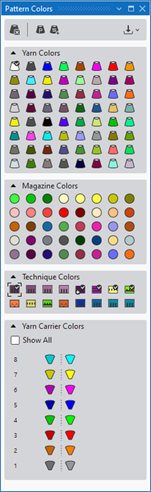

For drawing the design pattern, with it several yarn carriers may be necessary for each yarn color.

  • Bobbin with color
    Not used within design pattern
  • Bobbin with color +
    Used within design pattern

: Yarn carriers will not be allocated automatically to a yarn carrier rail.
Yarn carrier home position can be determined automatically.

    2
    Change the width and height of the pattern.
    3
    Draw-in colored stripes in any yarn color from row 27 at the height of 18 rows.
    4
    Adjust the view of the control columns.

Displaying the control columns in the document window

  • The control columns can be displayed in every document window.
    • Afficher les colonnes de commande (TAB)
    • Masquer les colonnes de commande (TAB)
  • The control columns are divided into colored groups.

View Options of the Control Columns:

  • Afficher les colonnes de commande utilisées
  • Ne pas afficher de colonne de commande
  • Afficher toutes les colonnes de commande
  • Colonnes de commande définies par l'utilisateur
    • Project Layout
    • User Layout

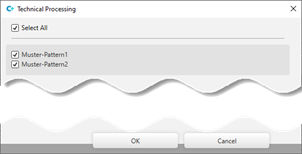

Overview of all possible control columns after technical processing

:

  • Before technical processing:
    • The pattern row numbers are displayed in the column.
  • After technical processing:
    • The technical row number is displayed in the column.

Table header:

1 .

Symbols to identify control columns

2.

Default settings from global file STOLL for the respective control column with a new pattern project

:

  • No Entry
    No default settings for this control column
  • Colored entry
    STOLL Default Setting
    This default setting is displayed more transparent in every pattern row and used by the Élaboration.
    • Change of the Stoll default setting in the table header:
      Change valid for all pattern rows in the selected pattern
      : It is not automatically applied in other patterns.
    • The change in the desired pattern rows:
      The change overwrites the default setting in the desired pattern rows with the selected entry (= colored entry)

Group 1

Rangée du dessin

Display the consecutive numbering of the pattern rows.

: If a pattern row consists of several rows (technical rows), the pattern row number is visible multiple times.

Numéro de ligne du jacquard

Display the Jacquard line number.

: Available after Élaboration.

Numéro de ligne Sintral

Display the Sintral line number.

: Available after Élaboration.

Group 2

Numéro de chariot

Display stroke number

: Is determined by Élaboration.

Course

Specifications for defining the carriage stroke

Direction du chariot

Presets of the carriage direction

: Is determined by Élaboration.

Système

Presets of the use of knitting systems

: Is determined by Élaboration.

Fonction système

With the use of special cams

  • Holding-deep
  • Knitting via split curve
  • Not Sunken Tuck
  • Devoré
  • FlexPly

Group 3

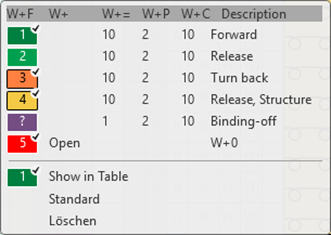

Tirage principal (WMF)

Presets for comb, main take-down and auxiliary take-down

Ouvrir le tirage principal (=W= / =C=)

Tirage auxiliaire (W+F)

Peigne

Group 4

Contrôle du bac collecteur (LK / LW)

Presets for the control of the collecting area

: Is only displayed with machines with control of the collecting area.

Tâteur tricot (WS)

Specifications for the fabric sensors

: is only displayed for the CMS 9xx

Group 5

Vitesse (MSEC)

Presets for carriage speed

Machine en vitesse lente (ML)

Arrêt de la machine (MS)

Group 6

Longueur de la maille avant (NPv)

Presets for the stitch length on front and rear needle bed

Longueur de la maille arrière (NP^)

Group 7

Rapport (RS)

Specifications for cycles for length control

  • Inner cycles
  • Outer cycles

Group 8

Fixation du bord

Presets for the border fixation

Group 9

Instruction Sintral / PRINT

Presets for the Sintral and PRINT command

Appel de fonction (F:)

Presets for function calls and additional commands

Group 10

Fin du tricotage

Presets for knitting-out all the yarn carriers of a common row

Color Arrangement

Color entry for Color Arrangements in use

Entrelacement intarsia

Presets for the tuck binding with intarsia / gore in a common row

Group 11

Report d'environnement

Preset for transferring of the whole pattern or in a defined areas

Report à plusieurs systèmes

Module Arrangement

Color entry for Module Arrangements in use

Démaillage et report

Preset for combining transferring and casting-off in a common technical row of the whole pattern or in a defined areas

Group 12

Trier les rangées techniques

Specifications for

  • Sorting of rows
  • Weft yarn insertion with CMS 330 / 530

Group 13

Tricoter dans le chevalement (VJA^)

Specifications for jacquard selection at the rear needle bed

Type de chevalement (VN, VU, V#)

Preset of racking type

  • Normal racking (N)
  • Half racking (#)
  • Transfer racking (U)

valeur de chevalement

Specification of the racking step for the rear needle bed

Correction du chevalement (VCI)

Preset for racking corrections

Group 14

Échelonnement des guide-fils (YD/YDI)

Presets of yarn carrier staggering on the fabric selvedge for Setup

Correction des guide-fils (YC/YCI)

Presets of yarn carrier corrections for Setup

Spécifications des guide-fils

Specifications for

  • Swiveling of I yarn carriers
  • Clamp of yarn carriers
  • Open Clamp
  • Stop at the SEN edge
  • Waiting position of the yarn carriers

Guide-fil

Column for display of all relevant yarn carrier data after Élaboration

Two modes to enter data in the control columns:

In the Accueil ribbon under Dessiner.

  • 1 clic
    Press LMB at start position and hold it until the end position.
  • 2 clics
    Click and release LMB at start position and click it again at the end position.

Two modes to delete data in the control columns:

In the Accueil ribbon under Remplir.

  • Delete All from Control Column (except racking)
    Supprimer
  • All Control Columns to Default
    Par défaut

The procedure for multiple entries in control columns:

  • Rapport (RS)
  • Spécifications des guide-fils
  • Arrêt des guide-fils

Add an entry to an existing entry:

  • Add
    With the Ctrl key
    • Select the desired location in the menu:
    • Set cursor to the start position.
    • Press the CTRL key.
    • Press LMB and hold it until the end position.
    • Release the left mouse button.
  • Add
    With the Ctrl key
    • Select the desired location in the menu:
    • Set cursor to the start position.
    • Press the CTRL key.
    • Click left mouse button.
    • Draw the cursor to the end position.
    • Click left mouse button again.

Delete Entry:

  • Delete
    With the CTRL + ALT key
    • Set cursor to the start position.
    • Press LMB and hold it until the end position.
    • Release the left mouse button.
  • Delete
    With the CTRL + ALT key
    • Select the desired location in the menu:
    • Set cursor to the start position.
    • Press the CTRL + ALT keys.
    • Click left mouse button.
    • Draw the cursor to the end position.
    • Click left mouse button again.

Selecting Control Columns

    1
    Position the cursor in the header of the control columns and press the right mouse button to open the context menu.
  1. The context menu appears.
    2. 2
    Select the desired control columns in the context menu via Colonnes de commande définies par l'utilisateur.
    3
    Open the context menu with RMB.
    4
    Select Enregistrer la représentation par défaut pour les dessins de conception in the menu.
  1. The setting will be saved and loaded when opening a design pattern.

Viewing Options of Control Columns

Colonnes de commande définies par l'utilisateur

Adding or closing the desired control columns in the selection list

Afficher les colonnes de commande utilisées

Display of the control columns used in the pattern

Afficher toutes les colonnes de commande

Display of all control columns

Ne pas afficher de colonne de commande

Hide the display of control columns

Fixer cette colonne de commande (double click)

Freezed control columns keep visible when hiding control columns
Identification of freezed control columns by a point

: Unfreezing by Masquer ce groupe or Masquer cette colonne de commande

Masquer cette colonne de commande

Hide control columns at the cursor position.

Masquer ce groupe

Hide all control columns allocated to a group.

Enregistrer la représentation par défaut pour les dessins de conception

Save the selected control columns as user defined default for editing the design pattern.

Charger la représentation par défaut pour les dessin de conception

Restore the customized default for editing the design pattern.

Restaurer la représentation sur défaut STOLL

Restore the saved STOLL default setting.

    5
    Change the following pattern parameters using the control column in the colored stripe:
    1
    Position the cursor on the desired or control column.
    2

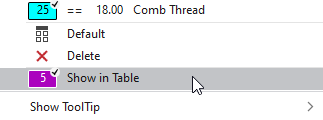

    Open the context menu with RMB and select Afficher dans le tableau .

    - or -
    Select directly from the list of the Favoris.
  1. The Pattern Parameters dialog box appears.
    2. 3
    Open the Par défaut tab.
    - or -
    Open the Utilisateur tab.
    4
    Select the desired existing entry from the tables.
    - or -
    In the Utilisateur tab position the cursor in the first column and select Ajouter une ligne... in the context menu.
  2. New entry is added at the end of the table.
    3. 5
    Make the desired presettings for the entries in use:
  • Define NP index.
  • Change Color.
  • Enter NP value.
  • Enter the description.
    6
    In the desired area of the control column enter the color of the stitch length.

Change the specifications for the stitch lengths in the pattern:

  1. See and modify the default settings for the stitch lengths in the Dessin de conception.
  2. The Longueur de la maille avant (NPv) / Longueur de la maille arrière (NP^) control columns appear.
    1
    Open the existing Projet de dessin and save it with a new name via the Fichier / Enregistrer sous menu.
    -  or  -
    Create new Projet de dessin with an individual pattern.
    2
    Set the cursor to the Longueur de la maille avant (NPv) / Longueur de la maille arrière (NP^) control columns of the Dessin de conception document window and click the RMB.
    -  or  -
    Open the Longueur de la maille (NP) context menu in the second row of the table header containing the default settings.

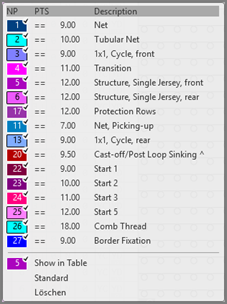

  1. The stitch lengths context menu appears.
  • The stitch lengths used in the pattern are displayed and are marked by the symbol.
  • The entries marked as favorites in the Longueur de la maille (NP) / Par défaut tab under the Longueur de la maille section of the Pattern Parameters tool window are displayed.
    3
    Select the desired stitch length and enter it in the control column.
    -  or  -
    Fill a selection.

Notice:

The stitch lengths shown in the context menu correspond to the table in thePattern Parameters tool window under the Longueur de la maille section of the Longueur de la maille (NP) / Utilisateur tab.

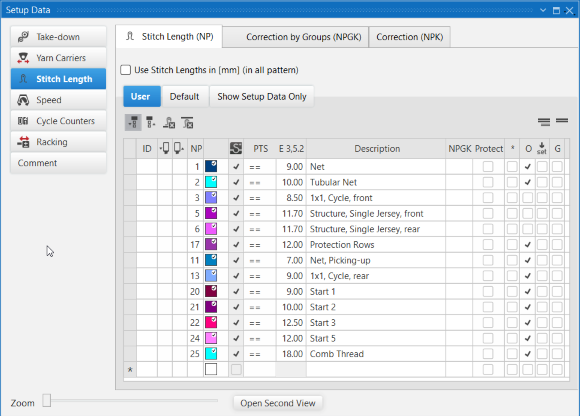

Open stitch length tab and select or change an entry:

  1. Dessin de conception is selected.
    1

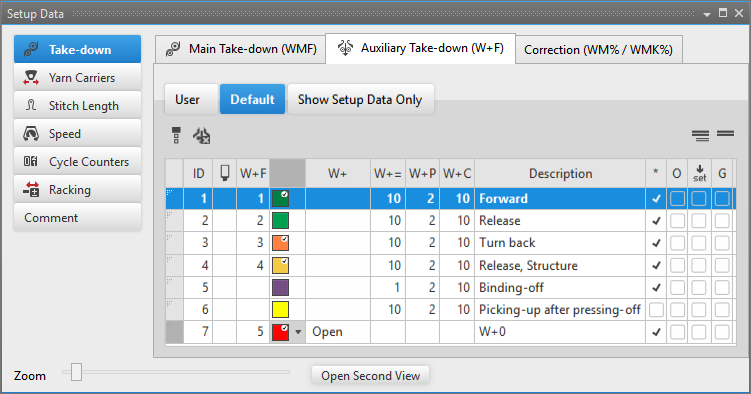

    Select Pattern Parameters in the Accueil ribbon at Paramètre.

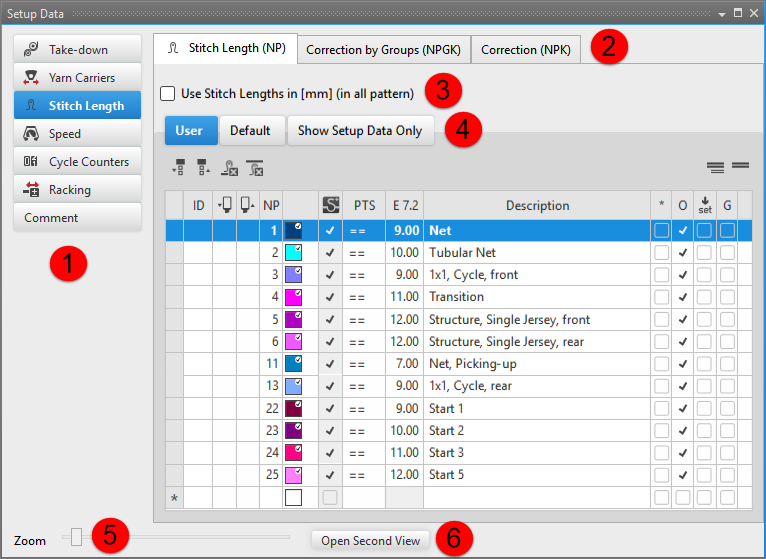

  1. The Pattern Parameters tool window appears.

1

All sections of Machine Parameters appear in Setup

2

Tabs for additional machine parameters

3

Use stitch length values in the STOLL default unit

Use stitch length values in millimeters

4

Tabs

Utilisateur

  • Stitch lengths used in the pattern
  • Stitch lengths marked as favorites

Par défaut

All the stitch lengths of the STOLL template

Afficher uniquement les données de Setup
[Name of the active document]

All the stitch lengths used in the pattern

: These data will be saved to the setup file.

5

Zoom

Zoom in or out

6

Ouvrir la deuxième vue

Opening an additional Pattern Parameters tool window.

    2
    Select the Longueur de la maille section.
    3
    Select the Longueur de la maille (NP) / Par défaut tab.
    4
    Select the desired stitch length in the or column of the table and insert it in the control column.
  • Longueur de la maille avant (NPv)
    Click the stitch length in the column.
  • Longueur de la maille arrière (NP^)
    Click the stitch length in the column.
  • Longueur de la maille avant (NPv) and Longueur de la maille arrière (NP^)
    Click the stitch lengths with the CTRL key in the and columns.

The default settings in the control columns of these design rows will be overwritten.

Options in the toolbar

Selecting the default value to enter in the control column

Selecting the default value to enter in the control column

Deleting an entry in the control column

Deleting an entry in the control column

Show Pattern-related Values

Hide Pattern-related Values

Column labels of the stitch length tool window

Column

Display

ID / IDv / ID^

Consecutive numbering and sorting of the entries

Selecting stitch length for the front needle bed to enter it into the control column and as PTS into the pattern

Selecting stitch length for the rear needle bed to enter it into the control column and as PTS into the pattern

NP

Input and display of the index for the indirect (NPn=1-500) or direct (D) stitch length allocation

Colors

Display of colors to enter in the control columns

PTS

Specification for NPJ or PTS (Power Tension Setting).

Gauge E

List of stitch length values depending on the gauges of the selected machine

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Par défaut table available.

Entry is defined as favorite, meaning the entry is available within the Utilisateur table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Default)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Par défaut or Utilisateur table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Par défaut or Utilisateur table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

Specify the favorites:

  1. Dessin de conception is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Longueur de la maille section.
    3
    Select the Longueur de la maille (NP) / Par défaut tab.
    4
    Mark the desired entry in the * column .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the front or rear stitch length.

Add a new entry in the stitch length tab:

: New entries can only be added in the Utilisateur tab.

  1. Dessin de conception is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Longueur de la maille section.
    3
    Select the Longueur de la maille (NP) / Utilisateur tab.
    4
    Set the cursor in the left table column to the * row.
    5
    Call up the Ajouter une ligne... context menu.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Add entry of the Stitch Lengths (NP) tab to the pattern:

  1. Dessin de conception is selected.
  2. The control columns for Front Stitch Length and Rear Stitch Length are displayed.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Longueur de la maille section.
    3
    Select the Longueur de la maille (NP) / Utilisateur tab.
    4
    Select the desired stitch length in the or column:
  • Entry in the control column:
    Click on the stitch length in the column.
  • Entry in the control column:
    Click on the stitch length in the column.
  • Entry in the and control column
    Click on the stitch lengths with the CTRL key in the and columns.
    5
    Enter the stitch length in the control column.
    6
    If necessary, change more pattern parameters, e.g. in the colored stripe, via the control columns:

Change the specifications for the main take-down in the pattern:

  1. You see and change the default settings for the main take-down in the Dessin de conception .
  2. The Tirage principal (WMF) control column is displayed.
    1
    Open the existing Projet de dessin and save it with a new name via the Fichier / Enregistrer sous menu.
    - or -
    Create new Projet de dessin with an individual pattern.
    2
    In the document window Dessin de conception, position the cursor on the Tirage principal (WMF) control column and click the RMB.
    - or -
    Open the context menu in the second row of the table header containing the default settings with RMB.
  1. The context menu for the Tirage principal (WMF) appears.
  • The fabric take-down functions (WMF) used in the pattern are displayed and are marked by the symbol.
  • The entries marked as favorites in the Tirage principal (WMF / WBF) / Par défaut tab under the Tirage section of the Pattern Parameters tool window are displayed.
    3
    Select the desired main take-down value and enter it in the control column.
    - or -
    Fill a selection.

: The main take-down values (WMF) displayed in the context menu correspond to the table in the Pattern Parameters tool window in the Tirage principal (WMF) section of the Utilisateur tab.

Select an entry of the Main Take-down (WMF) tool window and change it:

  1. Dessin de conception is selected.
  2. The Tirage principal (WMF) control column is displayed.
    1
    Open the Pattern Parameters tool window.
    Accueil ribbon -> Tool Windows -> Pattern Parameters selection menu
    -  or  -
    Parameters ribbon group-> Pattern Parameters .
  1. The Pattern Parameters tool window appears.
    2. 2
    Select the Tirage section.
    3
    Tirage principal (WMF) / Par défaut tab
    - or -
    Select Utilisateur.
    4
    Select the desired main take-down value in the column and enter it in the control column.
  1. The default setting in the control column will be overwritten in these design rows.

Options in the toolbar

Selecting the default value to enter in the control column

Deleting an entry in the control column

WMF

Hide the display of the columns wit the main take-down values for the Multiflex take-down

Show the display of the columns wit the main take-down values for the Multiflex take-down

WBF

Hide the display of the columns wit the take-down values for the belt take-down

Show the display of the columns wit the take-down values for the belt take-down

Show Pattern-related Values

Hide Pattern-related Values

Column labels of the main take-down (WMF) tool window

Column

Display

ID / IDv / ID^

Consecutive numbering and sorting of the entries

Selecting the main take-down value to enter it in the control column

WMF / WBF

Index for indirect allocation of the fabric take-down value for the main take-down Multiflex or belt take-down

Color

Display of colors to enter in the control columns

WM(N)

WM

Fabric take-down value when this is not changed in accordance with the quantity of needles.

WMN

Fabric take-down value when this is changed in accordance with the quantity of needles (fabric width).

WM

Fabric take-down value when this is not changed in accordance with the quantity of needles.

WM min

Fabric take-down value for minimum fabric width

WM max

Fabric take-down value for maximum fabric width

N min

Quantity of needles for minimum fabric width

N max

Quantity of needles for maximum fabric width

WMI

Fabric take-down impulse value

WM^

Specification of a number of degrees for the reverse rotation of the take-down

WMC

Value for the sensitivity of the stop motion control of the main take-down

WM+C

Specification of the system number for the fabric take-down control

WMK+C

Specification of the system number for comb monitoring

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Par défaut table available.

Entry is defined as favorite, meaning the entry is available within the Utilisateur table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Default)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Par défaut or Utilisateur table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Par défaut or Utilisateur table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

Specify the favorites:

  1. Dessin de conception is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Tirage section.
    3
    Select the Tirage principal (WMF) / Par défaut tab.
    4
    Mark the desired entry of the table in the * column as .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the main take-down.

Add a new entry in the main take-down (WMF) tab:

: New entries can only be added in the Utilisateur tab.

  1. Dessin de conception is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Tirage section.
    3
    Select the Tirage principal (WMF) / Utilisateur tab.
    4
    Set the cursor in the left table column to the * row.
    5
    Call up the Ajouter une ligne context menu.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Add entry of the Main take-down (WMF) tab to the pattern:

  1. Dessin de conception is selected.
  2. The Tirage principal (WMF) control column is displayed.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Tirage section.
    3
    Select the Tirage principal (WMF) / Utilisateur tab.
    4
    Select the desired main take-down value in the column.
    5
    Enter the selected main take-down value in the control column.

Change specifications for the auxiliary take-down in the pattern:

: In the Auxiliary take-down (W+F) control column the value W+F1 is entered by default and the value is set to 'Don't Care'. This allows for activating / deactivating the auxiliary take-down at the machine.

  1. You see and change the default settings for the auxiliary take-down in the Dessin de conception.
  2. The Auxiliary take-down (W+F) control column is displayed.
    1
    Open the existing Projet de dessin and save it with a new name via the File / Save as… menu.
    -  or  -
    Create new Projet de dessin with an individual pattern.
    2
    In the document window Dessin de conception, position the cursor on the Auxiliary take-down (W+F) control column and click the RMB.
    -  or  -
    Open the Auxiliary take-down context menu in the 2nd row of the table header containing the default settings with RMB.
  1. The context menu for the auxiliary take-down (W+F) appears.
  • The auxiliary take-down functions (W+F) used in the pattern are displayed and are marked by the symbol.
  • The entries marked as favorites in the Tirage auxiliaire (W+F) / Par défaut tab under the Tirage section of the Pattern Parameters tool window are displayed.
    3
    Select the desired auxiliary take-down value and enter it in the control column.
    -  or  -
    Fill a selection.

: The auxiliary take-down values (W+F) shown in the context menu correspond to the table in the Pattern Parameters tool window under the Tirage section of the Tirage auxiliaire (W+F) / Utilisateur tab.

Select an entry of the Auxiliary Take-down (W+F) tool window and change it:

  1. Dessin de conception document window is selected.
  2. The Tirage auxiliaire (W+F) control column is displayed.
    1
    Open the selection list in the Accueil ribbon at Tool Windows and select Pattern Parameters .
    - or -
    Directly under Paramètre click the Pattern Parameters icon.
  1. The Pattern Parameters tool window appears.
    2. 2
    Select the Tirage section.
    3
    Tirage auxiliaire (W+F) tab / Par défaut
    - or -
    Select Utilisateur.
    4
    Select the desired auxiliary take-down value in the column and enter it in the control column.
  1. The default setting will be overwritten in these design rows.

Options in the toolbar

Selecting the default value to enter in the control column

Deleting an entry in the control column

Show Pattern-related Values

Hide Pattern-related Values

Column labels of the auxiliary take-down (W+F) tool window

Column

Display

ID

Consecutive numbering and sorting of the entries

Selecting the speed value to enter it in the control column

W+F

Index for indirect allocation to the auxiliary take-down

Color

Display of colors to enter in the control columns

W+

Open or close the auxiliary take-down

W+=

Speed of auxiliary take-down

W+P

Value for the contact pressure of the auxiliary take-down (CMS 822 only)

W+C

Specification of the system number for the auxiliary take-down control

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Par défaut table available.

Entry is defined as favorite, meaning the entry is available within the Utilisateur table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Default)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Par défaut or Utilisateur table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Par défaut or Utilisateur table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

Specify the favorites:

  1. Dessin de conception is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select Tirage section -> Tirage auxiliaire (W+F) tab.
    3
    Select the Par défaut tab.
    4
    Mark the desired entry in the * column .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the speed.

Add a new entry in the auxiliary take-down (W+F) tab:

: New entries can only be added in the Utilisateur tab.

  1. Dessin de conception document window is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Tirage section.
    3
    Select the Tirage auxiliaire (W+F) / Utilisateur tab.
    4
    Set the cursor in the left table column to the * row.
    5
    With the RMB open the context menu and select Add row.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Apply entry of the Auxiliary take-down (W+F) tab to the pattern:

  1. Dessin de conception document window is selected.
  2. The Auxiliary take-down (W+F) control column is displayed.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Tirage section.
    3
    Select the Tirage auxiliaire (W+F) / Utilisateur tab.
    4
    Select the desired auxiliary take-down value in the column.
    5
    Enter the selected auxiliary take-down value in the control column.

Change the specifications for the carriage speed in the pattern:

  1. See and modify the default settings for the stitch lengths in the Dessin de conception.
  2. The Vitesse (MSEC) control column is displayed.
    1
    Open the existing Projet de dessin and save it with a new name via the Fichier / Enregistrer sous menu.
    - or -
    Create new Projet de dessin with an individual pattern.
    2
    In the document window Dessin de conception, position the cursor on the Vitesse (MSEC) control column and click the RMB.
    - or -
    In the 2nd row of the table header, open the context menu containing the default settings with RMB.
  1. The context menu for the Vitesse (MSEC) appears.
  • The speed functions (MSEC) used in the pattern are displayed and are marked by the symbol.
  • The entries marked as favorites in the Pattern Parameters tool window under the Vitesse section of the Par défaut table are displayed.
    3
    Select the desired main take-down value and enter it in the control column.
    - or -
    Fill a selection.

: The speed values (MSEC) displayed in the context menu correspond to the values of the Vitesse section in the Utilisateur tab of the Pattern Parameters tool window

Select an entry of the Speed (MSEC) tool window and change it:

  1. Dessin de conception is selected.
  2. The Vitesse (MSEC) control column is displayed.
    1
    Open the selection list in the Accueil ribbon at Fenêtre Outils and select Pattern Parameters .
    -  or  -
    click the Pattern Parameters icon directly under Paramètre.
  1. The Pattern Parameters tool window appears.
    2. 2
    Select the Vitesse (MSEC) section.
    3
    Par défaut Tab
    - or -
    Select Utilisateur.
    4
    Select the desired speed value in the column and enter it in the control column.
  1. The default setting will be overwritten in these design rows.

Options in the toolbar

Selecting the default value to enter in the control column

Deleting an entry in the control column

Show Pattern-related Values

Hide Pattern-related Values

Column labels of the Speed (MSEC) tool window

Column

Display

ID / IDv / ID^

Consecutive numbering and sorting of the entries

Selecting the speed value to enter it in the control column

MSEC

Index for indirect allocation of the speed

Color

Display of colors to enter in the control columns

m/s

Value for the speed

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Par défaut table available.

Entry is defined as favorite, meaning the entry is available within the Utilisateur table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Default)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Par défaut or Utilisateur table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Par défaut or Utilisateur table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

Specify the favorites:

  1. Dessin de conception is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Vitesse (MSEC) section.
    3
    Select the Par défaut tab.
    4
    Mark the desired entry in the * column .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the speed.

Add a new entry in the speed (MSEC) tab:

: New entries can only be added in the Utilisateur tab.

  1. Dessin de conception document window is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Vitesse (MSEC) section.
    3
    Select the Utilisateur tab.
    4
    Set the cursor in the left table column to the * row.
    5
    Call up the Ajouter une ligne... context menu.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Apply entry of the Speed (MSEC) tab to the pattern:

  1. The Dessin de conception document window is selected.
  2. The Vitesse (MSEC) control column is displayed.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Vitesse (MSEC) section.
    3
    Select the Utilisateur tab.
    4
    Select the desired speed value in the column.
    5
    Enter the selected speed value in the control column.
    7
    Import the existing sleeve shape and position it.

: If the basic pattern is too small for the shape, then the size of the basic pattern will be automatically adjusted to the size of the shape.
Attention: Perhaps the color strap needs to be adapted.

    8
    Open the line table by the Yableau des lignes button to get an explanation of a shape.

Structure of a basic shape

A

Starting line

B

Area with shape modification because of widening

C

Area without shape modification

D

Area with shape modification because of narrowing

E

End line

Recommendation:
Create a shape of an even numbered height in total.

Fading-out

Exchange of the knitting mode at the shape edges

While cutting out the shape, the knitting mode is replaced at the shape edges.

1

Cutting-out the shape

  • Grey area = Outside shape
  • White area = Within shape

: This results in the shape edges for fading-out, widening, and narrowing.

2

Marked area (blue):

  • Fade-out width
    Number of stitches, that should be replaced with a different knitting mode.
  • Fade-out content
    Selection of the desired knitting mode for the specified fading-out width

Widening

Widening of a fabric piece

1

Step width of widening

: Widening by 1 needle only

2

Step height of widening

= Number of rows between two widening steps

: Step height is as desired.

Widening Width

Depending from the selected widening module

: When widening by 1 needle with the Augmentation, par défaut module, the widening width is 1 by default.

Narrowing

Narrowing of a fabric piece

: The transfer of stitches results in double stitches (fashioning marks).

1

Step Width

  • 1 needle (stitch) narrowing
  • 2-needle-narrowing (stitches)
  • 3-needle-narrowing (stitches)
  • From a narrowing greater than 4 needles (stitches) a binding-off is carried out

2

Step height

= Number of rows between two narrowing steps

: Step height is as desired.

Narrowing Width

Depending on the knitting mode of the basic pattern

Rules for a raglan sleeve shape in the SJ knitting mode

Shape Attributes

Rules

Knitting Mode

Single Jersey

Step width of widening

1 needle (stitch) per knitting row

Step height of widening

As desired

Quantity of rows without shape modification

As desired

Step width when narrowing

1 - 3 needles (stitches)

Step height when narrowing

As desired

Narrowing Width

As desired

Fading-out Width

As desired

Knitting mode for fading-out

Front Stitch with Transfer (default)

    9
    Click the Guide-fil button under Prévisualisation in the Accueil ribbon.
  1. The New Pattern xx document window is opened as view and the Guide-fil ribbon appears.

Yarn Carrier Color as Background

Switching the view between the different pattern colors

: Only with certain pattern colors available.

Show Knitting-out

inactive

Knitting-out of the yarn carriers is not displayed in the graphic.

Active

Knitting-out of the yarn carriers is displayed in the graphic.

: The knitting-out is displayed as marking with specified direction at the corresponding side of the area.

    10
    Open the tool window with the Guide-fil button -> Afficher le guide-fil -> Fils et guide-fils disponibles tab

    11
    Select the desired yarn carrier.
    12
    Make the following changes:
    13
    Apply the changes:
    Modifier group -> Accepter
    - or -
    Modifier group -> Accepter et fermer

Synchroniser

Accepte les modifications du dessin de conception dans la vue Guide-fil ouverte et synchronise les deux vues sur l'état de dessin actuel.

Accepter

Accepte les modifications pour les guide-fils dans le dessin de conception. Les autres modifications (paramètres couleur par ex.) sont aussitôt effectives.

Accepter et fermer

Accepte les modifications pour les guide-fils dans le dessin de conception et ferme la vue. Les autres modifications (paramètres couleur par ex.) sont aussitôt effectives.

Annuler et fermer

Rejette les modifications et ferme la vue Guide-fils.

Close with Annuler et fermer if you only opened the Yarn Carrier view for control.

Explanation of the Guide-fil tool window:

1

Fils et guide-fils disponibles Tab

5

Returning yarn carriers to the magazine according to their position at the left or right side of the yarn carrier rails.

: Yarn carriers of the pattern only - excepting the yarn carrier colors which are firmly allocated to a certain rail.

Allocating the yarn carriers for technique colors to the yarn carrier rails according to the standard preallocation.

Returning yarn carriers from the yarn carrier rails to the magazine as 'undefined'.

: Yarn carrier of the pattern only.

Allocating the yarn carriers from the magazine to the yarn carrier rails.

Afficher les couleurs techniques non utilisées

In the view of the yarn carrier rails, only the technique colors used in the pattern are displayed.

In the view of the yarn carrier rails, the technique colors not used in the pattern are displayed as well.

6

Display of the yarn carriers for yarn and magazine colors regarding the positioning on the left side during rail allocation.

: Yarn carriers not yet allocated to a yarn carrier rail but will be positioned on the left side when allocating.

7

Display of the yarn carriers for yarn and magazine colors regarding the positioning on the right side during rail allocation.

: Yarn carriers not yet allocated to a yarn carrier rail but will be positioned on the right side when allocating.

8

Display of the yarn carriers for yarn and magazine colors undefined.

: The yarn carriers have no allocation to a rail nor to a side (left/right)

9 / 10

Release for allocation of the rail with a yarn carrier left / right

No release for allocation of the rail with a yarn carrier left / right

10 / 11

Graphic presentation of the yarn carrier rails with the used yarn carrier types on the left / right side and specification of the corresponding colors.
This results in the yarn carrier home position left / right.

Input panel for the selected yarn carrier

13

Set as Used

Yarn carrier position is free for allocation

Yarn carrier position is not free for allocation

: For example when inserting Sintral functions where yarn carriers are used.

Position

Specification of the yarn carrier position of a yarn carrier color

Type

Description

Comment on a yarn carrier

: Is entered in Sintral in the table of the yarn carriers.

14

Couleur de dessin (après élargissement)

Display of the pattern color of the selected yarn carrier

Couleur technique

Display of the technique color of a selected technical yarn carrier

Clamping Depth

Needle sinking of clamping and cutting needle
Command: NCC=n (n= -10 to 10)

15

Tricoter en entrée avant le début

Selected yarn carrier is not knit-in in the Knitting-in before start function.

Selected yarn carrier is knit-in in the Knitting-in before start function.

Tricoter en entrée sur le côté opposé

A yarn carrier remains on the corresponding side based on its home position.

A yarn carrier is knitted before the start to the opposite side of its home position.

: Use:
With MC with single-sided clamping / cutting.

Arrêter le :

  • Bord de la forme
  • SEN Edge

16

Valeur de prise [mm]

À gauche (Ua)

Engaging width for the left side

À droite (Ub)

Engaging width for the right side

Largeur de la boîte [mm]

Specification depending on the yarn carrier type specified under Type

: No entry possible!

17

Fixation du bord

Selection of the knitting mode for the border fixation (module)

Distance minimale

Distance for the border fixation in rows

18

Flotter la transition Fully Fashion

At the end a yarn carrier is moved to the home position according to the setting in the Yarn Field Allocation.

At the end a yarn carrier is moved to its home position without knitting.

: Use:
For technical fabrics with weft yarn.

Au bord de forme après EAY/S0Y (YG:nF)

The yarn carrier will not be positioned at the counters #L and #R.

The yarn carrier will be positioned at the counters #L and #R and follows the shape.

Exclure de 'Ouvrir la pince' (Y-RALL( n ))

Selected yarn carrier is controlled by the Y-RALL function.

Selected yarn carrier will be excluded from the Y-RALL function and can be defined differently by the value (rows) at Color Parameters under .

: By default, the clamp will be opened by the Y-RALL function for all yarn carriers after about 25 rows.

Additional tabs:

2

Zones de tricotage (SEN)

Working with several SEN areas:

  • Machines without comb
  • Machines with comb but without using it

3

Tandem (YLR)

Change of the yarn carrier home position with tandem machines

4

Regrouper les fournisseurs

Use when working with feed wheels

: For the use of the feed wheels, you have define them in the Configuration dialog box -> Attributs de machine tab under Fournisseurs électroniques.

    14
    Open the Expanded Symbol View with the Icône button as preview if necessary to check the design pattern before further editing.
      - and / or -
    Open the expanded fabric view with the Tricot button

Expanded Symbol View

  1. The desired pattern is selected.
    1
    Click the Prévisualisation button in the ribbon under Icône.

: An additional document window appears with the expanded view of the design pattern.

    2
    Close the document window with in the Pattern name... tab.

Design Pattern

Expanded Symbol View

: The expanded symbol view opened via Icône button is write protected.

Vue Tricot élargie

  1. The desired pattern is selected.
    3
    Click the Prévisualisation button in the ribbon under Tricot.

: An additional document window appears with the fabric view of the design pattern.

    4
    Close the document window by in the pattern name... tab.

Fabric View

Options in the status bar

Déployé

Show Vue Tricot élargie with knitting rows and not knitting rows (transfer, cast-off, etc.)

Comprimé

Show Vue Tricot élargie only with knitting rows

Calculer le retard

Calculate the stitch distortion in order to get a realistic fabric view.

Affichage en fonction de la densité de maille

Show Vue Tricot élargie with the specified stitch ratio

Ne pas défaire les mailles coulées

Drop stitches are displayed.

Afficher les rangées de protection

Display of the protection rows

Tirer me fil de séparation

Display of the draw thread

Texture du fil

View of the selected yarn texture from the Yarn Explorer

Fond

Set background color for Vue Tricot élargie

: The fabric view opened with the Tricot button is write protected.

    15
    Start Technical Processing:

: Tip
Open the yarn carrier path in the "Technical View" :
The yarn carrier for the protection thread 1 (#205) will be clamped after the start and at the end brought in again in the protection rows in the Flottage, verrouillage, lisière module from Configuration.

Technical processing of an individual pattern:

    1
    Select the desired pattern for the technical processing in the Dessin ribbon under Accueil .
    - or –
    Open the desired pattern in the Dessin tool window double clicking.
    2
    Start the technical processing for the selected pattern by the button in the Accueil ribbon under Technique.

: The result is shown in the pattern name... document window by an unprotected symbol view.

    3
    Close the document windows with in the Pattern name... tab of the document windows.
    : The data will not get lost and can at any time be shown and edited in a document window by the Icône button.
  1. The success of technical processing is shown by in the Dessin tool window behind the pattern name.

Technical Processing successfully performed

Outdated technical processing

: Changes in the design pattern discard the already performed technique processing.

Presentation of the views

Design Pattern

Processed Symbol View

(not write-protected)

Before Technical Processing:
Only knitting rows will be displayed in the design pattern.

After Technical Processing:
The knitting rows and the transfer rows will be displayed in the symbol view.
The data contained in the modules such as racking specifications, fabric take-down, carriage direction, etc. will be entered in the corresponding control columns.

: The pattern will completely be processed and checked by all technical rules.

: You can open a write-protected display of stitches (Fabric View) after the technical processing by the Tricot button.

: Changes will be overwritten by re-processing .

Multiple Selection of Patterns for Technical Processing:

You can select several patterns for technical processing to start it more quickly.

  1. Several patterns are created.
    1
    Click the Élaboration button in the Start ribbon under Élaboration multiple.
  1. The Élaboration technique dialog box appears.
    2. 2
    Select the desired setting.

: You cannot start the technical processing for patterns greyed-out as data may be missing.

    3
    Close the dialog box with OK.
  1. The technical processing is done automatically and shown by in the Dessin tool window.
    2. 4
    Close the document windows by in the pattern name... tab of the document windows.
    : The data will not get lost and can at any time be shown and edited in a document window by the Icône button.
  1. Successful processing is shown in the Dessin tool window by behind the pattern name.
    16
    Generate Sintral.

Generate knitting program for a single pattern:

  1. Pattern is successfully processed.
    1
    Select the desired pattern in order to create it for the knitting program in the Accueil ribbon under Dessin .
    - or –
    Open the desired pattern in the Dessin tool window double clicking.
    2
    Start the technical processing by the button in the Sintral ribbon.
  1. The *.sin; *.jac and *.setx files will be generated for the current patten.

The elements of the program are displayed by the following buttons:

Sintral

Displaying the Sintral file

Jacquards

Displaying the packed Jacquard file

Configuration MC

Displaying the Setup file

Generate knitting programs for several patterns:

: You can select several patterns for the Créer le programme de tricotage procedure to start it more quickly.

  1. Several patterns or an order with several patterns is created and the technical processing is carried out for all patterns.
    1
    Click the Créer le programme de tricotage button in the Démarrage ribbon under Élaboration multiple.
  1. The Créer le programme de tricotage tool window is displayed.
    2. 2
    Select the desired setting.
  2. You cannot start the Créer le programme de tricotage processing for patterns greyed-out as data may be missing.
    3. 3
    Close the dialog box with OK.
  1. The processing step is automatically done for the selection and the patterns are marked with symbol in the Dessin tool window.
    17
    Start Sintral Check

Sintral Check for a single pattern:

  1. The Créer le programme de tricotage processing step was performed so that the *.sin / *.jac / *.setx files are created for one pattern.
    1
    Select the desired pattern for the Sintral Check in the Accueil ribbon under Dessin .
    - or –
    Open the desired pattern in the Dessin tool window double clicking.
    2
    Start the Sintral Check with the Contrôle du Sintral button.
  1. The Contrôle du Sintral dialog box appears.
    2. 3
    Start the simulation by the START button.
  1. The Simulation OK message appears
    4
    Close the dialog box with X.
    5
    Continue with the next pattern.

Run the Sintral Check for several patterns (multiple selection):

You can select several patterns for the processing step

Sintral Check, to start it more quickly.

  1. Several patterns or an order with several patterns is created and processing steps are carried out until Créer le programme de tricotage.
    1
    Click the Contrôle Sintral... button in the Démarrage ribbon under Élaboration multiple.
  1. The Contrôle Sintral tool window is displayed.
    2. 2
    Select the desired setting.

: You cannot start the Sintral Check for greyed-out patterns as data may be missing.

    3
    Close the dialog box with OK.
  1. The processing step is automatically done for the selection and the patterns are marked with symbol in the Dessin tool window.
    18
    Extract knitting program.
  1. A program for the knitting machine will be created: CMS530.Pattern-1.zip.

Extract an individual pattern (*.zip) and save it:

  1. The Créer le programme de tricotage processing step was performed so that the *.sin / *.jac / *.setx files are created for one pattern.
  2. Sintral Check was done.
    1
    Select the desired pattern in order to extract it in the Accueil ribbon under Dessin .
    - or –
    Open the desired pattern in the Dessin tool window double clicking.
    2
    Click the Extraire button in the Démarrage ribbon under Sintral.
  1. The Enregistrer sous dialog box will appear.
    2. 3
    Change file name if desired.
    4
    Select the desired path for the *.zip file.
  • Local Drive
  • USB Memory Stick
  • Network Drive
    5
    Close the dialog box with the Enregistrer button.
  1. After saving it, the zip file can be loaded and knitted on the machine.

Multiple selection of patterns or orders to create knitting programs:

You can select several patterns or orders for the processing step Extraire..., to start it more quickly.

  1. Several patterns are created.
  2. The processing steps up to Créer le programme de tricotage, even up to Contrôle Sintral... are done.
    1
    Click the Extraire button in the Démarrage ribbon under Élaboration multiple.
  1. The Search Folder dialog box will be opened.
    2. 2
    Select an existing folder.
    - or –
    Create a new folder under the desired path by the Create folder button.
    3
    Select the folder.
    4
    Close the dialog box with OK.
  2. Note appears: Following files successfully extracted:
  3. You cannot start the Extraire... processing step for greyed-out patterns / orders as data may be missing.
    4. 5
    Close the dialog box with OK.
  1. The extracted knitting programs are available in the folder and can be loaded on the machine.
    19
    Load knitting program into the machine.

: The extracted file CMS530.Pattern-1.zip can be loaded onto the machine with an USB stick or via Ethernet.
